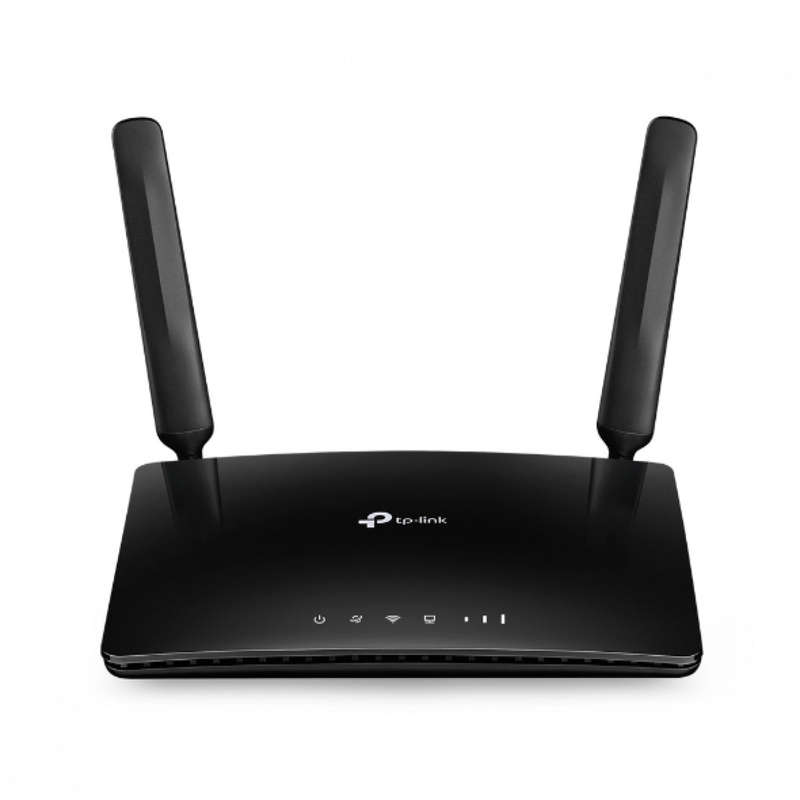

AC1200 Wireless Dual Band 4G LTE Router
Archer MR400
Cutting-edge 4G network share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
AC1200 Wi-Fi creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
Plug a SIM card and play no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
4G LTE with AC1200 Wi-Fi to Stream from Everywhere
AC1200 Wireless Dual Band 4G LTE Router - Archer MR400
Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you're at home or working remote.
Internet Access for
up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Easy Setup and Management
Set up the Archer MR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
Specifications
Hardware Features
Interface : 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
Button : WPS/Reset Button, WiFi On/Off Button, Power On/Off Button
External Power Supply : 12V/1A
Dimensions ( W x D x H ) : 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
Antenna : V2: 2 Internal 4G LTE Antennas
V3/V1: 2 Detachable 4G LTE Antennas
Wireless Features
Wireless Standards : IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency : 2.4GHz and 5GHz
Signal Rate : 300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity :
5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm
Transmit Power : CE:
Wireless Functions : Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type (V2)
Network Type :
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
Software Features
Quality of Service : Bandwidth Control
Operating Modes : 3G/4G Router, Wireless Router
WAN Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management : Access Control, Local Management, Remote Management,reboot schedule
DHCP : Server, Client, DHCP Client List, Address Reservation
Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS : DynDns, NO-IP
VPN : PPTP VPN, IPSec VPN , OpenVPN
Access Control : Parental Control, Local Management Control
Firewall Security : DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols : Supports IPv4 and IPv6
Guest Network : 2.4GHz guest network x 1, 5GHz guest network x 1
IPSec VPN : Supports up to 10 IPSec VPN tunnels
Others
Certification : CE, RoHS
System Requirements :
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10
MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0,
Safari 4.0 browsers or higher, or other Java-enabled browsers
Micro SIM Card
Environment :
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box
AC1350 Wireless Dual Band 4G LTE Router, Archer MR400
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Micro to Standard SIM Card Adapter
Nano to Standard SIM Card Adapter
