Ultra-fast Wi-Fi 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity
High gain antennas Improved range, signal quality and transmission performance
MU-MIMO Delivers highly efficient wireless connection
Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
WPS Button - Easy wireless security encryption at the push of the WPS button
Specifications
Hardware Features
Interface : USB 3.0
Button : WPS button
Dimensions ( W x D x H ) : 3.64×1.24×0.55 in. (92.47×31.55×13.9mm)
Antenna : 2 High Gain External Antennas
Antenna Type : Omni Directional
Wireless Features
Wireless Standards IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency : 5GHz, 2.4GHz
Signal Rate:
5GHz
11ac: Up to 867Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 400Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
5GHz?
11a 6Mbps: -91dBm
11a 54Mbps: -77dBm
11nHT20?-74dBm
11nHT40?-71dBm
11ac HT20: -70dBm
11ac HT40: -66dBm
11ac HT80: -62dBm
2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -74dBm
11n HT20: -72dBm
11n HT40: -70dBm
Transmit Power : Wireless Modes : Ad-Hoc / Infrastructure mode
Wireless Security : Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology : DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
Others
Certification : CE, FCC, RoHS
System Requirements : Windows 10/8.1/8/7/XP, Mac OS X 10.9-10.13
Environment :
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box

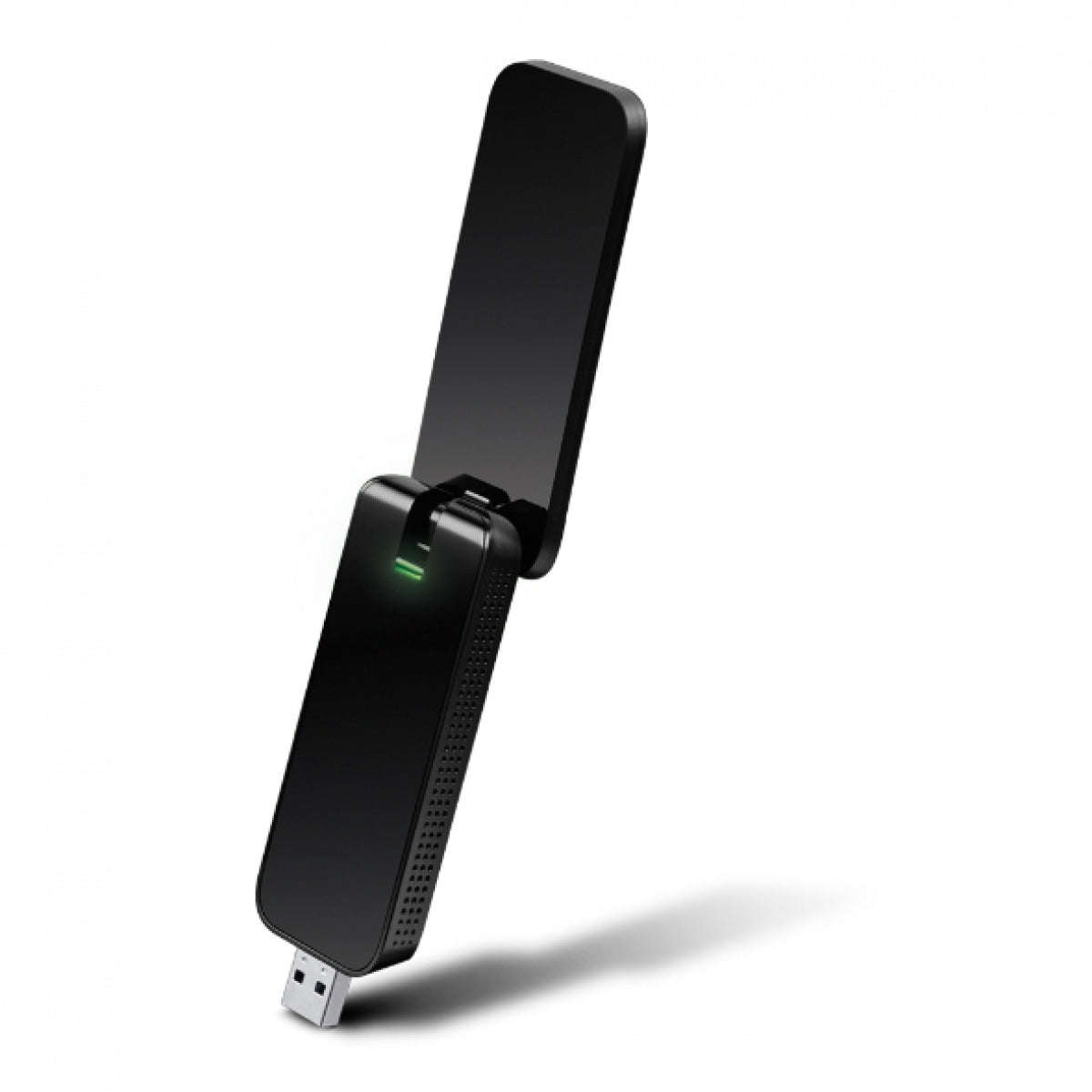

AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U
Quick Installation Guide
Resource CD
