Brand New & Sealed with Manufacturer Warranty

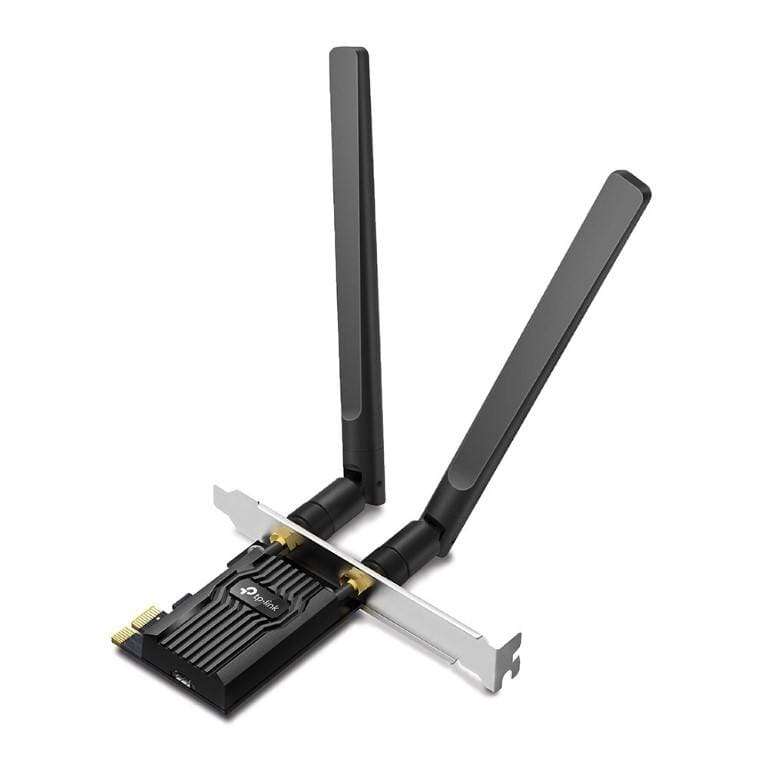

TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Features:
Easily Get Start with Wi-Fi 6
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

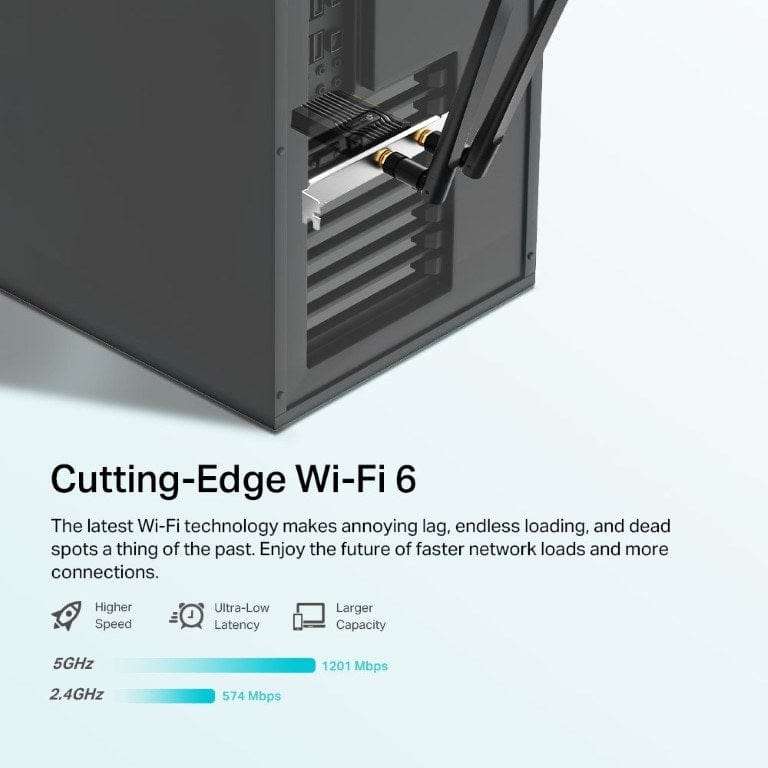

Wi-Fi 6 Upgrades Everything
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

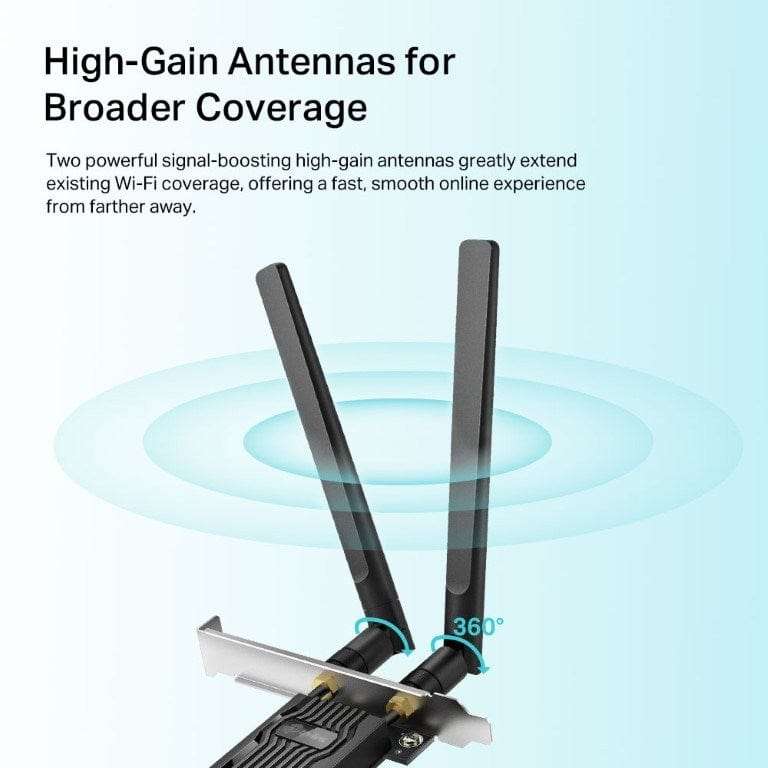

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2x faster and coverage 4x broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.
Technical Specification
Hardware Features
Dimensions (W × D × H)
4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm)
Antenna
Two High-Gain Dual-Band Antennas
Chipset
Realtek Wi-Fi 6 Chipset
Wireless Features
Wireless Standards
IEEE 802.11ax/ac/n/a (5 GHz)
IEEE 802.11ax/n/g/b (2.4 GHz)
Bluetooth 5.2
WLAN Signal Rate
5 GHz
11ax: Up to 1201 Mbps (dynamic)
11ac: Up to 867 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: Up to 54 Mbps (dynamic)
2.4 GHz
11ax: Up to 574 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)
WLAN Reception Sensitivity
5 GHz
11ax HE80: -57.0 dBm
11ax HE40: -60.0 dBm
11ax HE20: -63.0 dBm
11ac VHT80: -59.5 dBm
11ac VHT40: -62.5 dBm
11ac VHT20: -67.5 dBm
11n HT40: -69.5 dBm
11n HT20: -72.5 dBm
11a 54 Mbps: -74.0 dBm
11a 6 Mbps: -94.5 dBm
2.4 GHz
11ax HE40: -60.0 dBm
11ax HE20: -63.0 dBm
11n HT40: -69.5 dBm
11n HT20: -72.5 dBm
11g 54 Mbps: -74.0 dBm
11b 11 Mbps: -88.0 dBm
WLAN Transmit Power
5 GHz: 27 dBm (FCC) / 23 dBm (CE) (EIRP)
2.4 GHz: 25 dBm (FCC) / 20 dBm (CE) (EIRP)
WLAN Modes
Infrastructure mode
Wireless Security
64/128-bit WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1X
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Others
Certification
CE, FCC, RoHS
System Requirements
Windows 11/10 (64-bit only)
Environment
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
What's in the Box:
