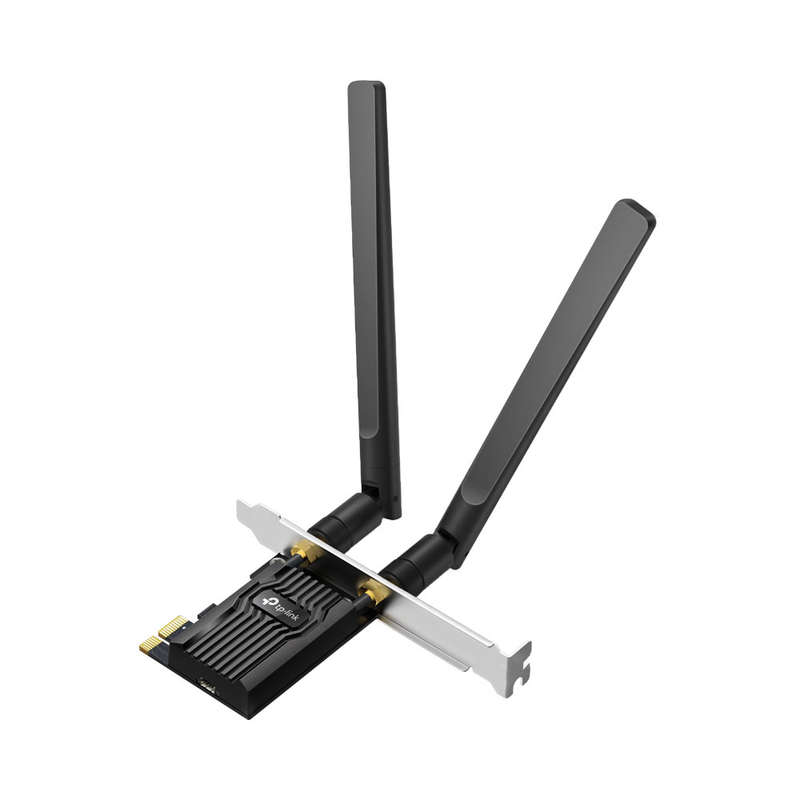

TP-Link Archer TX20E | AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Wi-Fi 6 Upgrades Everything
The latest Wi-Fi technology makes annoying lag, endless loading and dead spots a thing of the past. Enjoy the future of faster network loads and more connections
FEATURES:
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Dimensions | 120.8 × 78.5 × 20.9mm |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Chipset | Realtek Wi-Fi 6 Chipset |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5.0GHz |
| IEEE 802.11ax/n/g/b 2.4GHz | |
| Bluetooth 5.2 | |
| WLAN Signal Rate | 5.0GHz |
| 11ax: Up to 1201Mbps (dynamic) | |
| 11ac: Up to 867Mbps (dynamic) | |
| 11n: Up to 300Mbps (dynamic) | |
| 11a: Up to 54Mbps (dynamic) | |
| 2.4GHz | |
| 11ax: Up to 574Mbps (dynamic) | |
| 11n: Up to 300Mbps (dynamic) | |
| 11g: Up to 54Mbps (dynamic) | |
| 11b: Up to 11Mbps (dynamic) | |
| WLAN Reception Sensitivity | 5.0GHz : |
| 11ax HE80: -57.0dBm | |
| 11ax HE40: -60.0dBm | |
| 11ax HE20: -63.0dBm | |
| 11ac VHT80: -59.5dBm | |
| 11ac VHT40: -62.5dBm | |
| 11ac VHT20: -67.5dBm | |
| 11n HT40: -69.5dBm | |
| 11n HT20: -72.5dBm | |
| 11a 54Mbps: -74.0dBm | |
| 11a 6Mbps: -94.5dBm | |
| 2.4GHz : | |
| 11ax HE40: -60.0dBm | |
| 11ax HE20: -63.0dBm | |
| 11n HT40: -69.5dBm | |
| 11n HT20: -72.5dBm | |
| 11g 54Mbps: -74.0dBm | |
| 11b 11Mbps: -88.0dBm | |
| WLAN Transmit Power | 5.0GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) |
| 2.4GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) | |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Archer TX20E |
| Two High-Gain Dual Band Antennas | |
| Low-Profile Bracket | |
| Bluetooth Header Cable | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 11/10 (64-bit) only |
