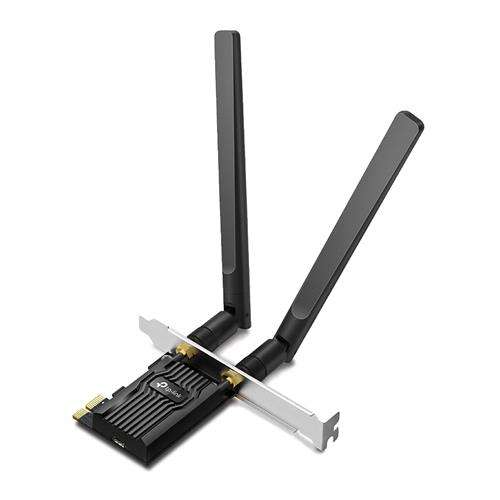

TP-Link ARCHER-TX20E WiFi and Bluetooth PCIe Card for Desktop PC - Bluetooth 5.2, WPA3, 802.11ax Dual Band Wireless Adapter with MU-MIMO, Ultra-Low Latency, Retail Box , 1 year Limited Warranty
Upgrade your desktop with the TP-Link Archer TX20E. Enjoy lightning-fast Wi-Fi speeds with the latest Wi-Fi 6 technology and a wider range thanks to its high-gain antennas.Benefit from improved security with WPA3 encryption and experience faster connections with Bluetooth 5.2. Easily boost your PC's wireless performance with this powerful adapter.
Features
Unrivalled Wi-Fi 6 Speed Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Bluetooth 5.2 The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
Backward Compatibility Full support for 802.11ax/ac/a/b/g/n standards
Specifications
Product code:ARCHER-TX20E
Description: TP-Link ARCHER-TX20E WiFi and Bluetooth PCIe Card for Desktop PC
Dimensions 4.76 × 3.09 × 0.82 in
(120.8 × 78.5 × 20.9 mm)
Antenna Type Two High-Gain Dual Band Antennas
Chipset Realtek Wi-Fi 6 Chipset
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2
WLAN Signal Rate 5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz :
11ax HE80: -57.0dBm
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11ac VHT80: -59.5dBm
11ac VHT40: -62.5dBm
11ac VHT20: -67.5dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11a 54Mbps: -74.0dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11g 54Mbps: -74.0dBm
11b 11Mbps: -88.0dBm
WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode

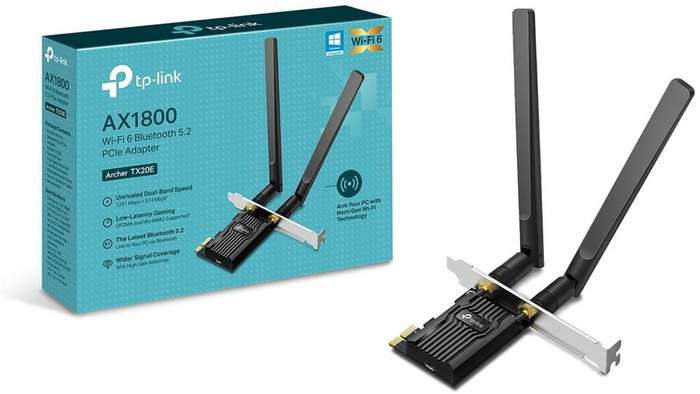

Package Contents Archer TX20E
Two High-Gain Dual Band Antennas
