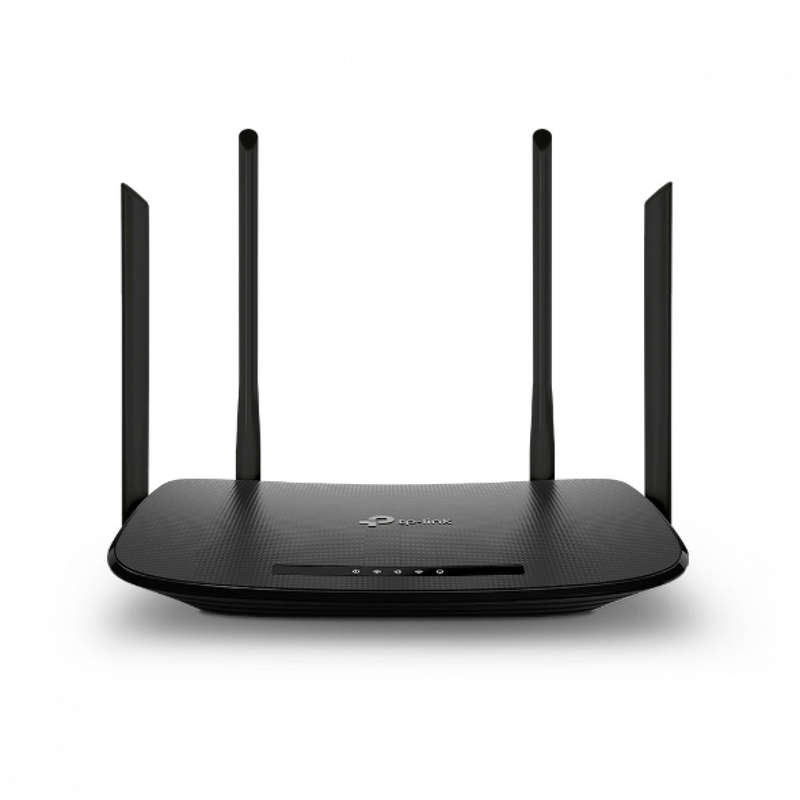

TP-Link Archer VR300 AC1200 Wi-Fi VDSL/ADSL Modem Router

Upgrade Internet, Upgrade Home Entertainment
AC1200 Wireless VDSL/ADSL Modem Router Archer VR300

Upgrade AC Wi-Fi to Enjoy Wireless Entertainment
As a powerful DSL modem router, the Archer VR300 makes full use of its Wi-Fi abilities by providing combined dual band Wi-Fi speeds of up to 1200Mbps. 300Mbps on 2.4GHz is perfect for everyday surfing and emailing, while 867Mbps on 5GHz provides lag-free HD streaming and gaming.

Superfast VDSL Broadband
The latest VDSL2 technology allows the Archer VR300 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost five times faster than ADSL2+.
The Archer VR300 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL.

External Antennas Greatly Expand Wireless Coverage
Four external antennas with advanced connection technology allow you to maintain impressive speeds, even over greater distances.
This means that you can enjoy incredible wireless coverage and reliability in any part of your large home or office.

Easy Setup and Management
Set up the Archer VR300 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

Remote Control
With TP-Link Tether App and DDNS, you can control your home network wherever you are.

Safe, Family-Friendly Surfing
Parental Controls manage when and how connected devices can access the internet. Guest Network keep your main network secure while creating a separate network for guests and visitors.

6kV Lightning Protection
6KV Lightning Protection provides shields against electrical damage caused by thunderstorms so that you can enjoy your life even in bad weather.

Features:
- Parental Controls: manage responsible internet access for your children
- Guest Network: provides separate access for guests while securing the home network
- Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
- Quality of Service: prioritizes network traffic by device or application
- IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
- IPv6: compatible with IPv6 (Internet Protocol version 6)
- Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)

Specifications:
- Interface: 3 x 10/100 RJ45 LAN Ports, 1 x 10/100 RJ45 LAN/WAN Port, 1 x RJ11 Port
- Button: WPS Button, Power On/Off Button, Reset Button
- Power Supply: 12V/1A
- VDSL2 Standards: ITU G.993.2, Up to 17a prole (POTS), ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
- ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1
- ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
- ADSL2+ Standards: ITU-T G.992.5
- Dimensions ( W x D x H ): 385/290/76mm
- Antenna Type: 4 x fixed external antennas

WIRELESS FEATURES:
Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Wireless Speeds: 867Mbps at 5GHz, 300Mbps at 2.4GHz
Transmit Power: 2.4GHz <20dBm(EIRP), 5GHz <23dBm(EIRP)
Wireless Functions: Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable
Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS)

SOFTWARE FEATURES:
Quality of Service: ATM QoS, Bandwidth Control
Security: NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes: VDSL/ADSL Modem Router, Wireless Router
Management: Web Based Conguration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools
DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS: DynDns, NO-IP
VPN Pass-Through: PPTP, L2TP, IPSec Passthrough
Protocols: Supports IPv4 and IPv6
ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC Up to 8 PVCs
Advanced Functions: Parental Control, Network Address Translation(NAT),Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,DDNS, IGMP V1/V2/V3
Guest Network: 2.4GHz guest network, 5GHz guest network

OTHERS:
Certification: CE, RoHS, RCM
Package Contents: AC1200 Wireless VDSL/ADSL Modem Router Archer VR300, External Splitter, RJ11 DSL Cable, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide
System Requirements: Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
Subscription with an Internet Service Provider (for Internet access)

What's in the box
AC1200 Wireless VDSL/ADSL Modem Router Archer VR300,
External Splitter,
RJ11 DSL Cable,
RJ45 Ethernet Cable,
Power Adapter,
Quick Installation Guide
