One Touch Super Range Extension - Wi-Fi Clone Button Simplifies Your Wi-Fi Configuration And Helps Build A Seamless Unified Home Network.

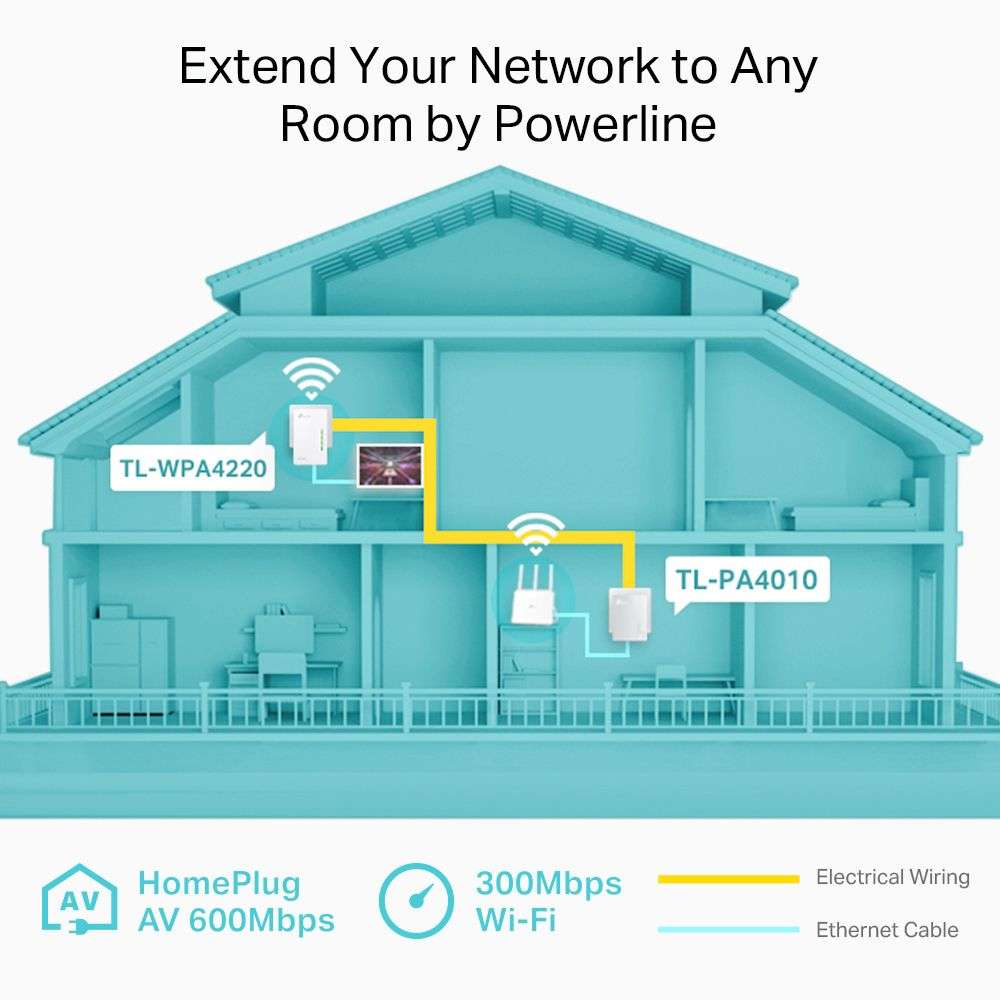

HomePlug AV Standard Providing Up To 600Mbps High Speed Data Transmission Over A Home's Electrical Wiring.
Extend 300Mbps Wireless Connections To Previously Hard To Reach Areas Of Your Home.
HARDWARE FEATURES

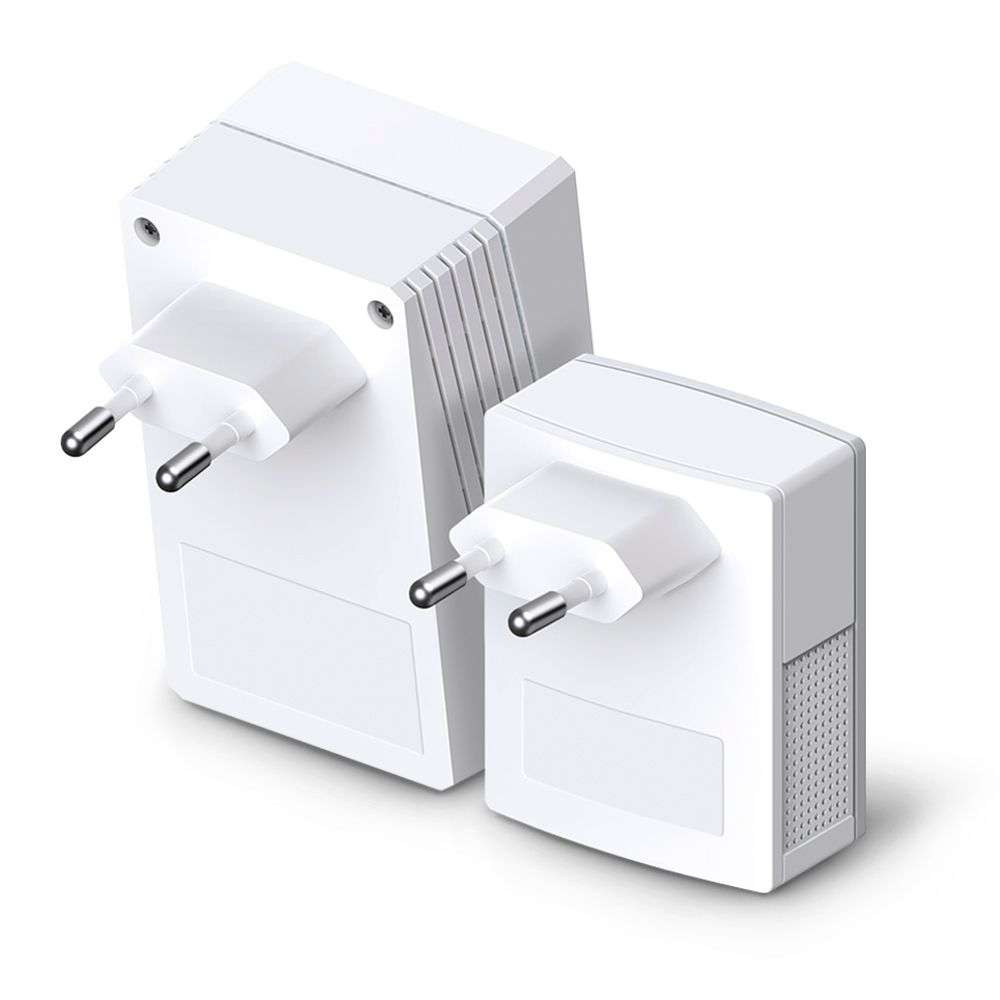

Plug Type EU, UK, US, AR
Standards and Protocols-HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface-2*10/100Mbps Ethernet Port
Button-Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption-Maximum: 7.608W (220V/50Hz)
Typical: 7.216W (220V/50Hz)
Standby: 4.610W (220V/50Hz)
LED Indicator-PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions-( W x D x H ) TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)
TL-PA4010: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range-300 Meters over electrical circuit
WIRELESS FEATURES
Frequency-2.4-2.4835GHz
Signal Rate-11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity-270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security-64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions-Enable/DisableWireless Radio,WMM, Wireless Statistics
Transmission Power CE:<20dBm(2.4GHz)
FCC:<30dBm
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption-Powerline Security:
128-bit AES
Wireless Security:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
System Requirements-Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment-Operating-Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box

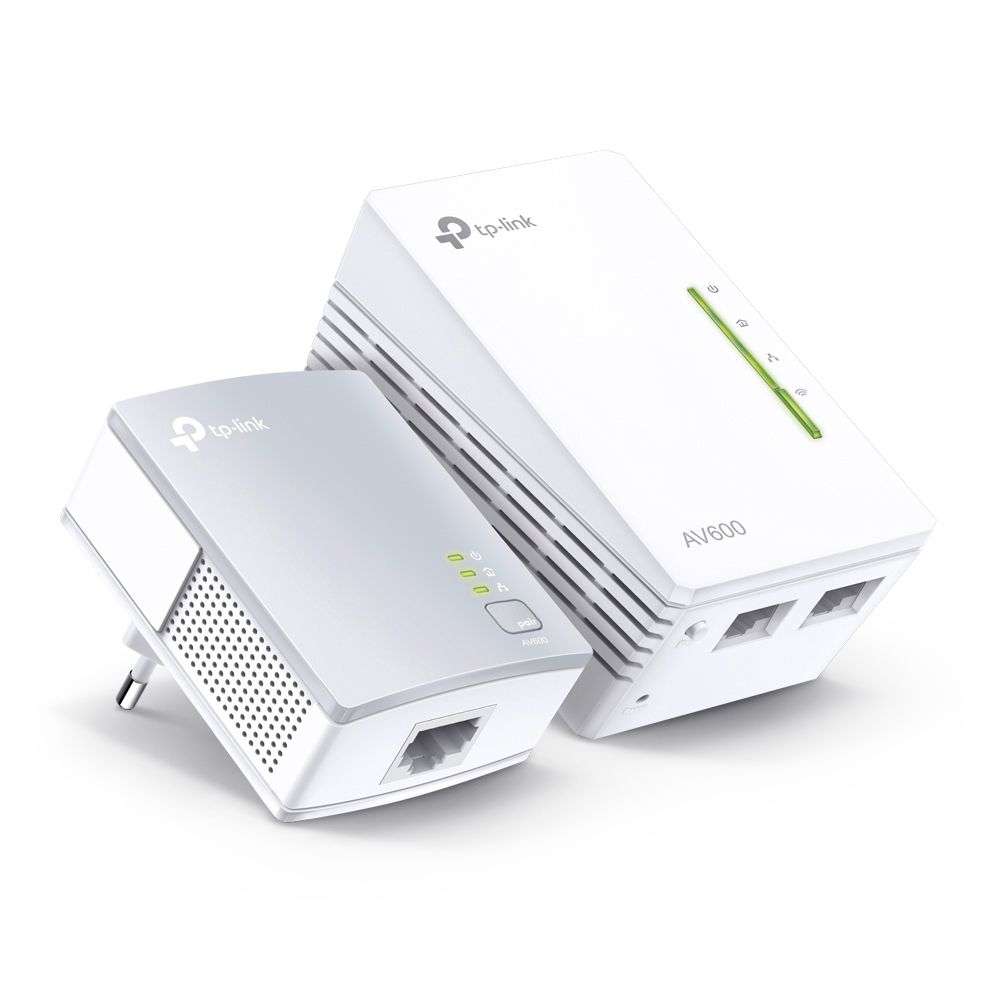

AV600 Powerline Wi-Fi Kit
2 x Ethernet Cable
Quick Installation Guide
