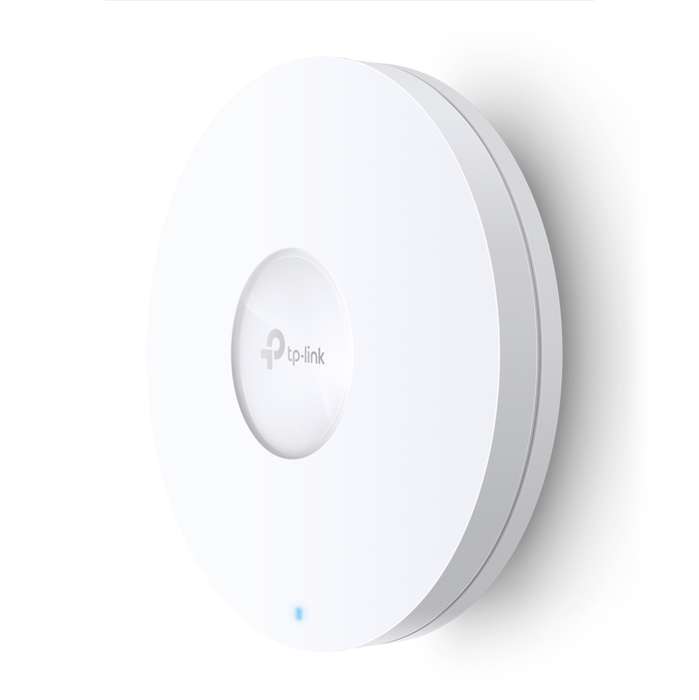

EAP620 HD
AX1800 Wireless Dual Band Ceiling Mount Access Point
Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) , Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
High Performing AX1800 Wireless for High-Density Environments Omada EAP620 HD
High-Density Connectivity with 4× Increased Capacity
OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously . Leverage multi-user capabilities and upgrade your business like never before.
Hospitality - High Quality and Full Coverage Wi-Fi
Restaurant - Full Wi-Fi Coverage in High-Density Environment
Shopping Mall - Social Marketing for O2O
Meeting Room - Wireless and Wired Connections for dense usage
Railway Station - High-Density Wi-Fi
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN-Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and gateways, guaranteeing a powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Boost Network Efficiency in All Aspects With Rich Advanced Features
Band Steering - Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance - ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness - Increases average network throughput in heavily congested environments
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with a captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
Specifications
Hardware Features
Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button: Reset
Power Supply:
802.3at PoE
12 V DC
Power Consumption:
EU: 12 W
US: 13.5 W
Dimensions ( W x D x H ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type
Internal Omni
2.4 GHz: 2× 4 dBi
5 GHz: 2× 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included)
Wireless Features
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)
FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
Management:
Omada App: Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment:
Operating Temperature: 0-40 ? (32-104 ?)
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
What's in the box
1 x EAP620 HD
1 x Power Adapter
1 x Ceiling/Wall Mounting Kits
1 x Installation Guide
