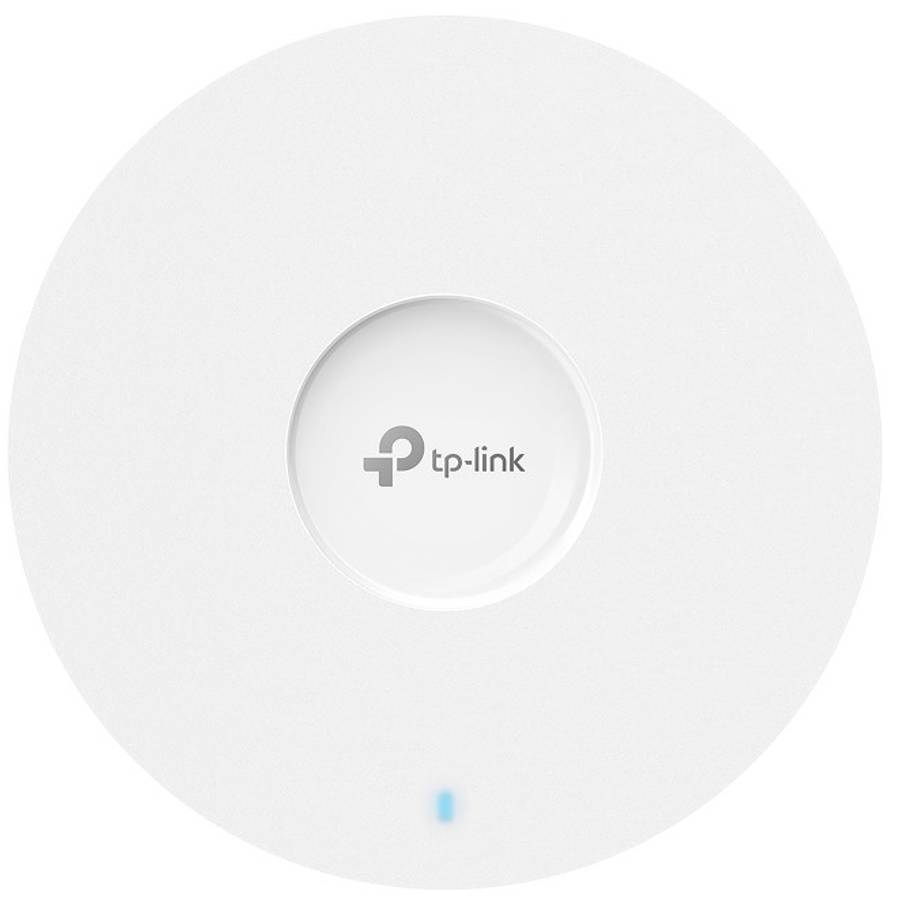

TP Link AX3000 Ceiling Mount WiFi 6 Access Point - Supports WiFi 6 Speeds, 2402Mbps on 5GHz and 574Mbps on 2.4GHz Signal Rate, Support Both 802.3 at PoE, 1 x Gigabit PoE+ Port Interface, Internal Omni Antennas, Omada Mesh, Seamless Roaming Advanced Features, Wireless Security, Ultra Slim Design, Omada App, Retail Box, 6 Months Warranty.
Product Overview
The TP Link EAP653 AX3000 WiFi 6 Ceiling Access Point dualband 802.11ax (2.4 GHz up to 574 Mbps, 5 GHz up to 2402 Mbps) with OFDMA, MUMIMO, 1024QAM and 160 MHz channels for highdensity, lowlatency wireless in offices, classrooms and hospitality venues.Power & install 1× Gigabit Ethernet with 802.3at PoE (or optional 12 V DC adapter sold separately), internal omni antennas (2× 4 dBi @ 2.4 GHz, 2× 5 dBi @ 5 GHz), ceiling/wall/junctionbox mounting kits included, compact 160 × 160 × 33.6 mm design covering ~1500 ft² and 250+ concurrent clients.Management & security Omada SDN ready (hardware OC200/OC300, software or cloud controller), ZeroTouch Provisioning, multisite/L3 management, SNMP v1v3, SSH, syslog, email alerts, LED control; WPA3Enterprise/Personal, 802.1X, captive portal, SSIDtoVLAN, rogue AP detection and client/AP/SSID statistics for secure, scalable deployments.
Specifications
Product Code: EAP653 UR
Description: AX3000 Ceiling Mount WiFi 6 Access Point
Hardware Features
Interface: 1x Gigabit PoE+ Port
Button: Reset
Power Supply
802.3at PoE
12V DC / 1.5 A (Power Adapter IS NOT included)
48V Passive PoE
Max. Power Consumption
EU: 14.2 W
US: 15.5 W
Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna: Internal Omni
2.4 GHz: 2× 5 dBi
5 GHz: 3× 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
Wireless Features
Coverage: 185 (2000 ft²)
Concurrent Clients: 250+
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate
5GHz: Up to 2402Mbps
2.4GHz: Up to 574Mbps
Wireless Functions
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
HE160 (160 MHz Bandwidth)
Seamless Roaming(802.11k/v/r)§
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management Features
Omada App: Yes
Cloud Access: Yes. Require the use of an Omada controller.
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
