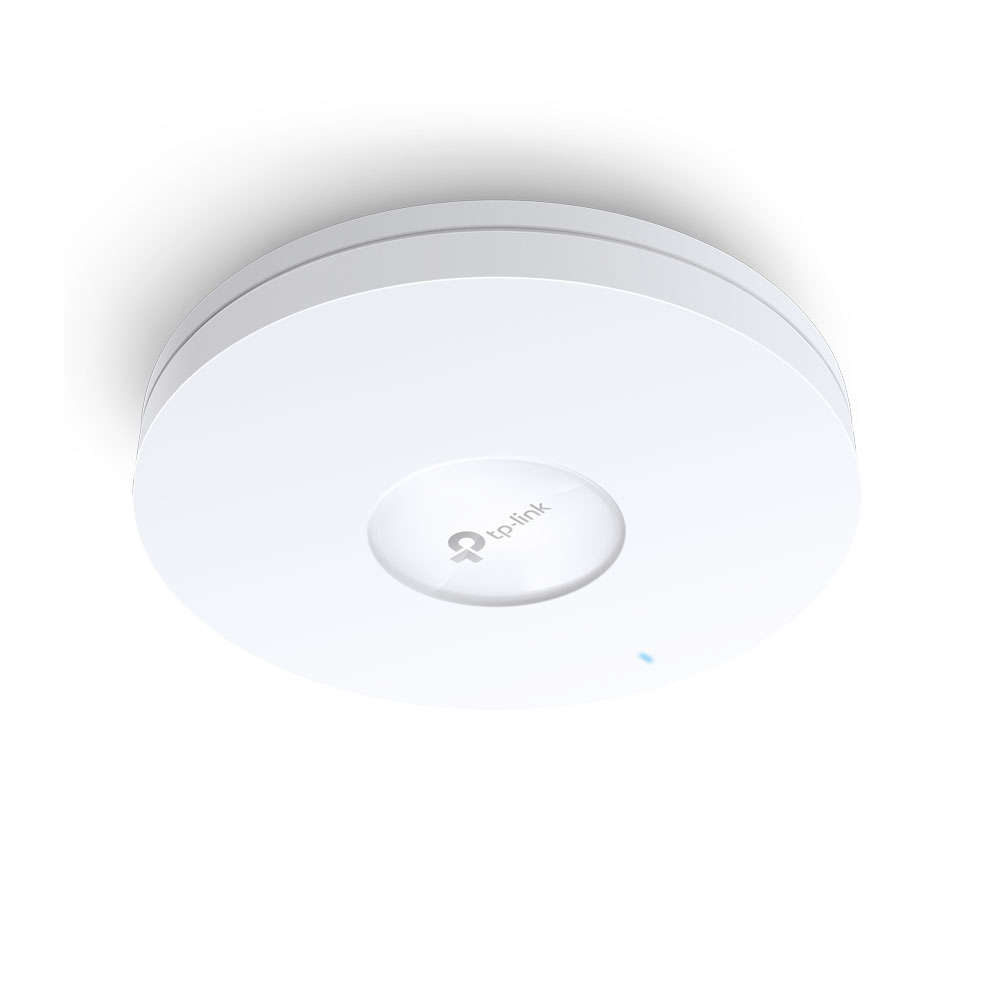

TP-Link AX5400 CEILING MOUNT WIFI 6 ACCESS

The TP-Link AX5400 CEILING MOUNT WIFI 6 ACCESS is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Blazing-Fast Wi-Fi 6 Speeds: Simultaneous 574Mbps on 2.4GHz and 4804Mbps on 5GHz totals 5378Mbps Wi-Fi speeds
• High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds
• Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
• 160MHz Channel: Double the data at peak transmission times on a single stream with HE160
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations

Technical Specifications:
FEATURES

? Blazing-Fast Wi-Fi 6 Speeds: Simultaneous 574Mbps on 2.4GHz and 4804Mbps on 5GHz totals 5378Mbps Wi-Fi speeds
? High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds
? Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
? 160MHz Channel: Double the data at peak transmission times on a single stream with HE160
? Seamless Roaming: Video streams and voice calls are unaffected as users move between locations
? Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
? PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations

SPECIFICATIONS

HARDWARE FEATURES
? Interface: 1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
? Button: Reset
? Power Supply: 802.3at PoE, 12 V / 1.5 A DC (Power Adapter included)
? Power Consumption: EU: 18.1 W
? Dimensions ( W x D x H ): 243 x 243 x 64mm
? Antenna Type: Internal Omni, 2.4GHz: 2x 4dBi, 5GHz: 4x 5dBi

WIRELESS FEATURES
? Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
? Frequency: 2.4GHz and 5GHz
? Signal Rate: 5GHz: Up to 4804Mbps, 2.4GHz: Up to 574Mbp
? Wireless Functions: 1024-QAM, 4x Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule,Wireless Schedule, Wireless Statistics based on SSID/AP/Client
? Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
? Transmission Power: CE: <20 dBm (2.4GHz, EIRP), <23 dBm (5GHz, band1 & band2, EIRP), <30 dBm (5GHz, band3, EIRP), FCC: <25 dBm (2.4GHz), <28 dBm (5GHz)

MANAGEMENT
? Omada App: Yes
? Centralised Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
? Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
? Email Alerts: Yes
? LED ON/OFF Control: Yes
? Management MAC Access Control: Yes
? SNMP: v1, v2c, v3
? System Logging Local/Remote Syslog: Local/Remote Syslog
? SSH: Yes
? Web-based Management: HTTP/HTTPS
? L3 Management: Yes
? Multi-site Management: Yes
? Management VLAN: Yes
? Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
? Certification: CE, FCC, RoHS
? System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
? Environment: Operating Temperature: 0?40?C
? Storage Temperature: -40?70?C
? Operating Humidity: 10?90% RH non-condensing
? Storage Humidity: 5?90% RH non-condensing
