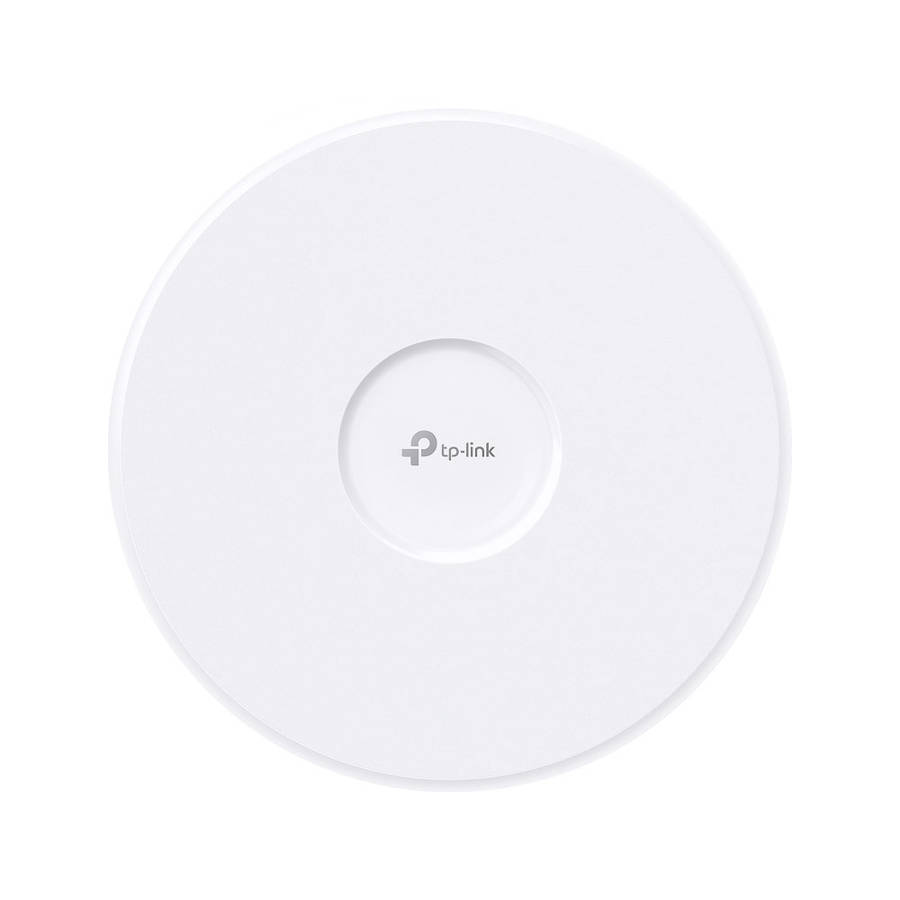

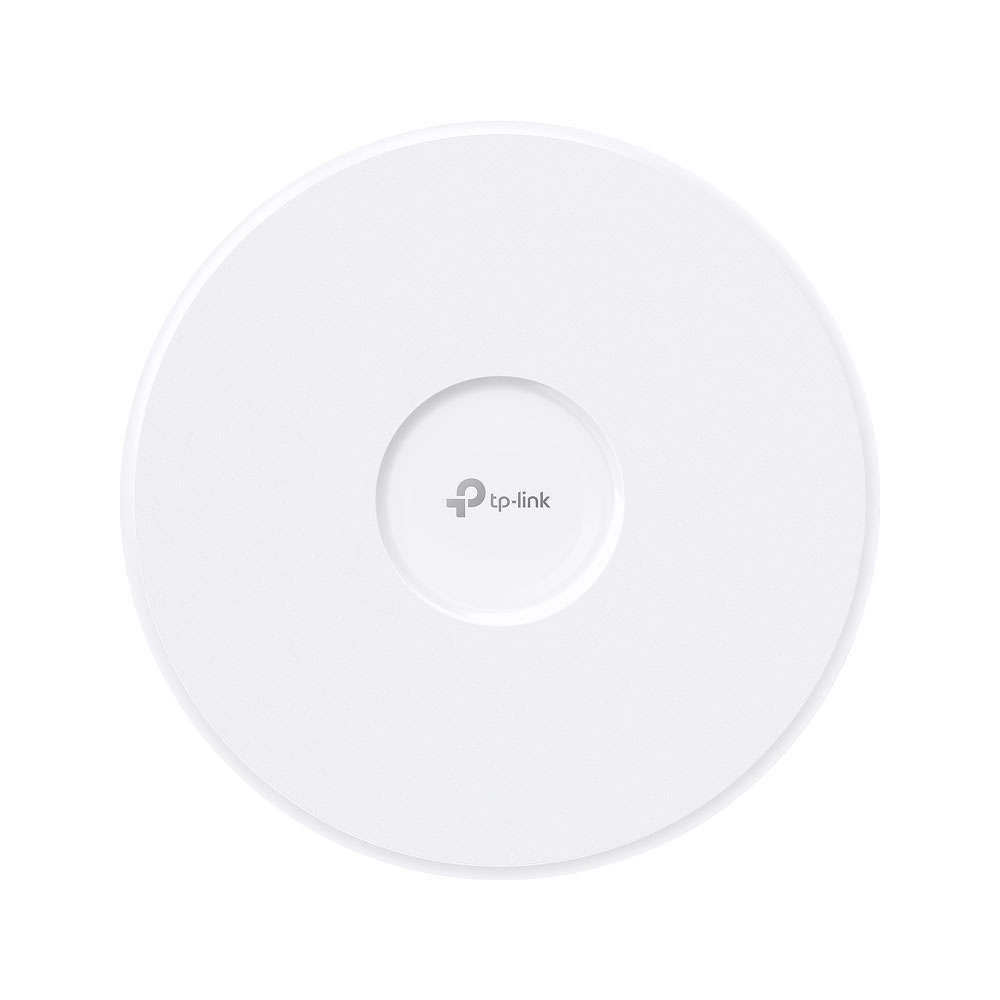

TP-Link EAP773 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point (DC Adapter Sold Separately)
Ultra-Thin Enterprise Wi-Fi 7 Access Point to Redefine Your Business Network.
The TP-Link EAP773 delivers ultra-fast BE9300 Tri-band Wi-Fi 7 performance designed for high-density business environments. With advanced Wi-Fi 7 technologies and a 10GbE uplink, it provides exceptional capacity, ultra-low latency and lightning-fast connectivity for demanding networks. Integrated with Omada SDN for seamless roaming, centralised cloud management and scalable deployment, the EAP773 brings powerful next-generation wireless to modern enterprise networks.
FEATURES
BE9300 Tri-Band Wi-Fi 7 - 5,760Mbps (6.0GHz) + 2,880Mbps (5.0GHz) + 574Mbps (2.4GHz)
1× 10G Port - Unlock the full potential of Wi-Fi 7
Clear 6.0GHz Band - Brings cleaner and wider band resources to your Wi-Fi
320MHz Bandwidth - Up to 320MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds
Low Latency and Interference - Multi-Link Operation and Multi-RUs ensure high network performance
Advanced Functions - Supports centralised management, mesh and AI roaming
SPECIFICATIONS
HARDWARE FEATURES

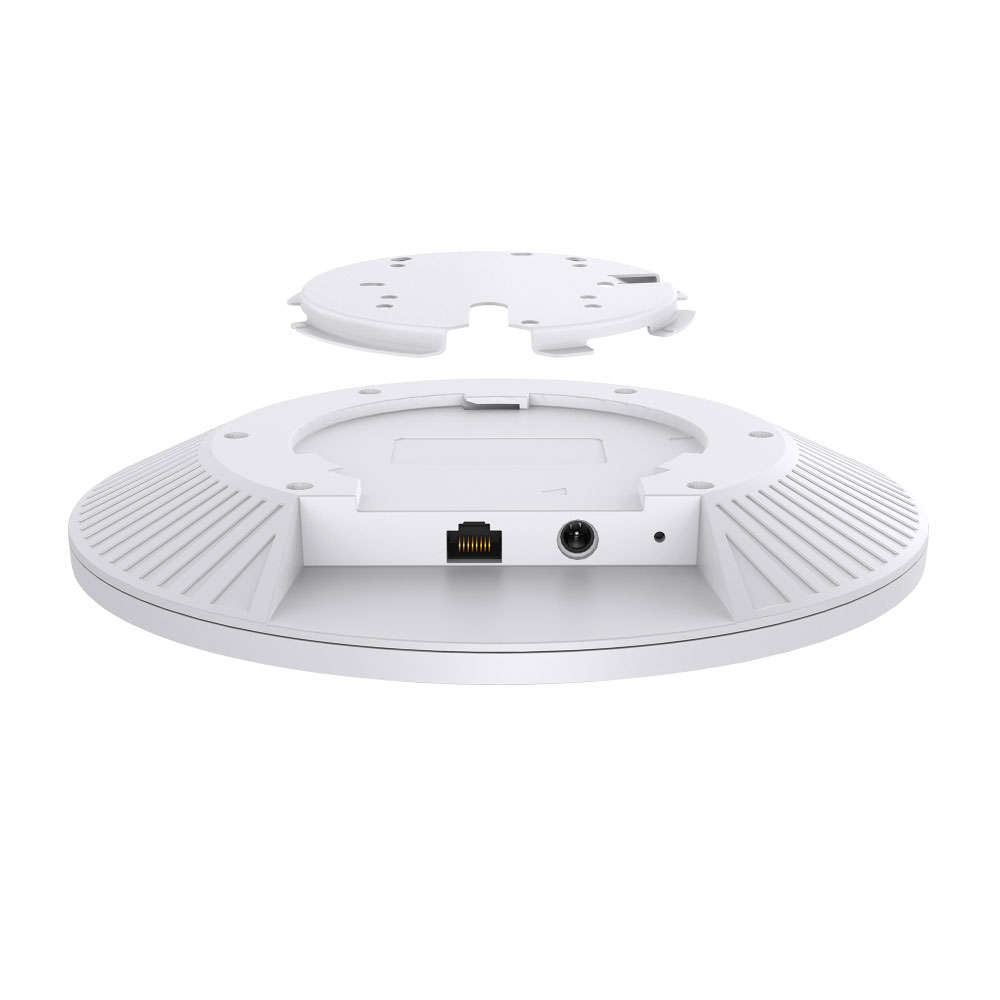

Interface: 1× 10Gb Ethernet (RJ45) Port (Supports IEEE 802.3at/802.3bt PoE++)
Button: Reset
Power Supply: 802.3at/802.3bt PoE or 12V DC (Adapter Not Included)
Power Consumption: 21.5W

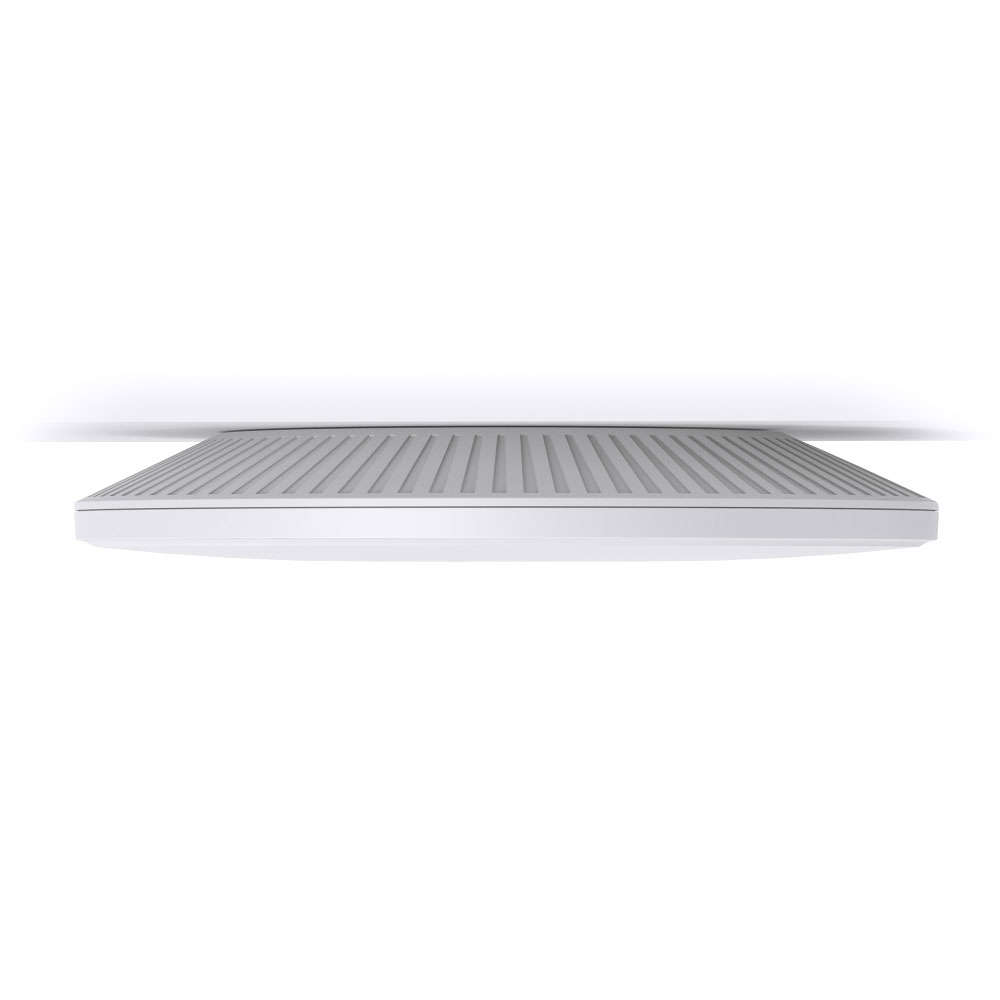

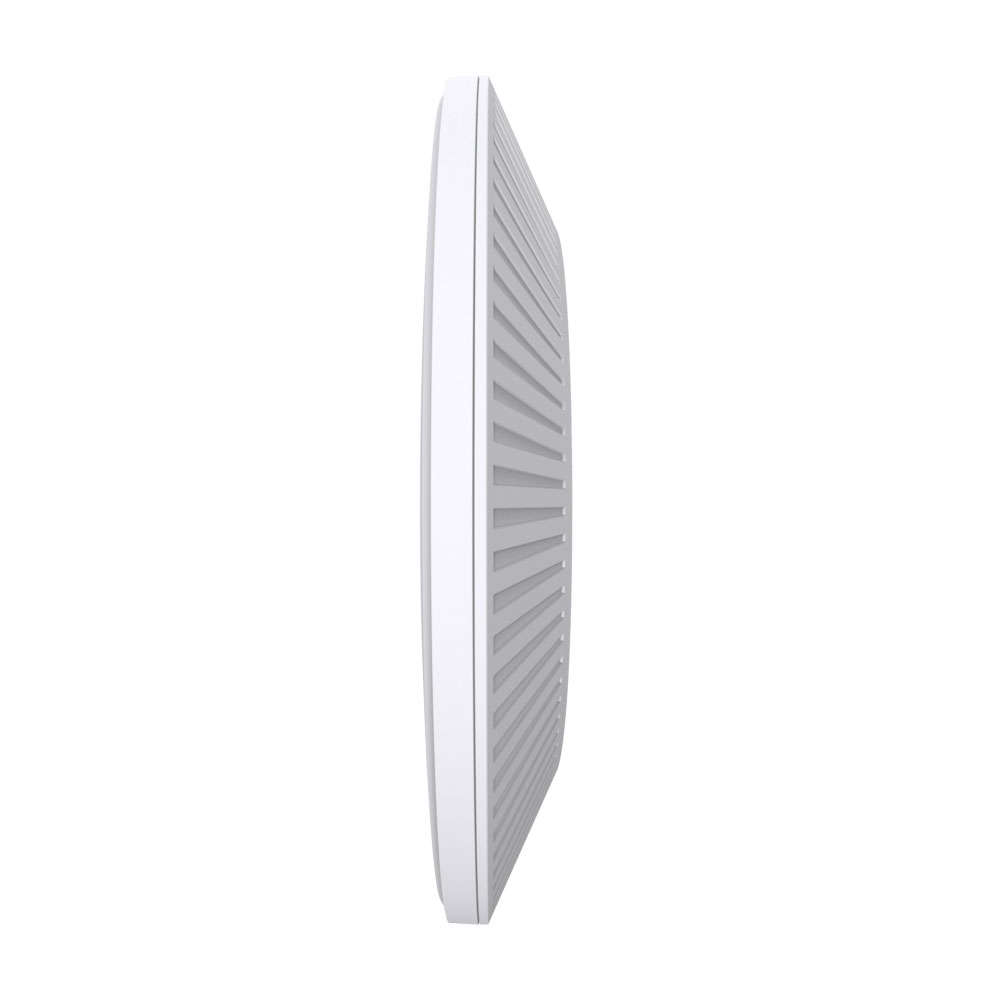

Dimensions: 220 × 220 × 32.5mm
Antennas: Internal Omni Antennas
- 2.4GHz: 2× 4dBi
- 5.0GHz: 4× 5dBi
- 6.0GHz: 4× 6dBi
Mounting: Ceiling/Wall Mounting Kits Included
WIRELESS FEATURES
Wireless Standards: IEEE 802.11be/ax/ac/n/g/b/a
Frequency: 2.4GHz, 5.0GHz and 6.0GHz
Signal Rate:
- 6.0GHz: up to 5,760Mbps
- 5.0GHz: up to 2,880Mbps
- 2.4GHz: up to 5,74Mbps
Multi-Link Operation (MLO): Yes
4096-QAM: Yes
OFDMA: Yes
MU-MIMO: Yes
320MHz Channel Support: Yes
SSIDs: up to 16× SSIDs (8× per Band)
Seamless Roaming: Yes
Omada Mesh: Yes
Band Steering: Yes
Load Balance: Yes
Airtime Fairness: Yes
Beamforming: Yes
QoS (WMM): Yes
Rate Limit: Yes
Reboot Schedule and Wireless Schedule: Yes
WIRELESS SECURITY
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
TRANSMISSION POWER
CE: 20dBm (2.4GHz), 23dBm (5.0GHz), 23dBm (6.0GHz)
FCC: 25dBm (2.4GHz), 25dBm (5.0GHz), 25dBm (6.0GHz)
MANAGEMENT
Omada App: Yes
Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
Cloud Access: Yes
Email Alerts: Yes
SNMP: v1/v2c/v3
System Logging: Local/Remote Syslog
SSH: Yes
Web-Based Management: HTTP/HTTPS
Multi-Site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes
CERTIFICATION
CE
FCC
RoHS
ENVIRONMENT
Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Operating Humidity: 10~90% RH (Non-Condensing)
Storage Humidity: 5~90% RH (Non-Condensing)
