1900 Mbps WiFi Speed Enjoy binge watching your favorite series in 4K with combined speeds of up to 1900 Mbps (600 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz ) with 3×3 MU-MIMO technology.
Connect 100+ Devices Deco handles traffic from even the busiest of networks, providing lag-free connections for over 100 devices.
Boosted Seamless Coverage With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds. §
Full Gigabit Ethernet 3× Gigabit WAN/LAN Ethernet ports provide solid internet access at high speeds.?
Robust Parental Controls Limit online time and block inappropriate websites according to unique profiles you create for each family member.
Two Modes in One Works as a router or access point for a flexible home network.
Easy Setup Setup is easier than ever with the Deco app there to walk you through every step.
SECURITY
Network Security SPI Firewall
Access Control
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption WPA-Personal
WPA2-Personal
WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range 3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul works together to link Deco units to provide seamless coverage
3× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Medium
Dual-Band
Distribute devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes Router Mode
Access Point Mode
HARDWARE
Ethernet Ports 3× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
SOFTWARE
Protocol IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Type Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
TEST DATA
WiFi Transmission Power CE:
FCC:
PHYSICAL
Dimensions (W×D×H) 6.4 × 3.6 × 3.6 in
(162.3 × 90.7 × 90.7 mm)

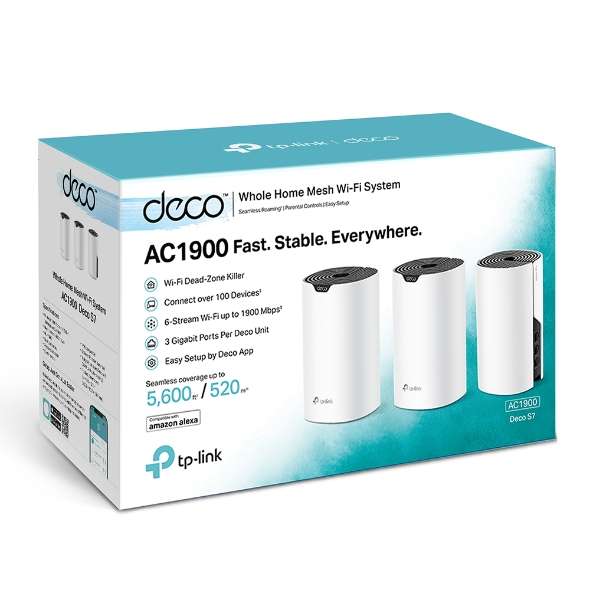

Package Contents Deco S7 (3-pack)
3 Deco S7 Units
1 RJ45 Ethernet Cable
3 Power Adapters
Quick Installation Guide
Deco S7 (2-pack)
2 Deco S7 Units
1 RJ45 Ethernet Cable
2 Power Adapters
Quick Installation Guide
Deco S7 (1-pack)
1 Deco S7 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
Quick Installation Guide
OTHERS
Certification CE, FCC, RoHS, NCC, BSMI, JRF, JPA, VCCI
System Requirements Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Capability to connect 100 devices is based on testing using a mixed combination of devices. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Use of MU-MIMO requires clients that also support MU-MIMO.
§ Clients need to support 802.11k/v and may require additional setup. Performance may vary depending on the client device.
? All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
