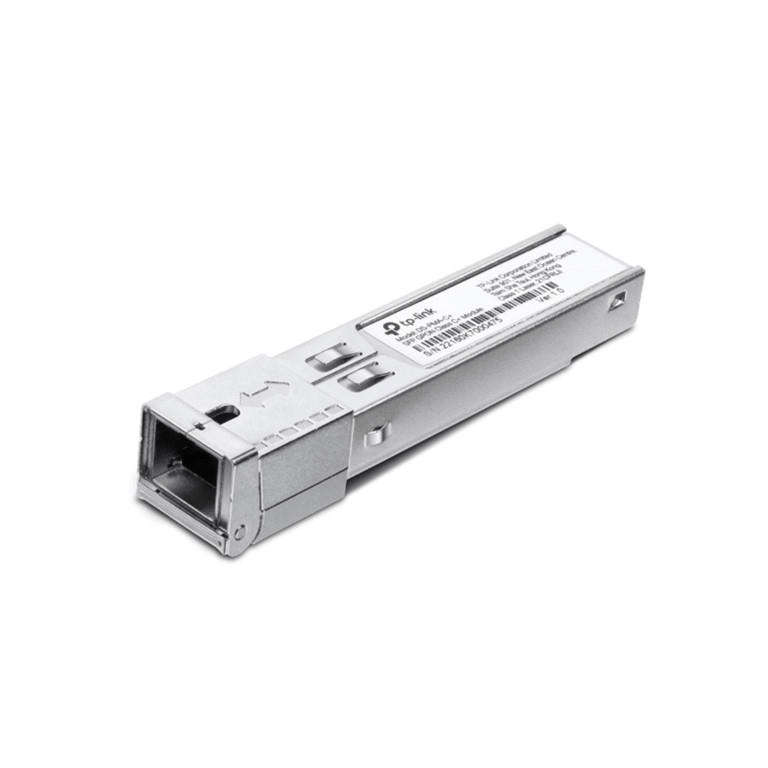

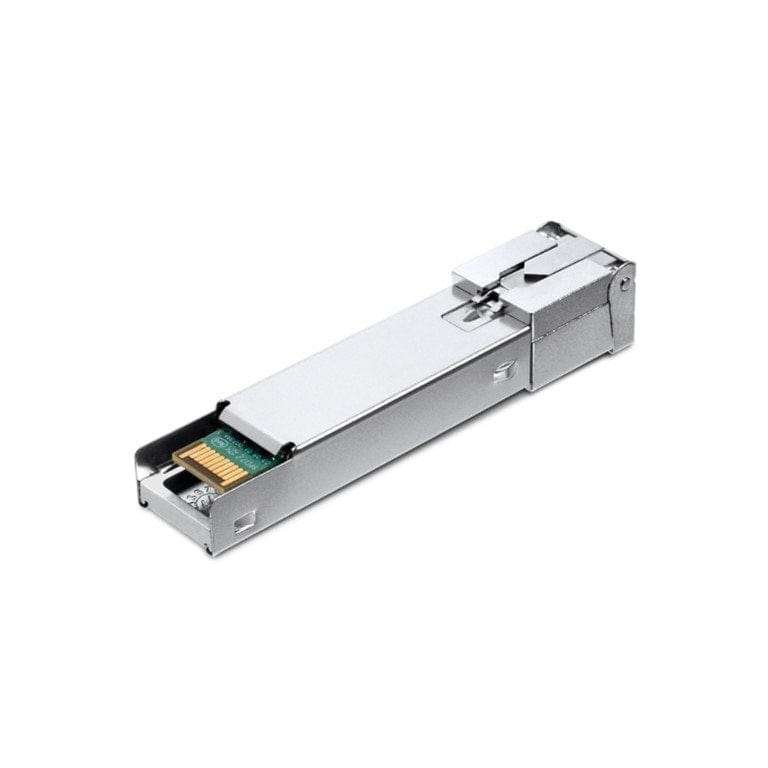

TP-Link DS-PMA-C+ SFP GPON Class C+ Transceiver Module

Features

  • Single-fiber SFP GPON Class C+ Module
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with TP-Link GPON OLT, such as DS-P7001-16, DS-P7001-08, and DS-P7001-04

Technical Specification

Product: GPON SFP Module
Wavelength
  • Tx: 1490nm
  • Rx: 1310nm
Connector
  • Device: GPON SFP
  • Fiber: SC/UPC
Fiber Type: Single Fiber (9/125um)
Data Rate
  • Tx: 2488.32Mbps
  • Rx: 1244.16Mbps
Power Level: Class C+ (Tx Optical Power +3~+7dBm, Rx Sensitivity <-30 dBm, Rx Saturation Optical Power>-12dBm)
Extinction Ratio: >8.2dB
Rx Optical Power Tolerance: >5dBm
Transmission Distance: Max. 20 km
Hot Swap: Yes
Nominal Voltage: 3.3 V (< ± 5ï¼…)
Diagnostic Function: Monitors parameters such as voltage, transceiver power, and temperature
Electrical Level
  • Data Interface: LVPECL
  • Control Interface: LVTTL
