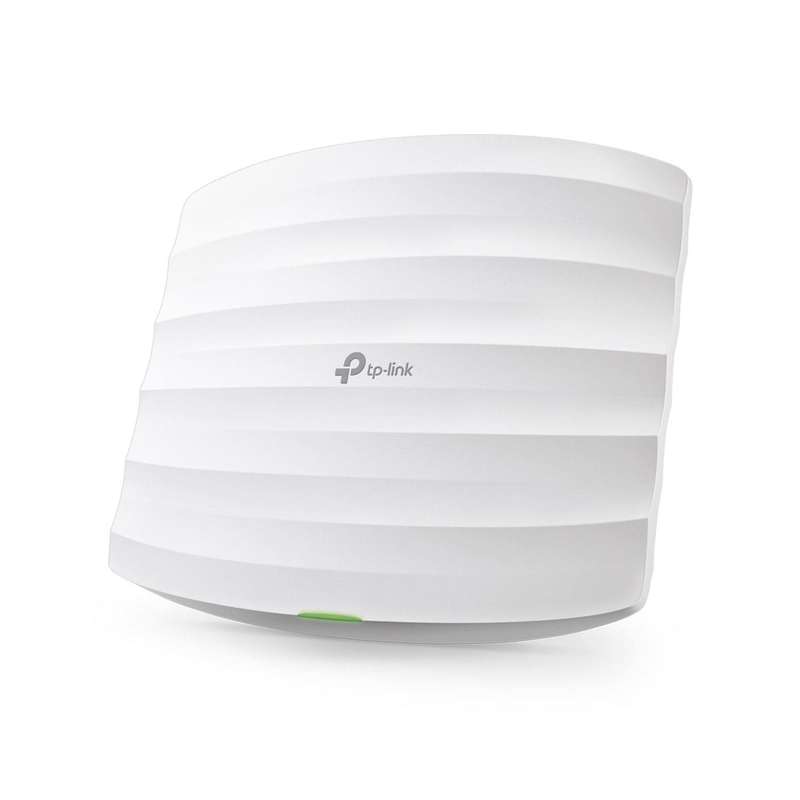

TP-Link EAP110 N300 Wireless N Ceiling Mount Access Point

• Cloud centralized management and Omada app for ultra convenience and easy management
• Supports passive PoE for convenient installation up to 100meters
• Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
• Multi-SSID divides multiple wireless networks for different users
• Enterprise class Wi-Fi security help to decrease network security threats
• Supports management vlan for an enhanced network management

Flexible Placement

Easy mounting design & PoE

The EAP's elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Cloud Centralized Management
- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Captive Portal

Guest Network with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

EAP110
- Cloud centralized management and Omada app for ultra-convenience and easy management.
- Supports passive PoE for convenient installation up to 100 square meters.
- Ceiling mounting design with chassis makes it easy to deploy on a wall or ceiling.
- The captive portal provides modern and professional user sign-in experience.
- Facebook check-in and SMS authentication expands your social exposure with secured technology.
- Multi-SSID divides multiple wireless networks for different user groups.
- Enterprise class Wi-Fi security help to decrease network security threats.
- Supports management VLAN for an enhanced network management.

Business Class Ceiling Mount Access Point
EAP110

Features:
Flexible Placement: Easy mounting design & PoE
- The EAP's elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management: Anytime, Anywhere
- Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Efficient Guest Authentication with Facebook and SMS Support:
- Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App:
- Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Note:
1/ Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of a) environmental factors, including building materials, physical objects and obstacles, b) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and c) client limitations, including rated performance, location, connection quality, and client condition.
2/ Power supply distances are based on test results under normal usage conditions. Actual power supply distance will vary as a result of a) AP status, including transmit power, connected devices and network traffic along with b) cable properties, including type and texture, and c) environmental factors, which include temperature and humidity.

Specifications:
Hardware Features
- Interface: 1 x Fast Ethernet (RJ-45) Port (Support Passive PoE)
- Physical Security Lock: Kensington Lock Slot
- Button: Reset
- Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 2.8 W
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Antenna Type: 2 x Internal 4dBi omni-directional
- Mounting: Ceiling /Wall Mounting (mounting kit included)

Wireless Features
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4 2.4835GHz
- Signal Rate:
1) 11n: Up to 300Mbps (dynamic)
2) 11g: Up to 54Mbps (dynamic)
3) 11b: Up to 11Mbps (dynamic)
4) Reception Sensitivity 300M: -71dBm@10% PER
5) 150M: -75dBm@10% PER
6) 54M: -78dBm@10% PER
7) 11M: -93dBm@8% PER
8) 6M: -92dBm@10% PER
9) 1M: -96dBm@8% PER
- Wireless Functions:
a) Multiple SSIDs (Up to 8 SSIDs)
b) Enable/Disable Wireless Radio
c) Automatic Channel Assignment
d) Transmit Power Control (adjustable in 1 dBm step)
e) QoS (WMM)
f) Rate Limit
g) Reboot Schedule
h) Wireless Schedule
i) Wireless Statistics based on SSID/AP/Client
- Wireless Security:
1) Captive Portal Authentication
2) Access Control
3) Wireless Mac Address Filtering
4) Wireless Isolation Between Clients
5) SSID to VLAN Mapping
6) Rogue AP Detection
7) 802.1X Support
8) 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
- Transmission Power: 21dBm max.

Management
- Omada App: Yes
- Centralized Management:
1) Omada Cloud-Based Controller
2) Omada Hardware Controller (OC300)
3) Omada Hardware Controller (OC200)
4) Omada Software Controller
- Omada Controller Software: Yes
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- Telnet: Yes
- SSH: Yes
- Web-based Manageme...
