Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra-convenience and easy management.
PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.
Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
An Affordable, Scalable Business Wi-Fi Solution

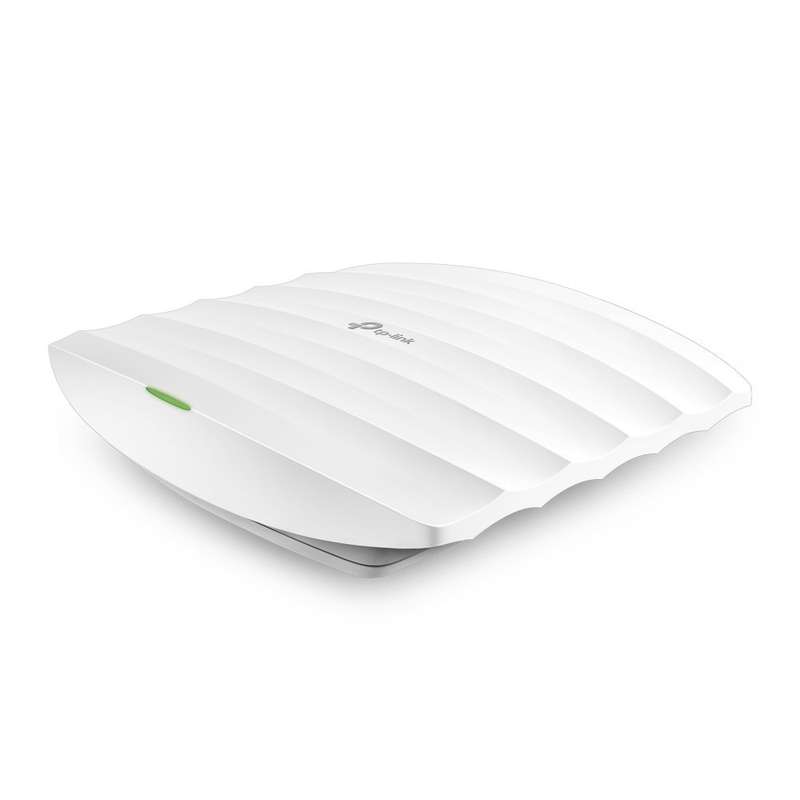

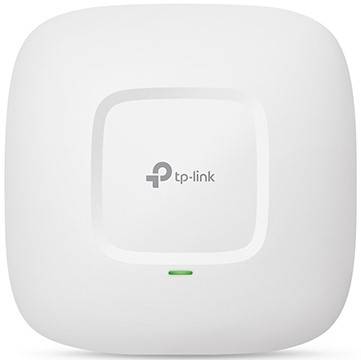

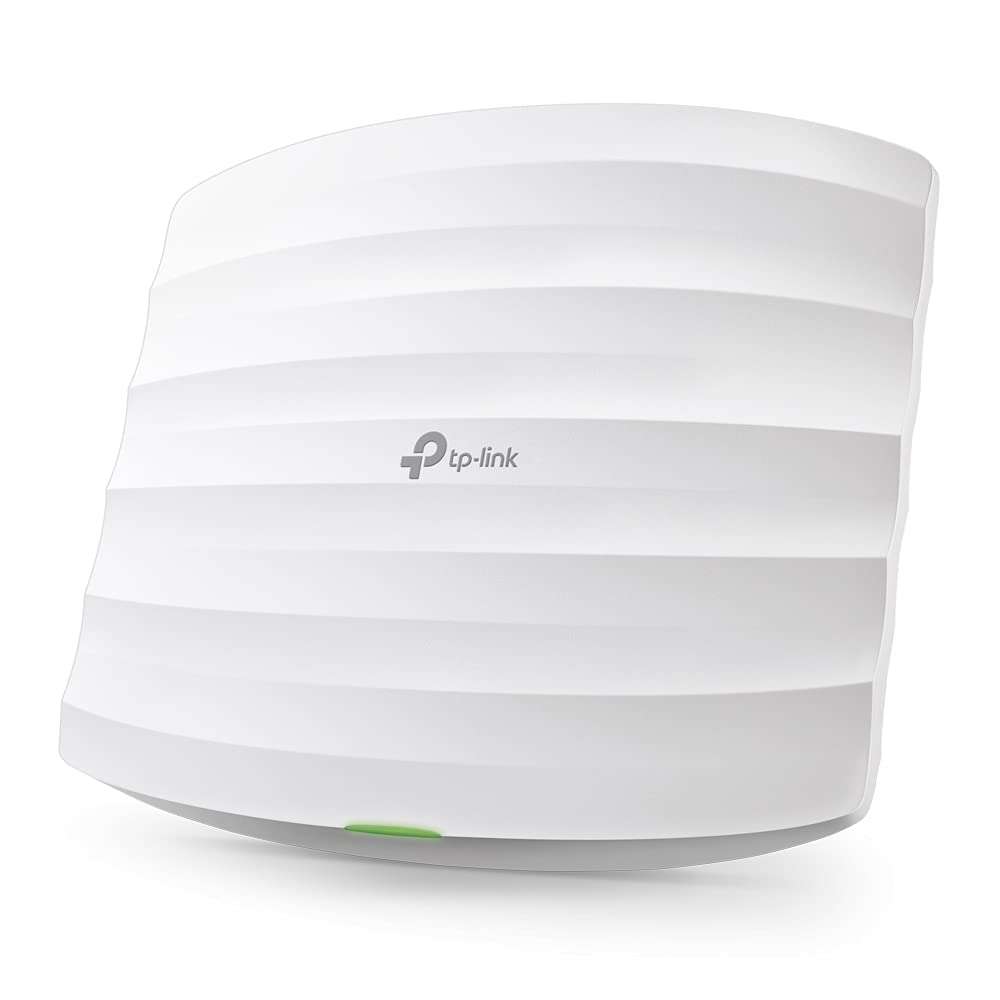

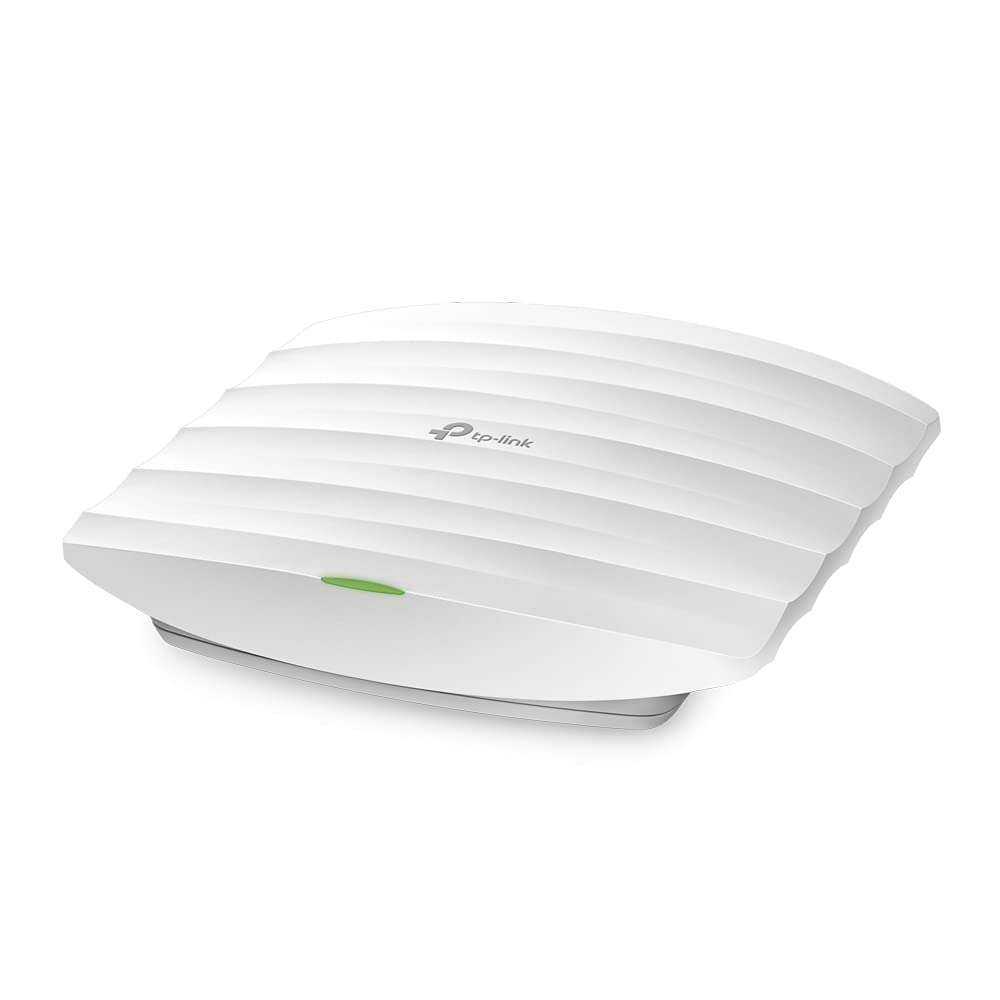

300Mbps Wireless N Ceiling Mount Access Point
EAP115
Features:
Omada SDN Smarter Cloud Solution for Business Networking:
- Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. Hassle-Free Centralised Cloud Management:

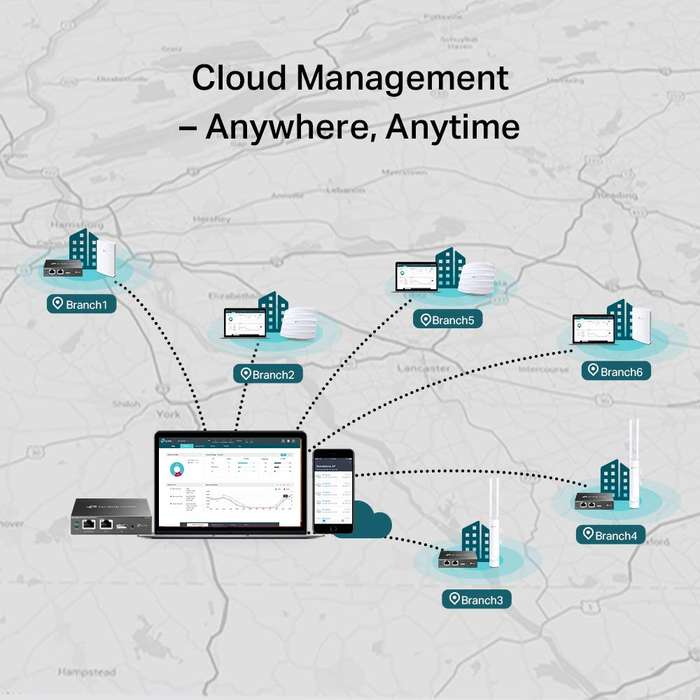

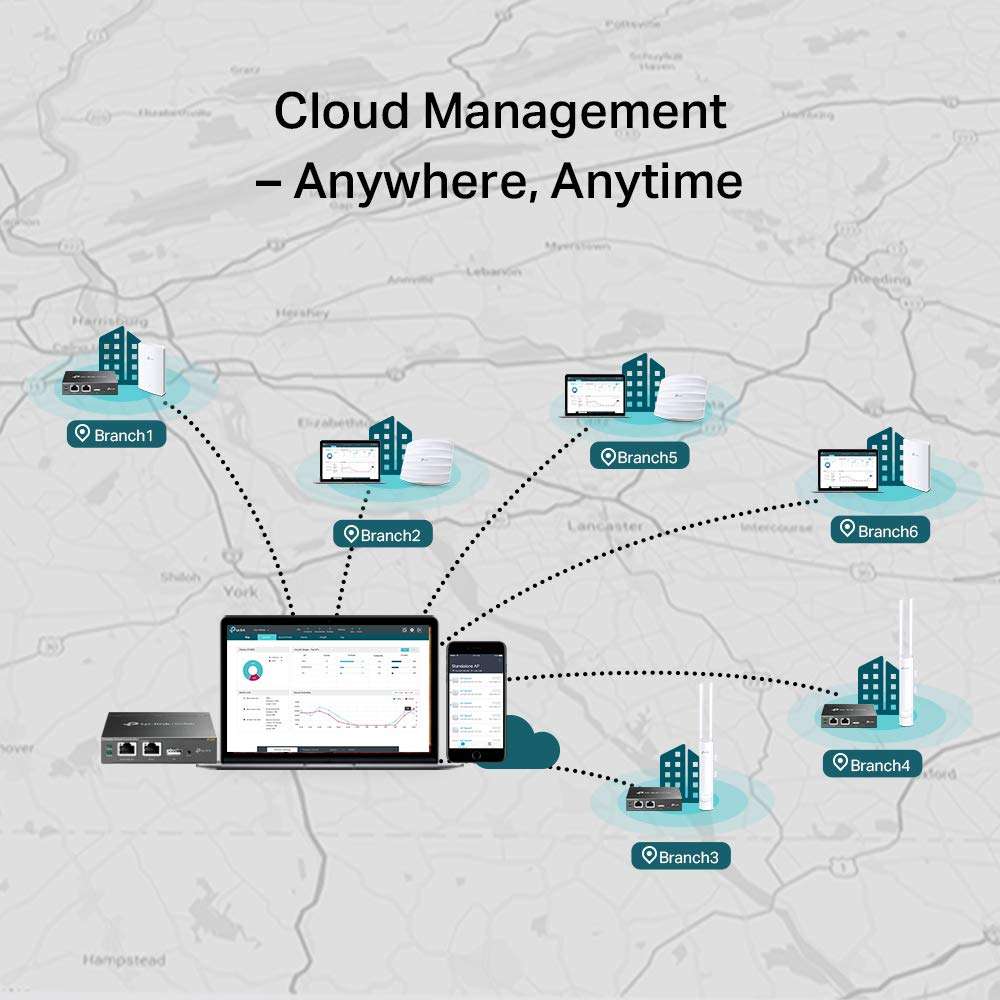

- 100% centralised cloud management of whole network from different sitesall controlled from a single interface anywhere, anytime.
Captive Portal - Guest Network with Facebook and SMS Support:
- The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE: Timesaving and Flexible Deployment

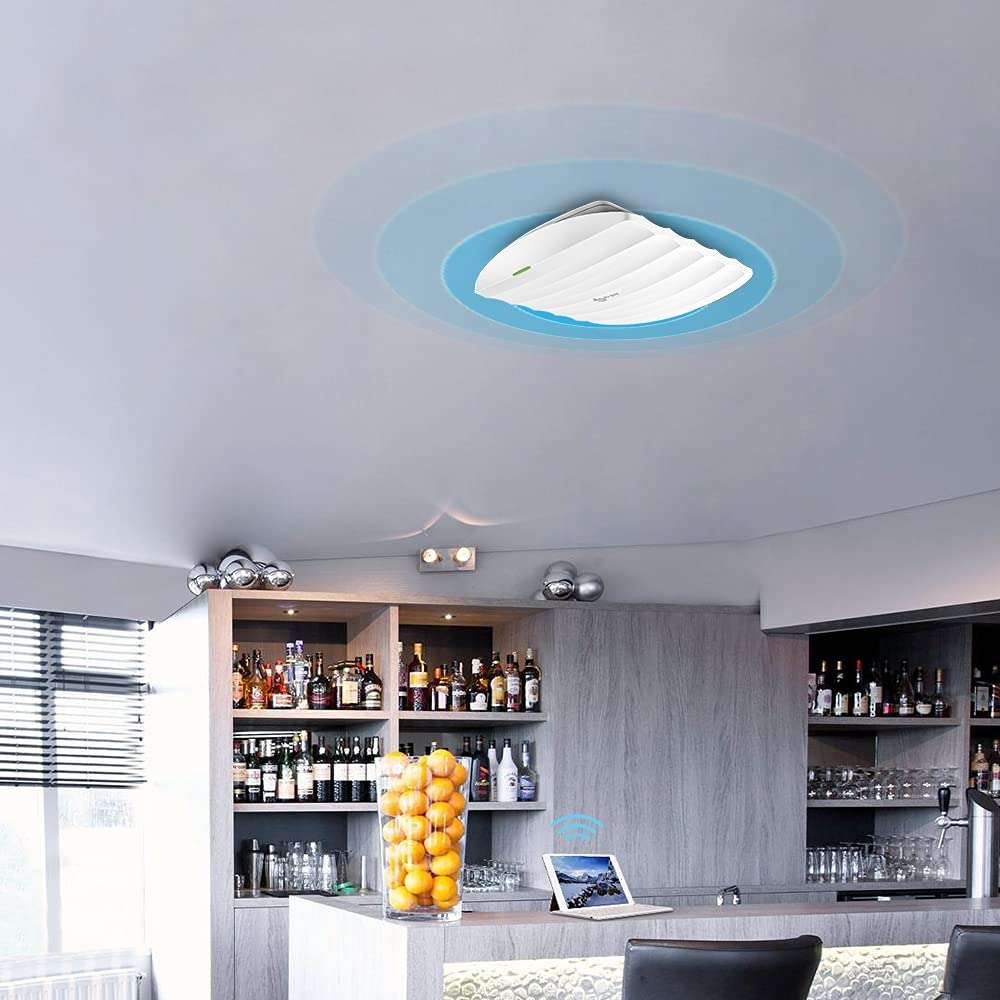

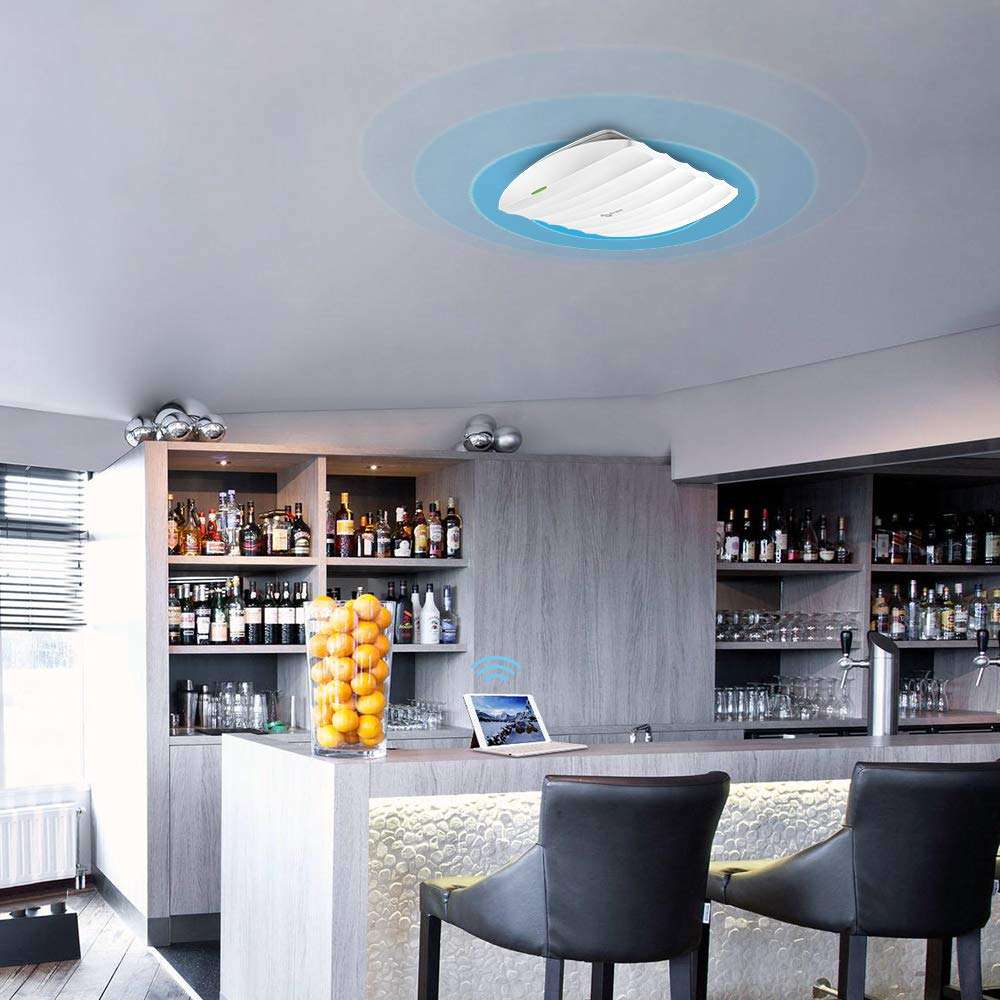

- The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize cable clutter. Its one more hardwiring hassle you dont have to worry about when operating your centralised management system.

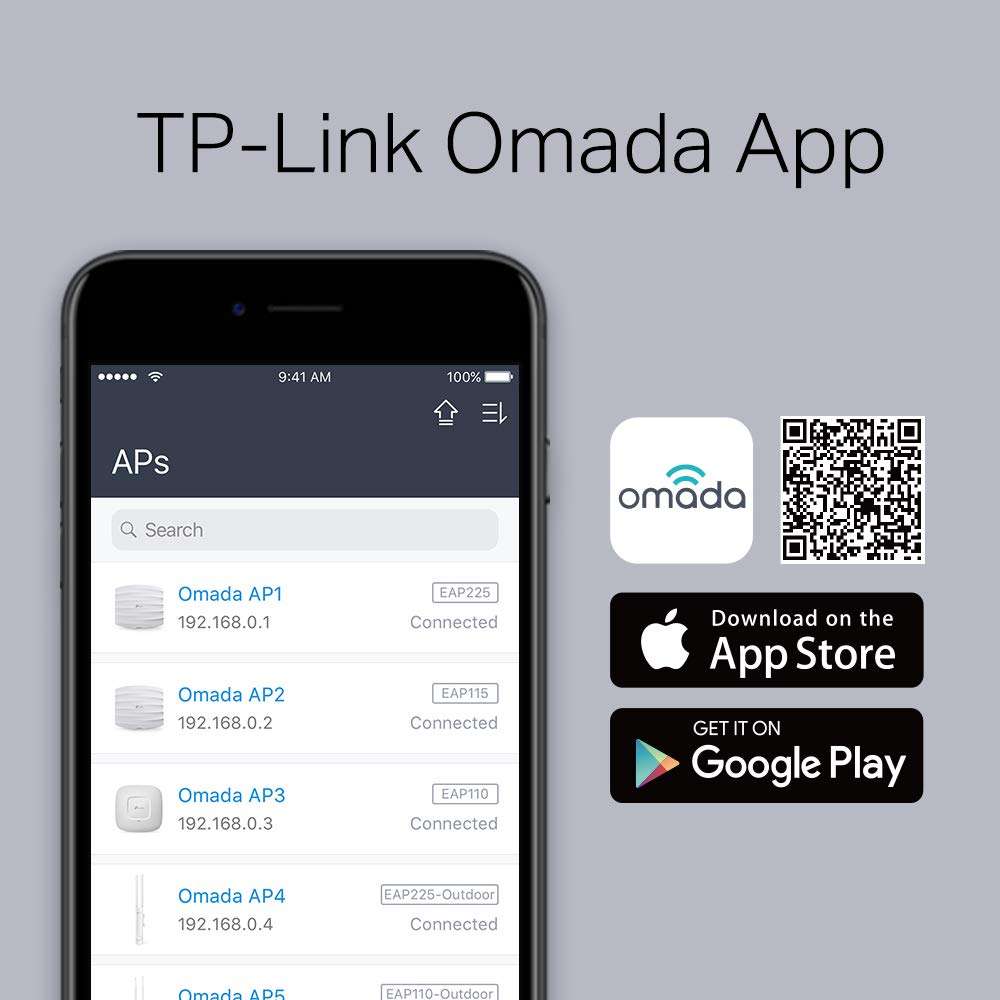

Easy Management with the Omada App:
- Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
NOTE:
1/ Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of a) environmental factors, including building materials, physical objects, and obstacles, b) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and c) client limitations, including rated performance, location, connection, quality, and client condition.
2/ Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
Specifications:
Hardware Features
- Interface: 1 x Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)
- Button: Reset
- Power Supply: PoE or external 9VDC/0.6A power supply
- Power Consumption: 2.8W
- Antenna Type: 2 x Internal 4dBi Omni
- Mounting: Ceiling /Wall Mounting (Kits included)
Wireless Features
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4 2.4835GHz
- Signal Rate:
1) 11n: Up to 300Mbps (dynamic)
2) 11g: Up to 54Mbps(dynamic)
3) 11b: Up to 11Mbps(dynamic)
- Reception Sensitivity:
a) 300M: -71dBm@10% PER
b) 150M: -75dBm@10% PER
c) 54M: -78dBm@10% PER
d) 11M: -93dBm@8% PER
e) 6M: -92dBm@10% PER
f) 1M: -96dBm@8% PER
- Wireless Functions:
1) Multiple SSIDs (Up to 8 SSIDs)
2) Enable/Disable Wireless Radio
3) Automatic Channel Assignment
4) Transmit Power Control Adjust Transmit Power on dBm)
5) QoS (WMM)
6) Rate Limit
7) Reboot Schedule
8) Wireless Schedule
9) Wireless Statistics based on SSID/AP/Client
- Wireless Security:
a) Captive Portal Authentication
b) Access Control
c) Wireless Mac Address Filtering
d) Wireless Isolation Between Clients
e) SSID to VLAN Mapping
f) Rogue AP Detection
g) 802.1X Support
h) 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
- Transmission Power: CE
Management
- Omada App: Yes
- Centralized Management:
1) Omada Cloud-Based Controller
2) Omada Hardware Controller (OC300)
3) Omada Hardware Controller (OC200)
4) Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- EAP Controller Software
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- Management VLAN: Yes
Other
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows 10/8/7/Vista/XP
- Environment:
1/ Operating Temperature: 0 degree Celsius 40 degree Celsius
2/ Storage Temperature: -40 degree Celsius 70 degree Celsius
3/ Operating Humidity: 10% 90 % non-condensing
4/ Storage Humidity: 5% 90% non-condensing
What's in the box
1 x EAP115 300Mbps Wireless N Ceiling Mount Access Point
1 x Power Adapter
1 x Mounting Kits
1 x Installation Guide
Warranty: 12 Months Warranty
