300Mbps Wireless N Wall-Plate Access Point
Easy-mount construction allows installation into any standard EU-type data wall-box
Compact, low-profile design fits discreetly with any existing interior style
Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
Support Power over Ethernet (802.3af) for convenient and affordable installation
Enterprise class Wi-Fi security helps to decrease network security threats
Captive portal provides one convenient method of authentication for Wi-Fi guests
Installation Made Easy
Detach the faceplate of the junction box with a screwdriver.
Remove the faceplate of the EAP.

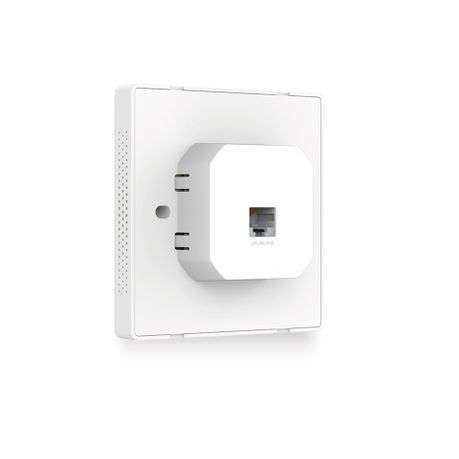

Connect an in-wall Ethernet cable to the Uplink+POE port.
Secure the access point to the wall using the nails provided.
Press the faceplate back into position.
Perfectly Formed

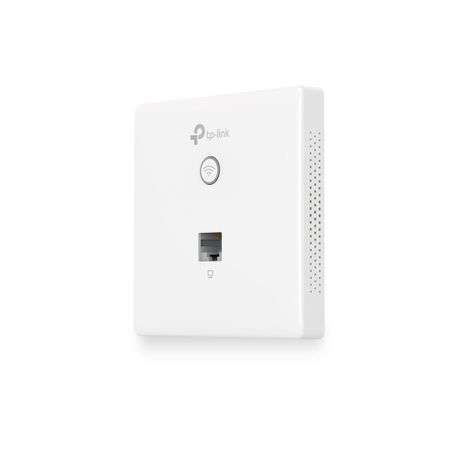

The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that's just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there's no need for additional wiring. Simply plug in existing Ethernet cables and you're ready to go.
Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. TP-Link's free Auranet Controller Software provides an intuitive management interface with no special training required. Wi-Fi management has never been so simple or cost-effective.
Customized Guest Authentication with Captive Portal
Captive portal provides a convenient method of authentication for Wi-Fi guests. Choose from a range of authentication options and create a unique authentication page to advertise your business to users.
Specifications
Hardware Features
Interface : 10/100Mbps Ethernet (RJ-45) Port 2
Physical Security Lock : None
Button LED/Wi-Fi Button : RESET
Power Supply : PoE(IEEE 802.3af)
Power Consumption : 2.8 W
Dimensions ( W x D x H ) : 3.4×3.4×1.2 in. (86.886.830.2 mm)
Antenna Type : Internal 21.8dBi Omni
Mounting : Wall Plate Mounting
Watch Dog : Yes
Hardware Watch Dog : Yes
Wireless Feature
Wireless Standards : IEEE 802.11n/g/b/a
Frequency : 2.4GHz
Signal Rate :
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power : CE?
<15dBm(2.4GHz)
Wireless Functions :
Multiple SSIDs?Up to 8 SSIDs?
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Management
Omada Cloud Access : Yes
Omada App : Yes
Omada Cloud Controller : Yes
Omada Controller Software : Yes
EAP Controller Software : Yes
Email Alerts : Yes
LED ON/OFF Control : Yes
Management MAC Access Control : Yes
SNMP : v1,v2c
System Logging Local/Remote Syslog : Local/Remote Syslog
Telnet : Yes
SSH : Yes
Web-based Management : HTTP/HTTPS
L3 Management : Yes
Multi-site Management : Yes
Management VLAN : Yes
Others
Certification : CE, RoHS
System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment:
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box
TP-Link 300MBps 2.4Ghz Wireless N Fe Access Point
