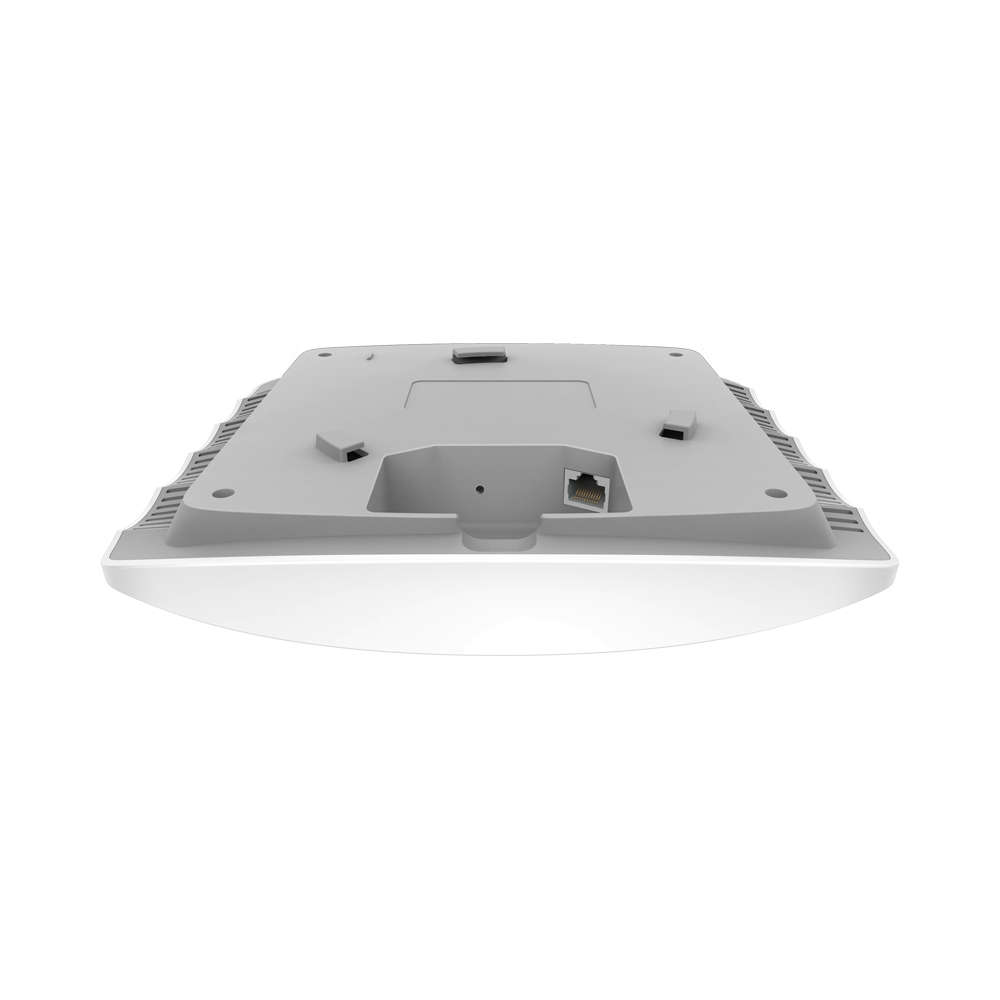

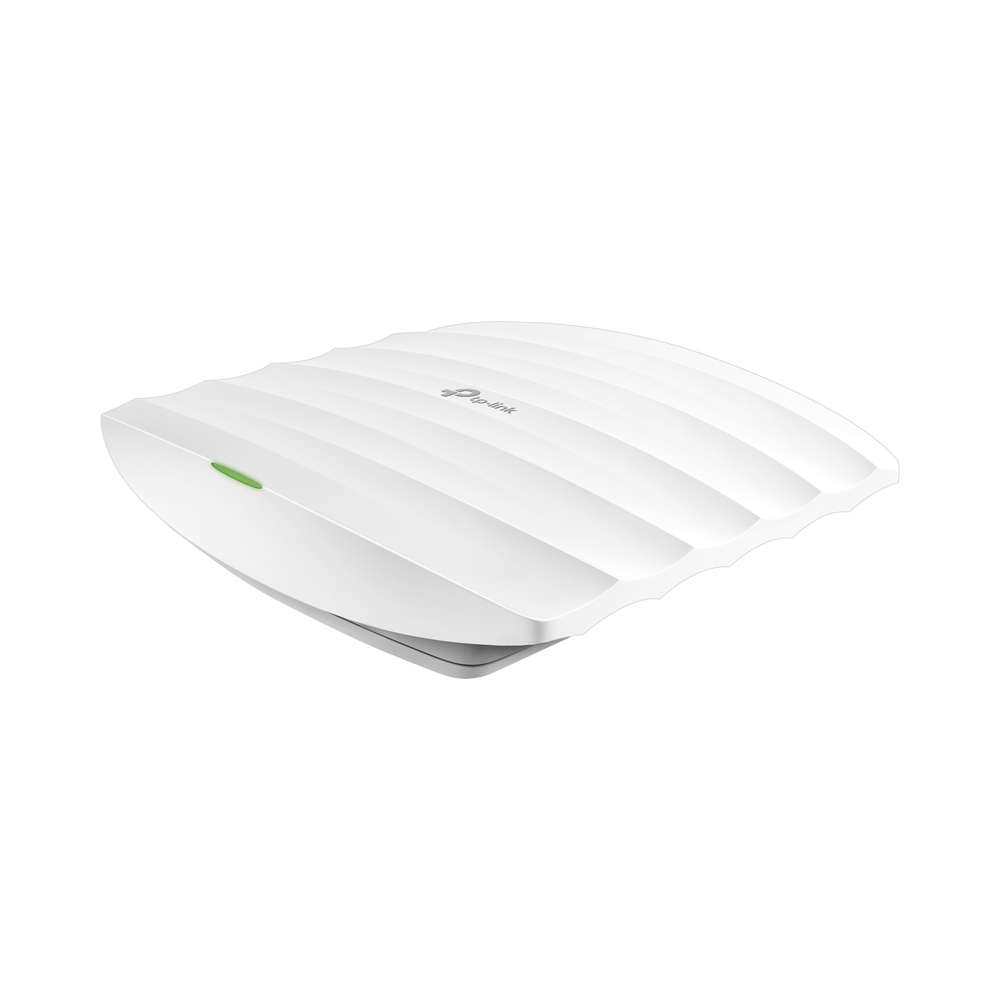

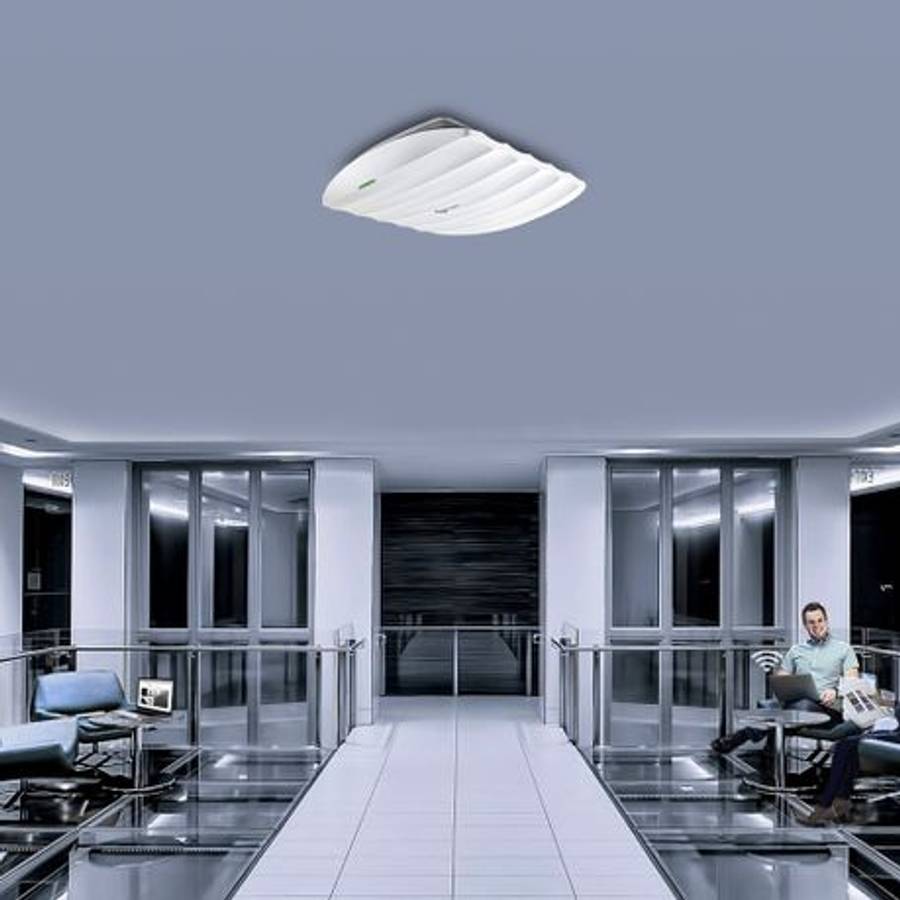

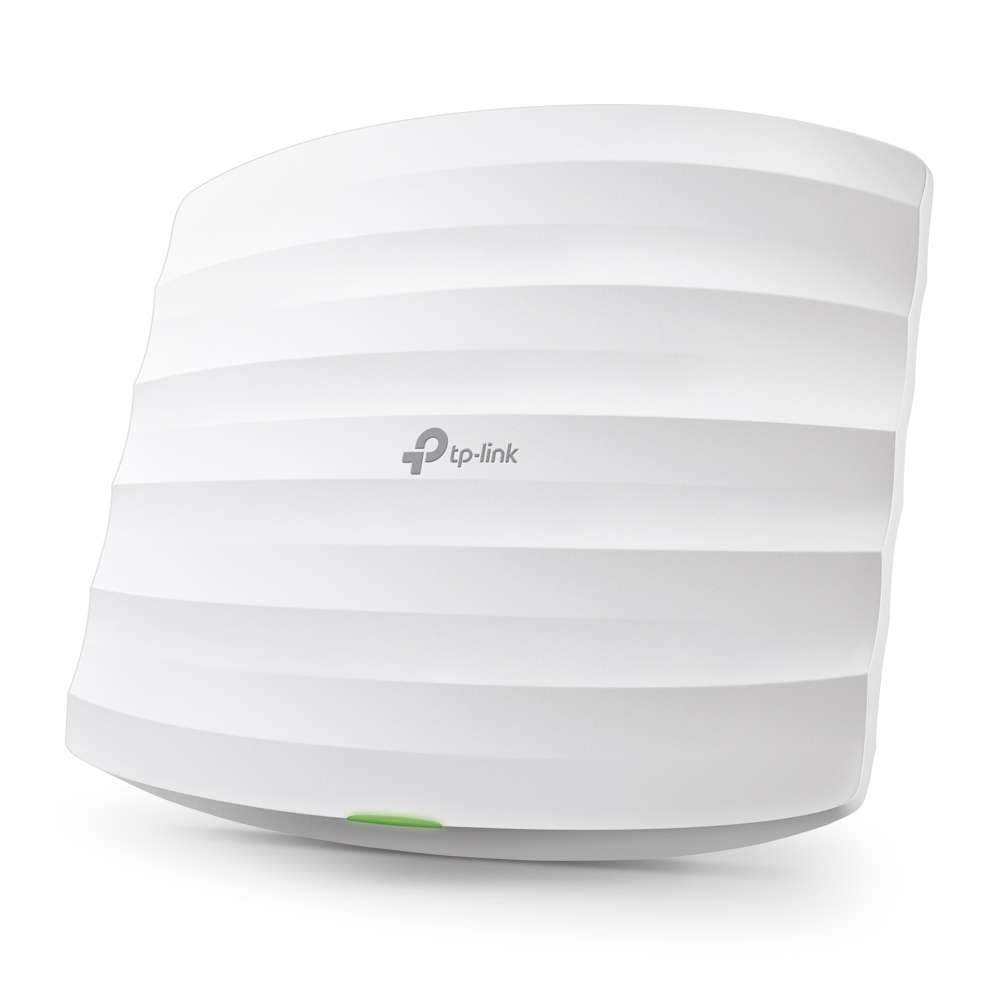

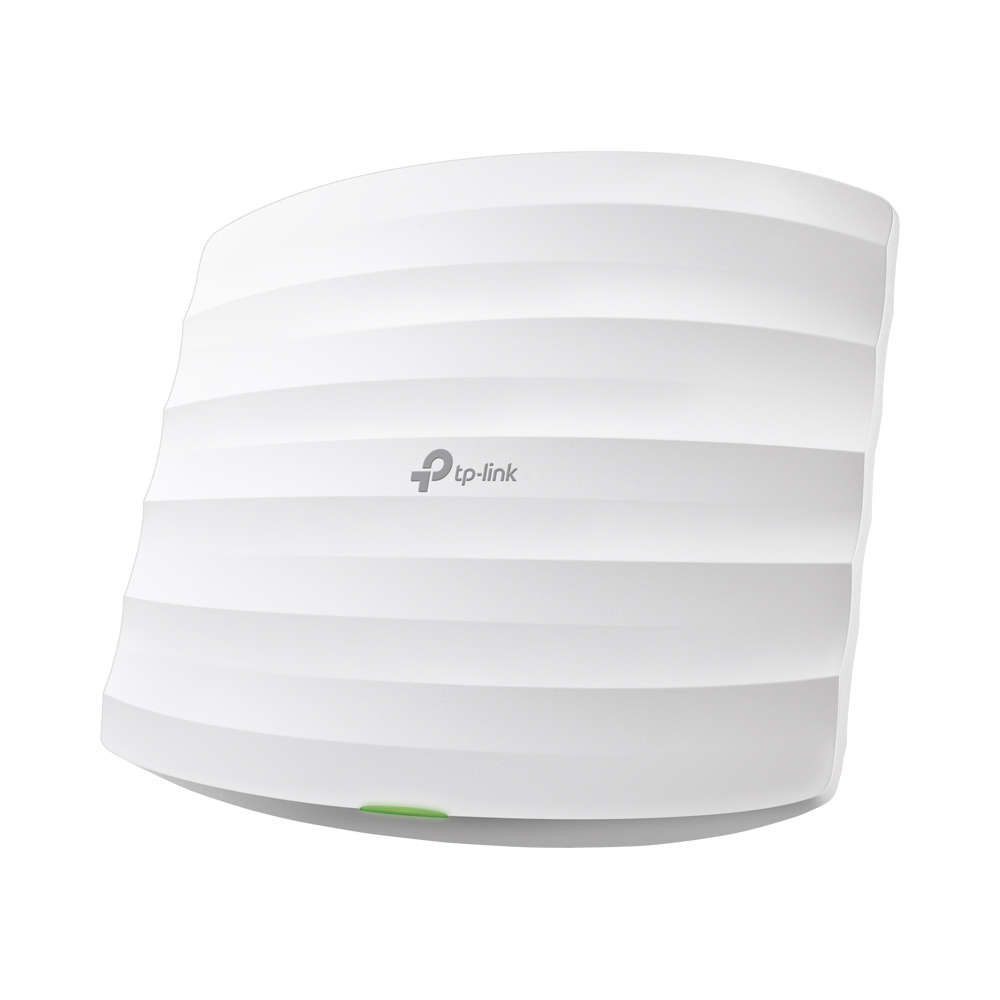

OverviewEAP223AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access PointFast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) , Centralized Cloud Management, and Intelligent Monitoring.Centralized Management: Cloud access and Omada app for ultra convenience and easy management.Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.xPoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations.Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.SpecificationsHARDWARE FEATURESInterface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)Physical Security Lock YesButton ResetPower Supply 802.3af/at PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)Max. Power Consumption EU: 9.7WUS: 12.1WDimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)Antenna 3 Internal Omni 2.4 GHz: 4 dBi 5 GHz: 5 dBiMounting Ceiling /Wall Mounting (Kits included)WIRELESS FEATURESWireless Standards IEEE 802.11ac/n/g/b/aFrequency 2.4 GHz and 5 GHzSignal Rate 5 GHz:Up to 867 Mbps 2.4 GHz:Up to 450 MbpsWireless Functions Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming(802.11k/v/r)x Omada Meshx Band Steering Load Balance MU-MIMO Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/ClientWireless Security Captive Portal Authenticationx Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X SupportTransmission Power CE: 20 dBm(2.4 GHz, EIRP) 23 dBm(5 GHz, Band 1 & Band 2,EIRP) 27 dBm(5 GHz, Band 3,EIRP) FCC: 24 dBm(2.4 GHz) 22 dBm(5 GHz)Management FeaturesOmada App YesCentralized Management Omada Cloud-Based Controller Omada Hardware Controller Omada Software ControllerCloud Access Yes. Require the use of an Omada controller.Email Alerts YesLED ON/OFF Control YesManagement MAC Access Control YesSNMP v1,v2cSystem Logging Local/Remote Syslog Local/Remote SyslogSSH YesWeb-based Management HTTP/HTTPSL3 Management YesMulti-site Management YesManagement VLAN YesZero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based ControllerOTHERSCertification CE, FCC, RoHSPackage Content AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223 Mounting Kits Installation GuideSystem Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, LinuxEnvironment Operating Temperature: 0-40 (32-104 ) Storage Temperature: -40-70 (-40-158 ) Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensingWhat's in the box1 x TL-EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point1 x Mounting Kits1 x Installation Guide
