New - Open Box
Durable, weatherproof enclosure for outdoor Wi-Fi applications.
Up to 1200Mbps with 2×2 MIMO technology.
High transmission power and high gain antennas provide a long-range coverage area.
Free Omada Controller software enables administrators easily manage hundreds of EAPs.
Captive portal provides a convenient method for guest authentication.
Facebook Wi-Fi and SMS authentication help to boost your business.
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation.
11AC Wave 2 Makes Wi-Fi Go Further

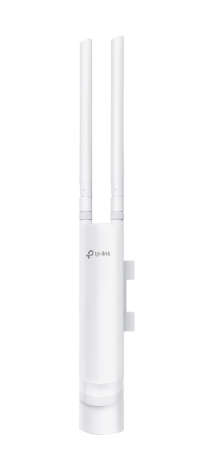

EAP225-OUTDOOR
Features:
Gigabit Wi-Fi Speeds with MU-MIMO Technology:
- EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.
Excellent Hardware Designs:
- With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas:
- EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications:
- EAP225-Outdoor is just similar to a cellphone (with dimension 21.5 × 4.6 × 2.7mm)
Multiple PoE Options for Easy Installation:
- EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.
Excellent Hardware Designs:
- With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Flexible Deployment:
- EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.
Wi-Fi That Goes the Distance:
- With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+ at 2.4GHz and 300m+ at 5GHz in outdoor settings.
(NB: The distance is based on field tests. Real transmission range may vary, according to environment, receiving device, etc.)
Specially Designed Weatherproof Enclosure for Outdoor Environment:
- Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
1/ 4KV Lightning Protection and 15KV ESD Protection
2/ No Ingress of Dust
3/ Water Proof Enclosure
Efficient Centralized Network Management:
- With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. Its network management as it should be - efficient and intuitive.
Specifications:
Hardware Features

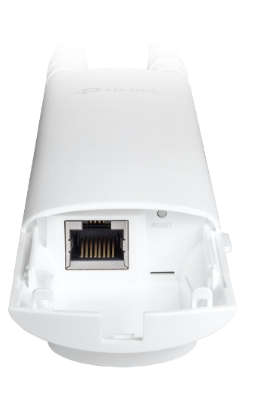

- Interface: 1 x Gigabit Ethernet (RJ-45) Port (Support 802.3af PoE and Passive PoE)
- Button: Reset
- Power Supply:
1/ 802.3af/A PoE
2/ 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 10.5W
- Antenna: 2.4GHz: 2 x 3dBi ; 5GHz: 2 x 4dBi
- Weatherproof Enclosure: IP65

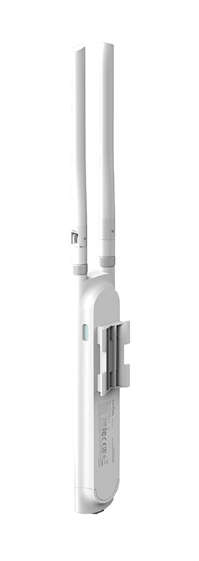

- Mounting: Pole/Wall Mounting (Kits included)
- Hardware Watch Dog: Yes

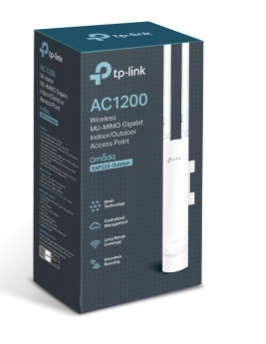

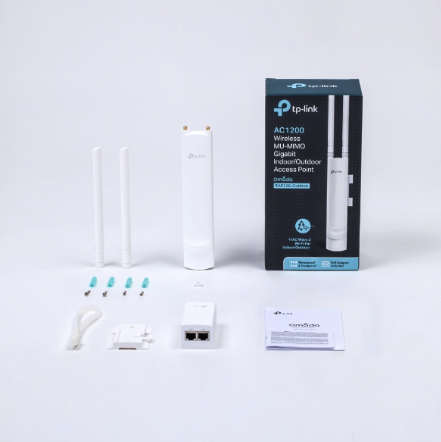

What's in the box
1 x EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
1 x Power Adapter
1 x Mounting Kits
1 x Installation Guide
