Durable, weatherproof enclosure for outdoor Wi-Fi applications
Up to 1200Mbps with 2×2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Free Omada Controller software enables administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication
Facebook Wi-Fi and SMS anthentication help to boost your business
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
HARDWARE FEATURES

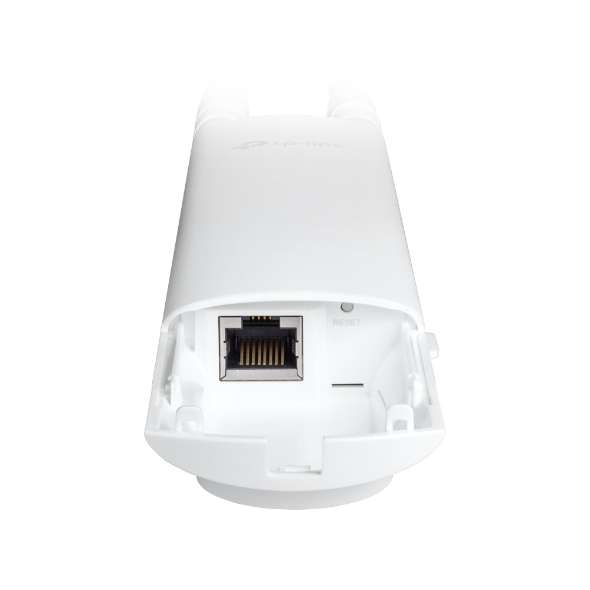

Interface Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button Reset
Power Supply 802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 10.5W
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure IP65

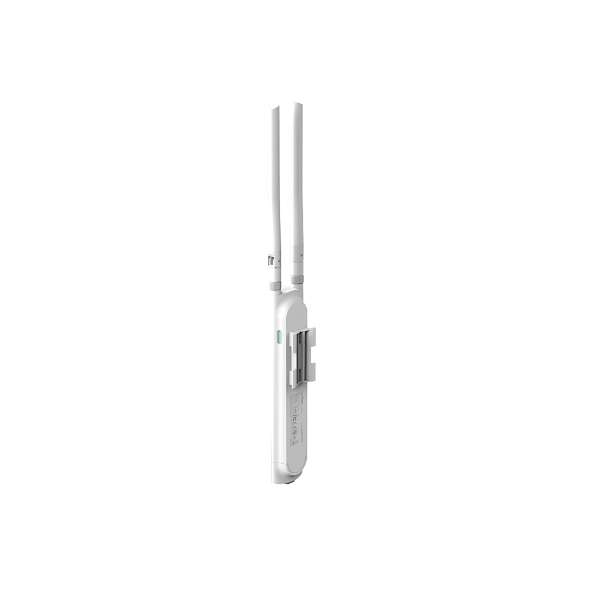

Mounting Pole/Wall Mounting (Kits included)
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Client Capacity 220+**
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs?Up to 16 SSIDs, 8 for each band?
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control ?Adjust Transmit Power on dBm?
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power CE: FCC: MANAGEMENT
Omada App Yes
Omada Cloud Controller Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE?FCC?RoHS

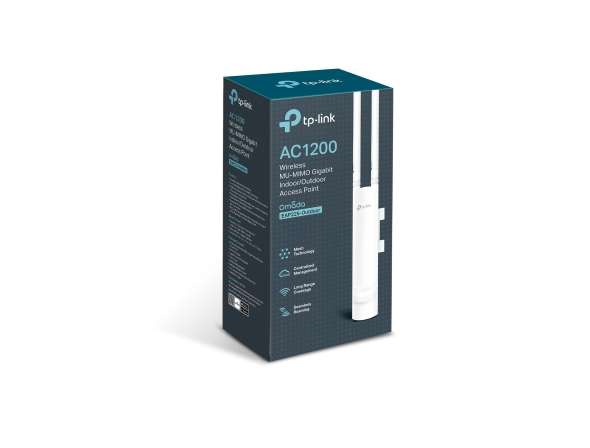

Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment Operating Temperature: -30?~70? (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
