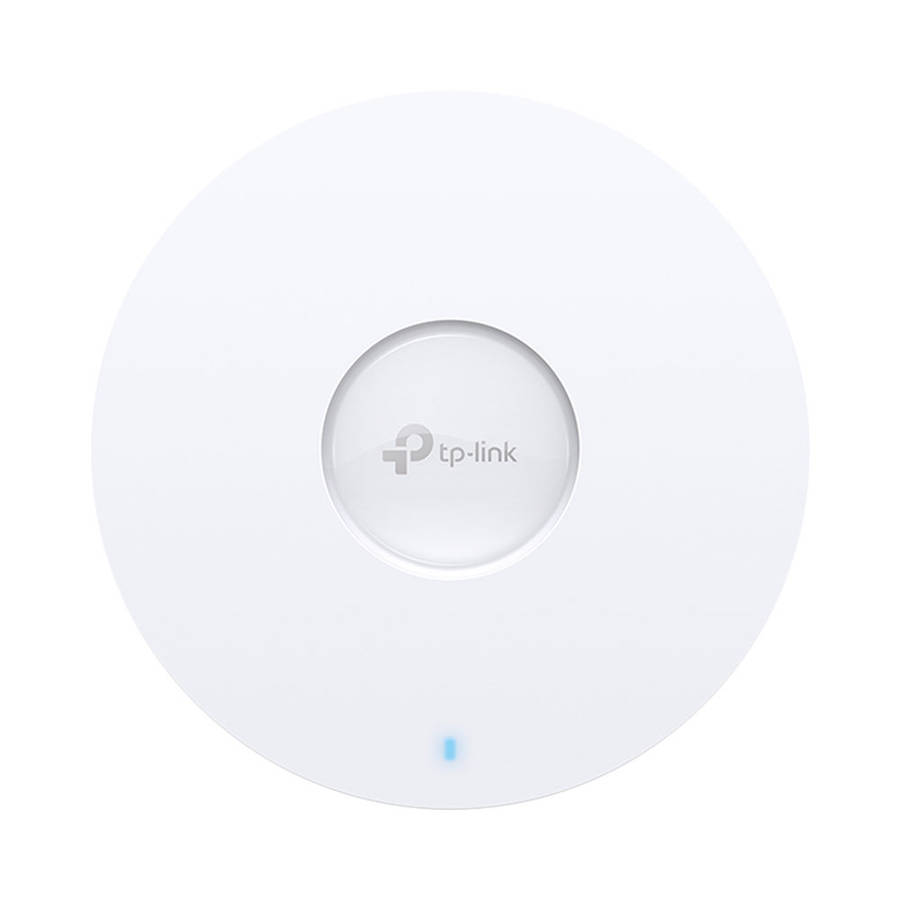

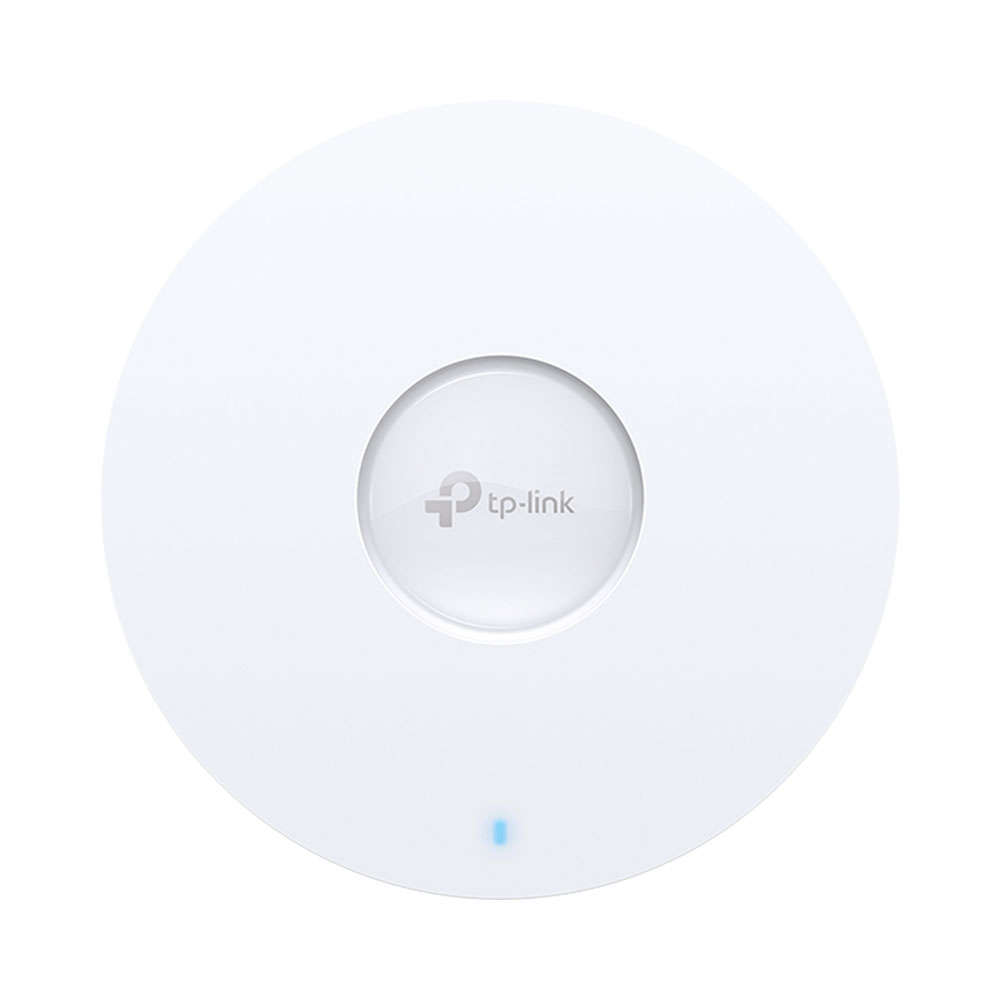

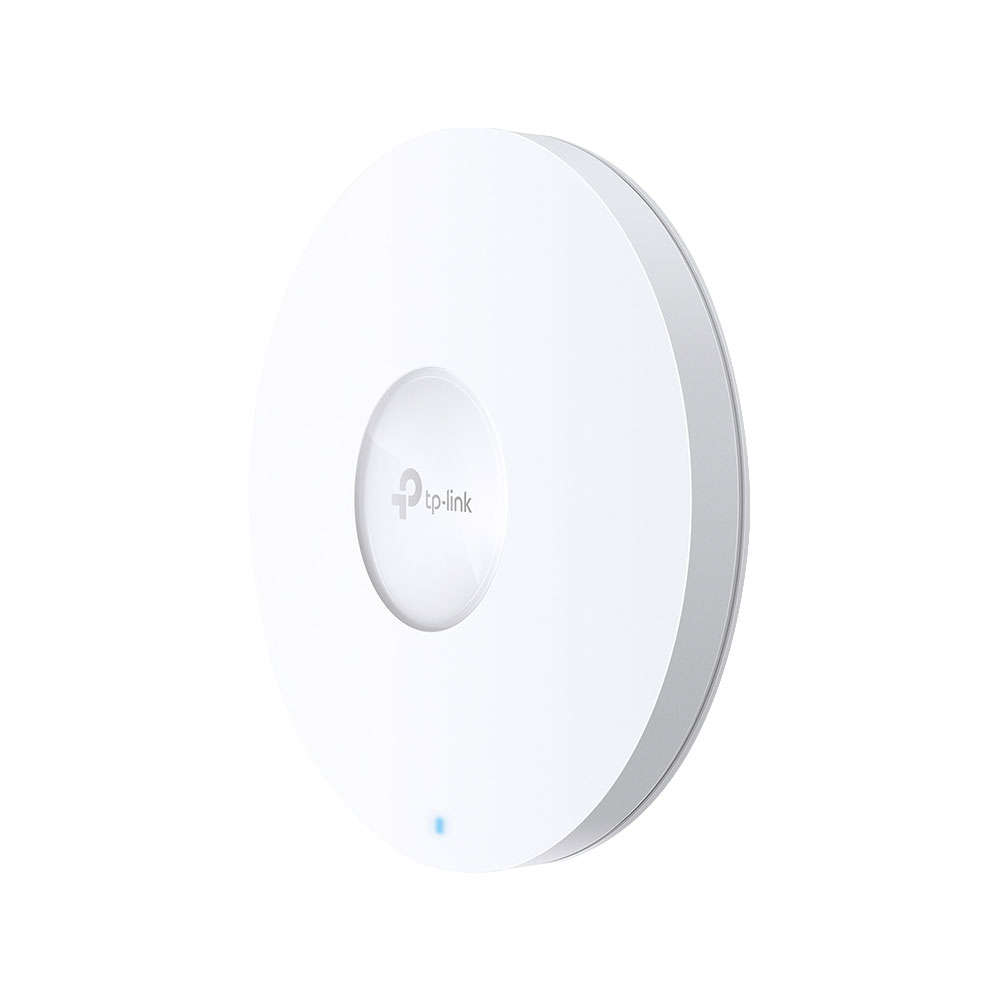

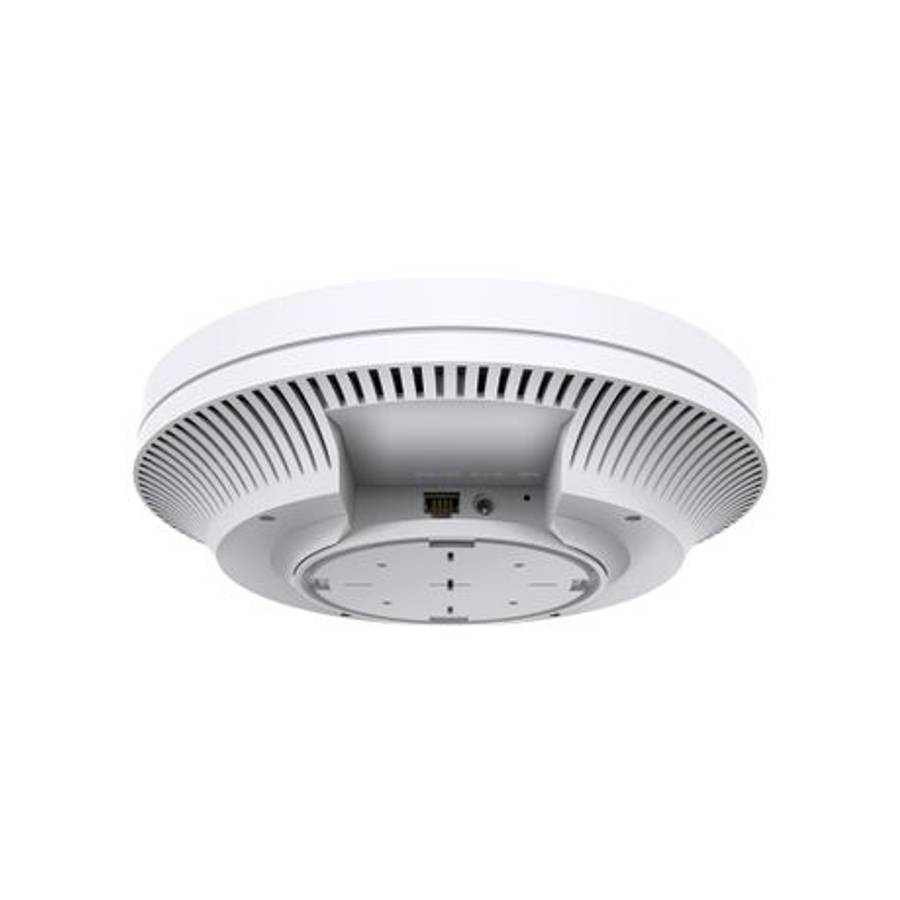

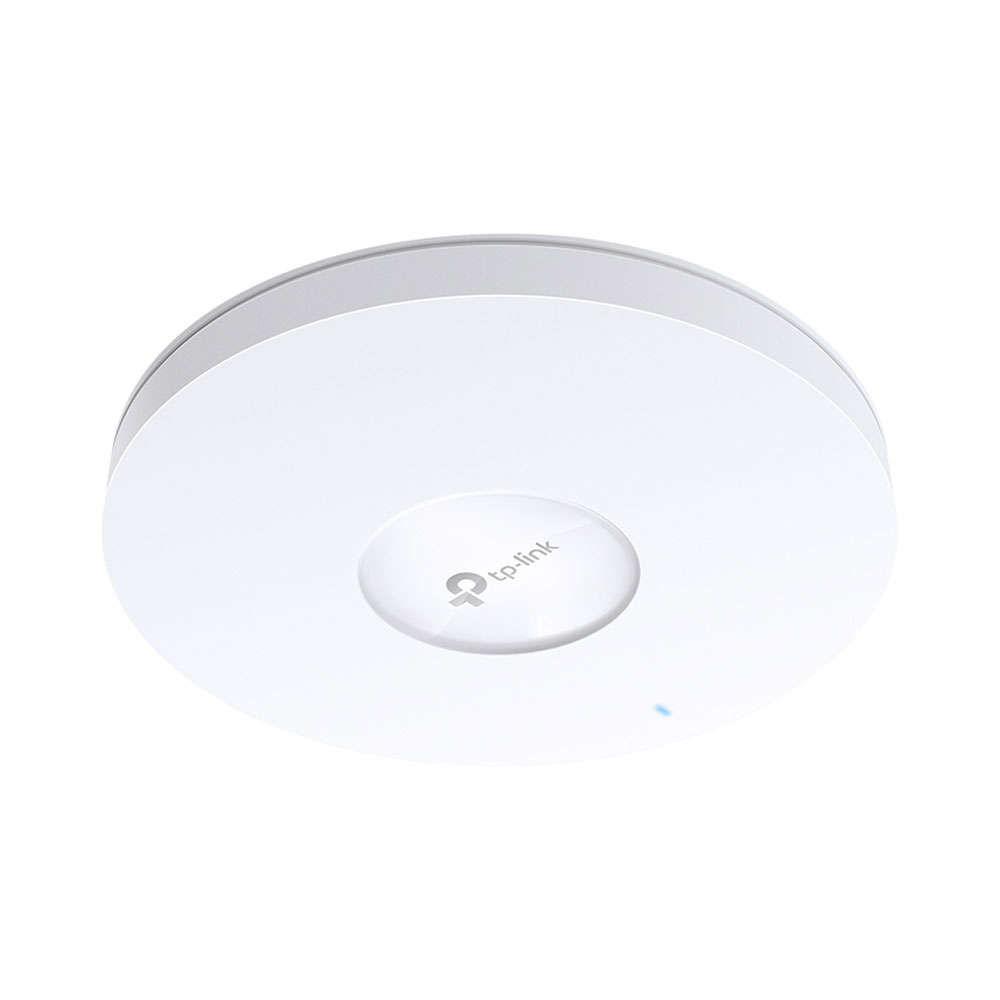

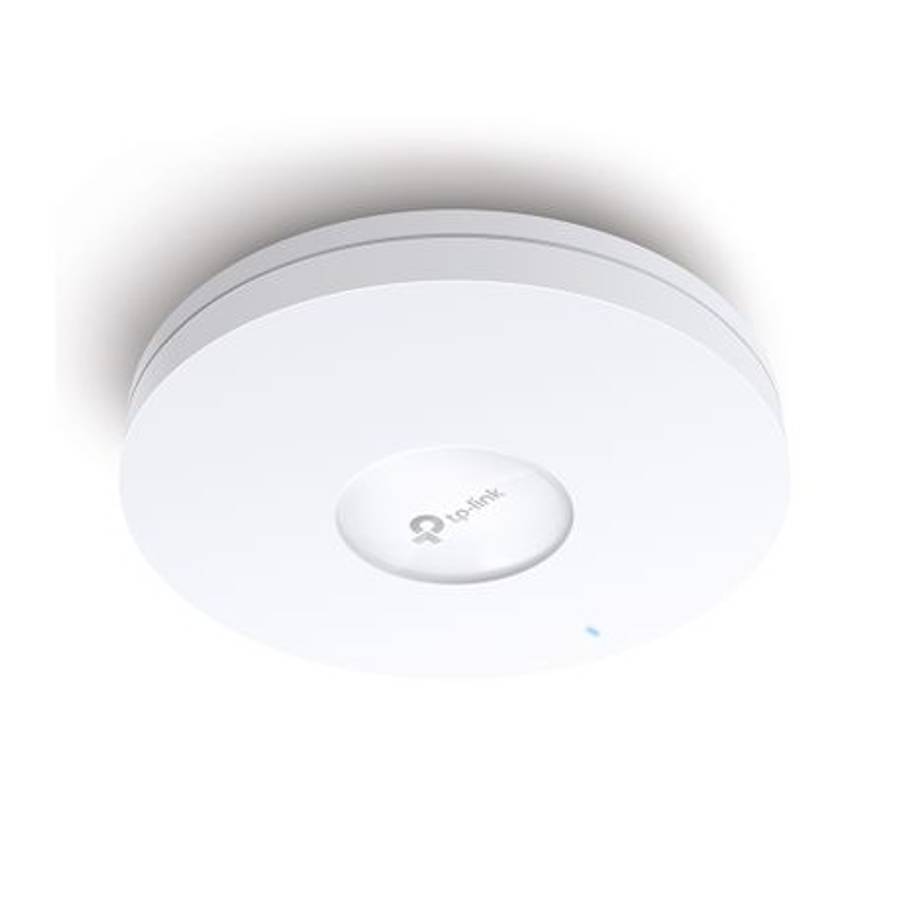

OverviewEAP610AX1800 Ceiling Mount WiFi 6 Access Point4-Stream Dual-Band Wi-Fi 6: 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. 1× Gigabit Port: Ensures fast connectivity throughout the network.Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network. Flexible Deployment and Easy Setup: Supports 802.3af PoE, Passive PoE, and DC power (adapter included) for versatile installation with one-click setup via Omada SDN.Advanced Features: Supports centralized management, Mesh, and Seamless Roaming. More Connections and Wider Coverage: Supports 250+ concurrent clientsxx and covers up to 1,250 ft (115 )x for reliable and extensive wireless connectivity.SpecificationsHARDWARE FEATURESInterface 1× Gigabit Ethernet PortButton ResetPower Supply V4: 802.3af PoE 48 V Passive PoE 12 V/1 A DC (Power Adapter included)Max. Power Consumption 10.9W (For PoE);9.9W (For DC)Dimensions ( W x D x H ) V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)Antenna Internal Omni Antenna 2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBiMounting Ceiling/Wall Mounting (Kits included) Junction Box MountingWIRELESS FEATURESCoverage 115 (1250 ft )xxxConcurrent Clients 250+xxWireless Standards IEEE 802.11ax/ac/n/g/b/aFrequency 2.4 GHz and 5 GHzSignal Rate 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 MbpsWireless Functions 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming(802.11k/v/r) Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/ClientWireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission Power CE:7-20 dBm(2.4 GHz, EIRP)7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP) ; 7-27 dBm (5 GHz U-NII-2C, EIRP) FCC:4-24 dBm (2.4 GHz)4-24 dBm (5 GHz, U-NII-1 & U-NII-3)Management FeaturesOmada App YesCentralized Management Omada Central (Cloud-Based) Omada Hardware Controller Omada Software ControllerCloud Access Yes. Require the use of an Omada controller.Email Alerts YesLED ON/OFF Control YesManagement MAC Access Control YesSNMP v1, v2c, v3System Logging Local/Remote Syslog Local/Remote SyslogSSH YesWeb-based Management HTTP/HTTPSL3 Management YesMulti-site Management YesManagement VLAN YesZero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based ControllerOTHERSCertification CE, FCC, RoHSPackage Content EAP610 Power Adapter Ceiling/Wall/Junction Box Mounting Kits Installation GuideSystem Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, LinuxEnvironment Operating Temperature: 0-40 (32-104 ) Storage Temperature: -40-70 (-40-158 ) Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensingWhat's in the box1 x Power Adapter1 x Set of Ceiling/Wall/Junction Box Mounting Kits1 x Installation Guide
