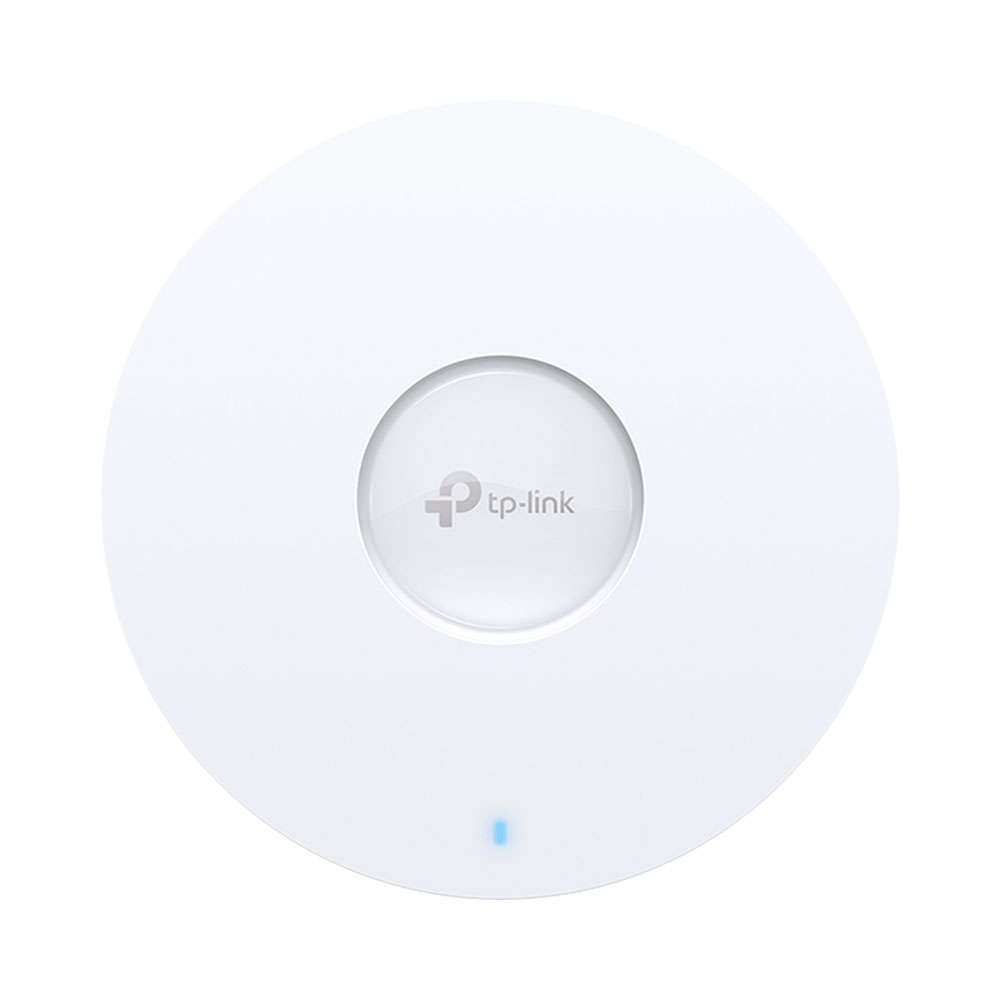

TP-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
Easily Upgrade to Business Wi-Fi 6 Network
FEATURES:
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE |
| 12 V / 1 A DC (Power Adapter included) | |
| Power Consumption | EU: 12.8 W (For PoE); 10.8 W (for DC) |
| Dimensions ( W x D x H ) | 243 x 243 x 64mm |
| Antenna Type | Internal Omni |
| 2.4 GHz: 2x 4 dBi | |
| 5 GHz: 2x 5 dBi | |
| Mounting | Ceiling/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 1201 Mbps |
| 2.4 GHz: Up to 574 Mbps | |
| Wireless Functions | 1024-QAM |
| 4x Longer OFDM Symbol | |
| OFDMA | |
| Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS(WMM) | |
| MU-MIMO | |
| Seamless Roaming | |
| Omada Mesh | |
| Band Steering | |
| Load Balance | |
| Airtime Fairness | |
| Beamforming | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, EIRP) | |
| FCC: | |
| <25 dBm (2.4 GHz) | |
| <25 dBm (5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) |
| Omada Hardware Controller OC300 | |
| Omada Hardware Controller OC200 | |
| Omada Software Controller | |
| Cloud Access | Yes, through |
| OC300 | |
| OC200 | |
| Omada Software Controller | |
| Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) | |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP610 |
| Power Adapter | |
| Ceiling/Wall Mounting Kits | |
| Installation Guide |
