HARDWARE FEATURES | |
---|---|

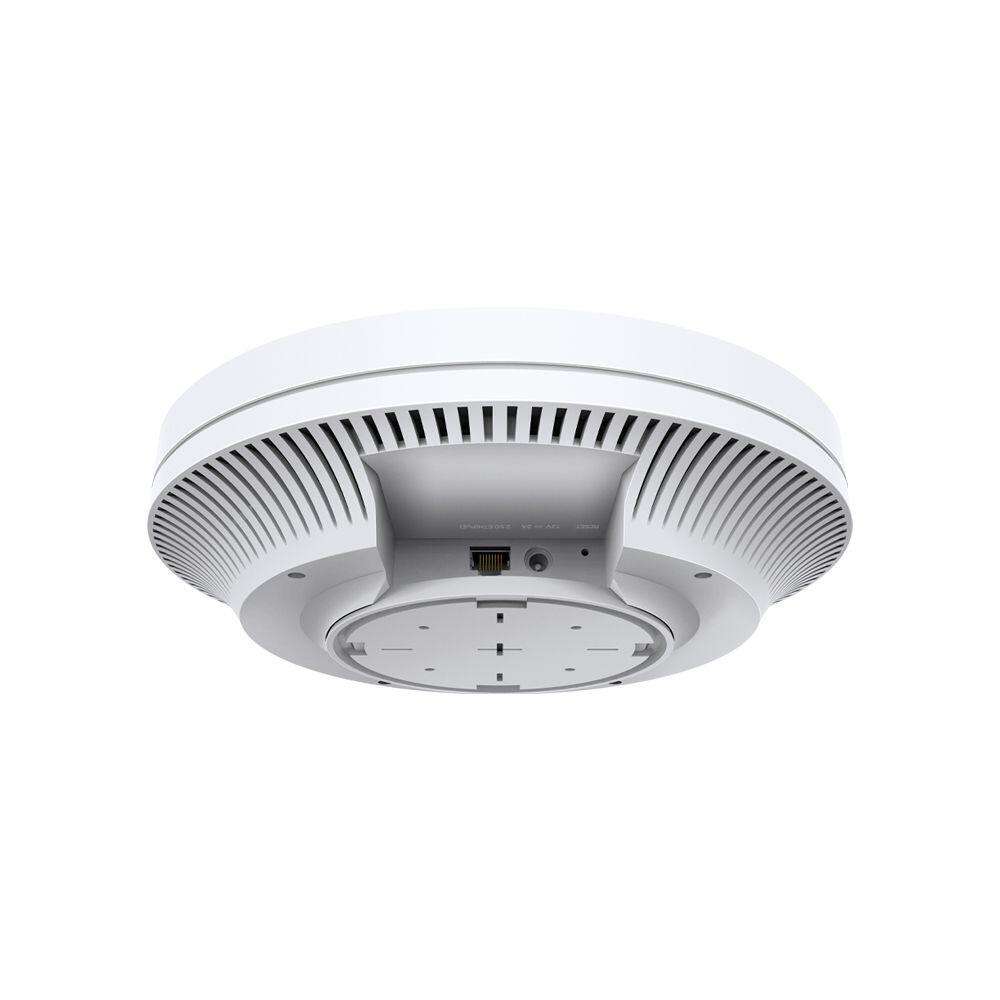

Interface | 1× Gigabit Ethernet (RJ-45) Port |
Button | Reset |
Power Supply | V2 and above: 802.3at PoE 48 V Passive PoE 12 V / 1.5 A DC (Power Adapter included) |
Power Consumption | V2 and above: EU: 13.7 W (For PoE); 12.3 W (for DC) US: 14.2 W (For PoE); 12.8 W (for DC) |
Dimensions ( W x D x H ) | V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
Antenna Type | Internal Omni Antenna 2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBi |

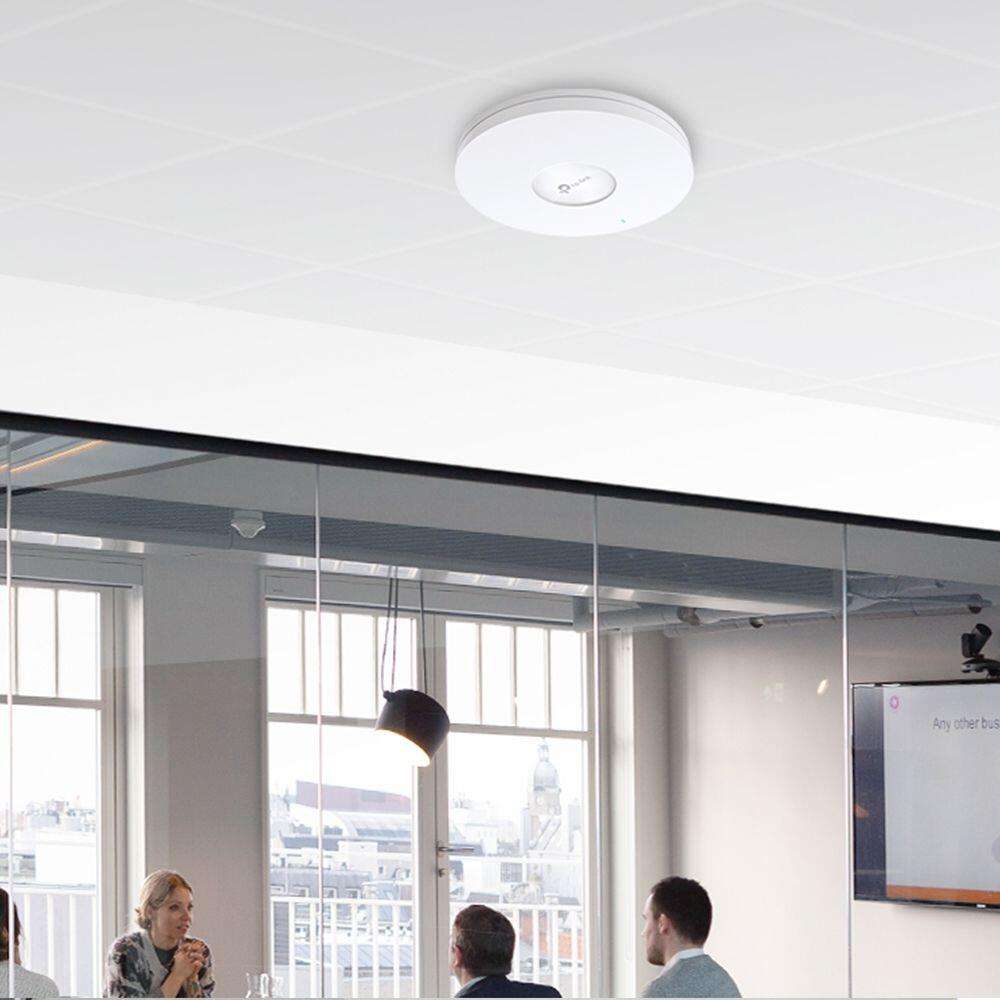

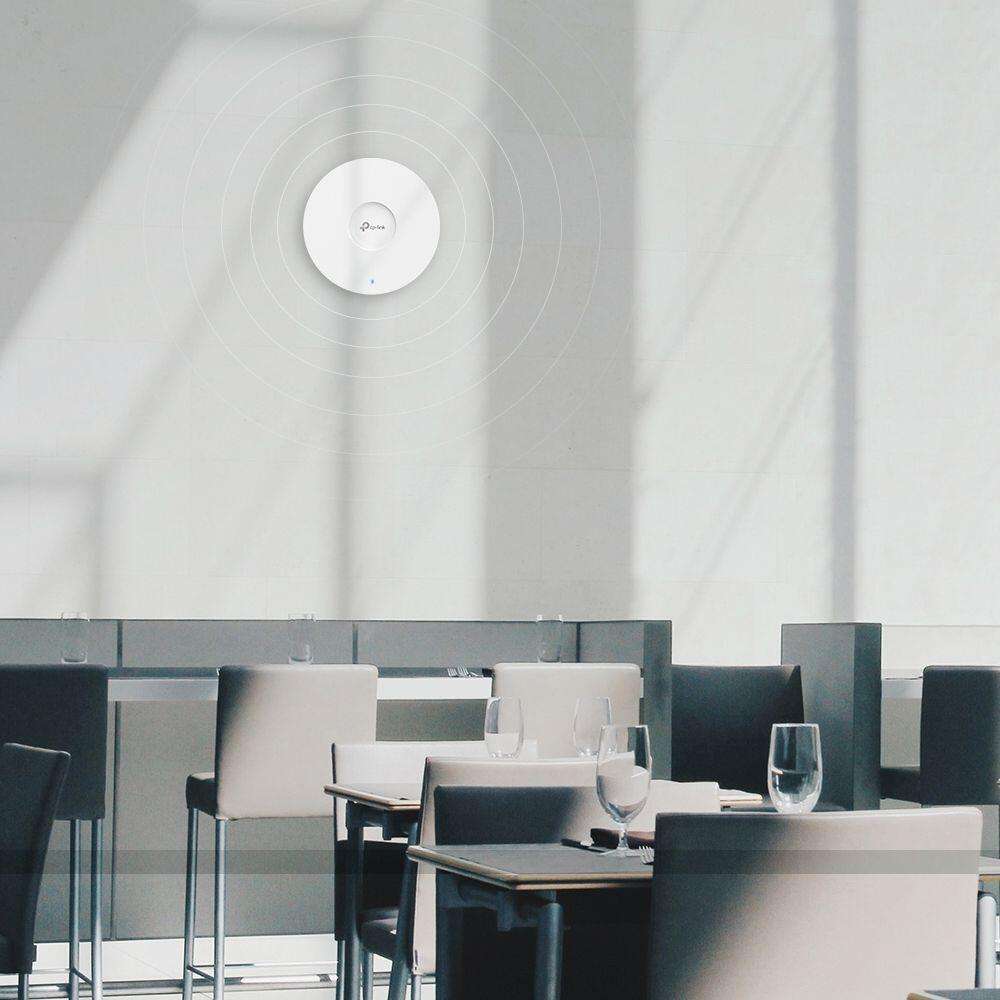

Mounting | Ceiling /Wall Mounting (Kits included) Junction Box Mounting |
WIRELESS FEATURES | |
---|---|
Wireless Client Capacity | 250+** |
Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps |
Wireless Functions | 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Transmission Power | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) FCC: |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller OC300 Omada Hardware Controller OC200 Omada Software Controller |
Cloud Access | Yes, through OC300 OC200 Omada Software Controller Omada Cloud-Based Controller |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |

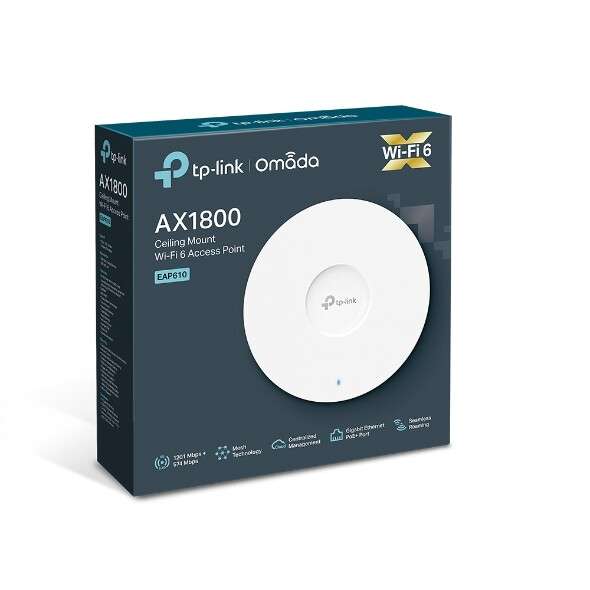

Package Contents | EAP610 Power Adapter Ceiling/ Wall Mounting Kits Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
Environment | Operating Temperature: 040 (32104 ) Storage Temperature: -4070 (-40158 ) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
