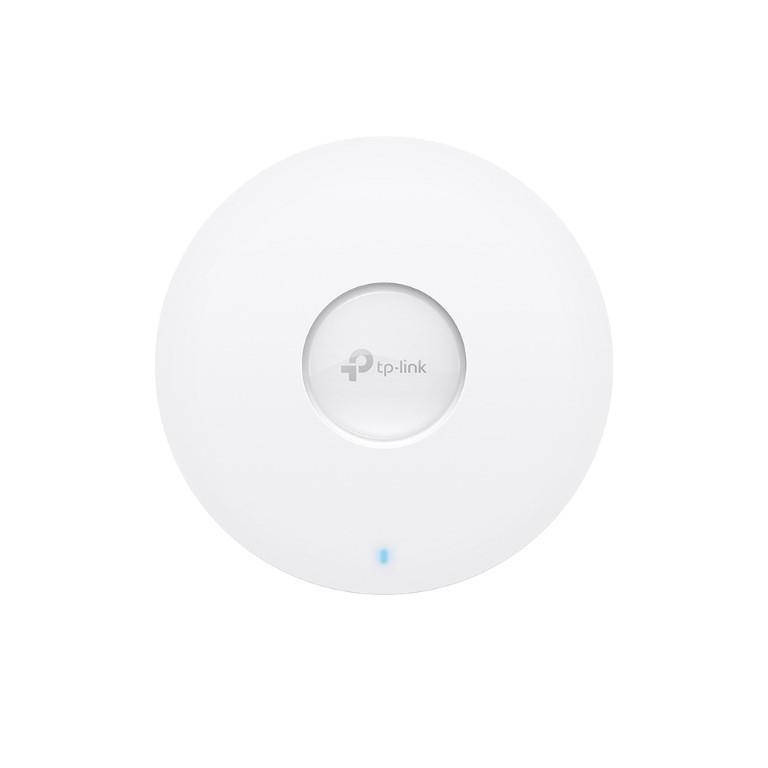

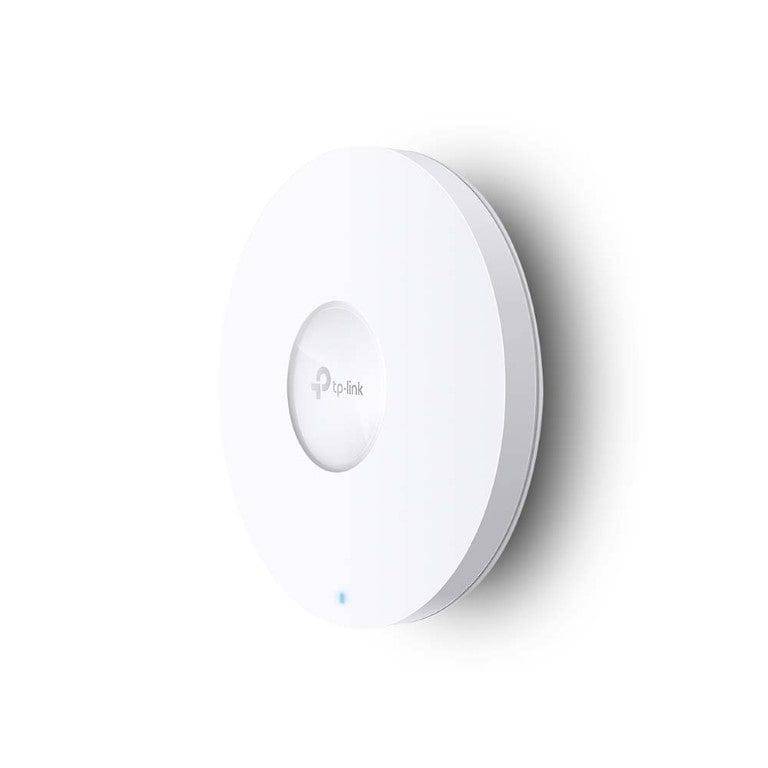

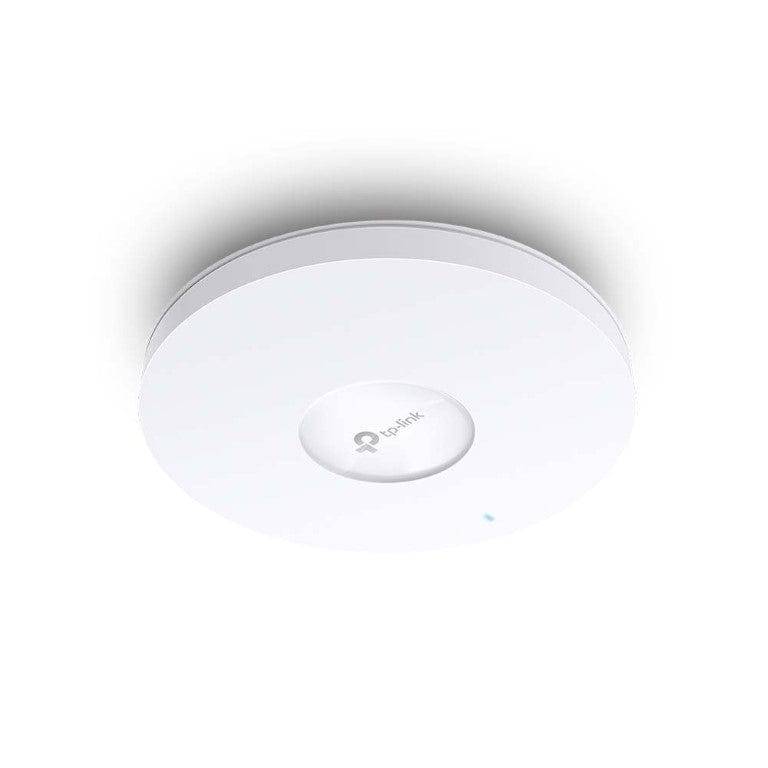

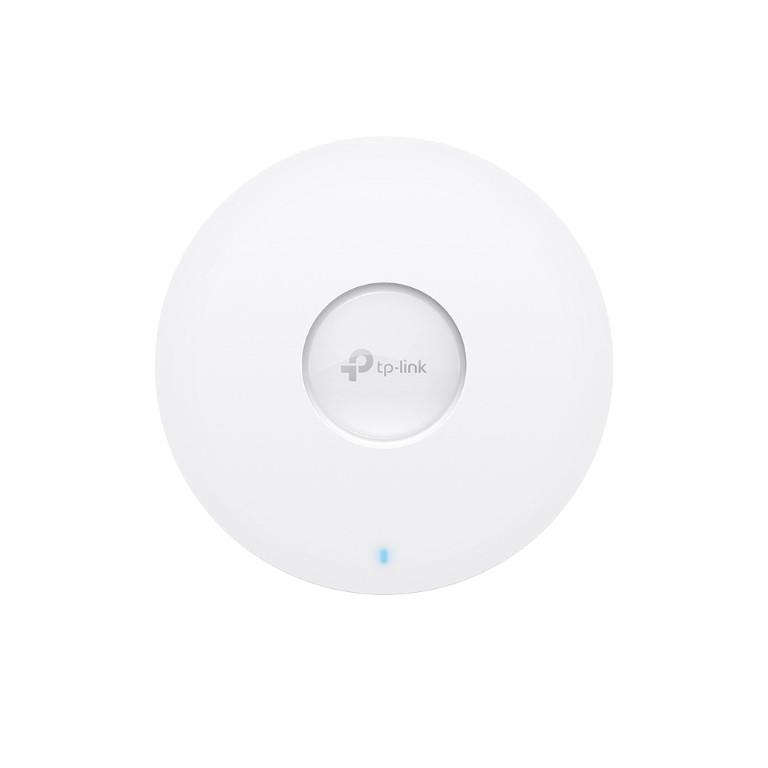

TP-Link EAP613 AX1800 Ceiling Mount Wi-Fi 6 Access Point
Features
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
- Ultra-Slim Design: Φ160 mm x 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.
Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5. Every application feels more fluid with drastically improved Wi-Fi speeds.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

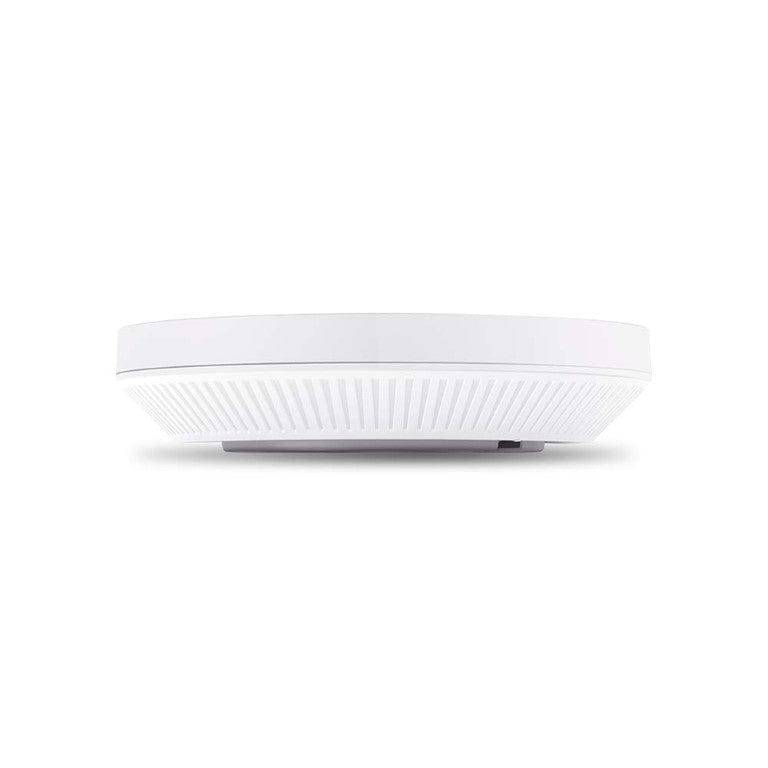

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.
Technical Specification
Interface: 1x Gigabit Ethernet (RJ-45) Port
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz: Up to 1201 Mbps ; 2.4 GHz: Up to 574 Mbps
Antenna Type: Internal Omni Antenna
-
2.4 GHz: 2x 4 dBi
-
5 GHz: 2x 5 dBi
Wireless Functions
-
1024-QAM
-
4x Longer OFDM Symbol
-
OFDMA
-
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
-
Enable/Disable Wireless Radio
-
Automatic Channel Assignment
-
Transmit Power Control (Adjust Transmit Power on dBm)
-
QoS(WMM)
-
MU-MIMO
-
Seamless Roaming §
-
Omada Mesh§
-
Band Steering
-
Load Balance
-
Airtime Fairness
-
Beamforming
-
Rate Limit
-
Reboot Schedule
-
Wireless Schedule
-
Wireless Statistics based on SSID/AP/Client

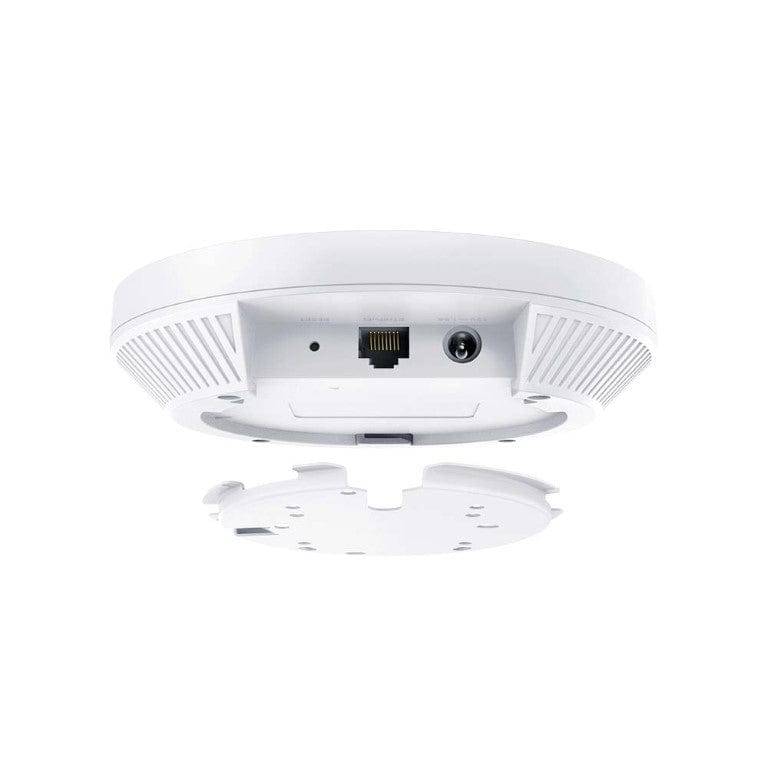

Mounting
Power supply required:
-
802.3at PoE (PoE Power Adapter IS NOT included)
-
48V Passive PoE (PoE Power Adapter IS NOT included)
-
12V / 1A DC (Power Adapter IS NOT included)
Package Contents
- EAP613
- Ceiling/ Wall Mounting Kits
- Installation Guide
