The New Slimline Business WiFi 6

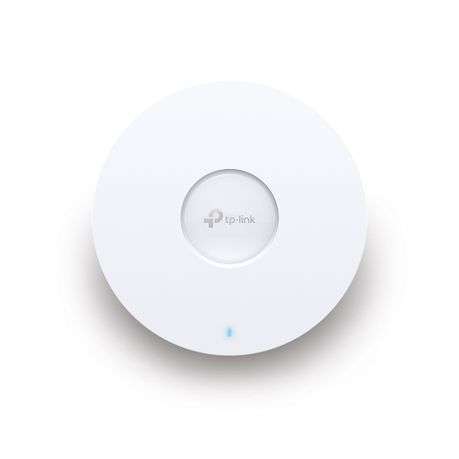

AX3000 Ceiling Mount WiFi 6 Access Point
Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or
Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
Ultra-Slim Design: ?160 mm × 33.6 mm elegant design brings more agility.
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Auto Channel Selection and Power Adjustment
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment
Seamless Roaming
Uninterrupted streaming when moving between APs
Ultra-Slim Design
?160 mm × 33.6 mm elegant design brings more agility
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations
Designed for Business Environments Requiring High-Performance WiFi
Hospitality
High-quality and full coverage Guest WiFi
Education
High-security WiFi to connect more devices
Shopping Mall
Seamless marketing WiFi coverage to boost business
Office
Stable, seamless, and high-security WiFi coverage
Meeting Room
Faster streaming, downloading, video conferencing, and more
Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Lightning-Fast AX3000 WiFi 6 Speeds
New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5. Every application feels more fluid with drastically improved WiFi speeds.

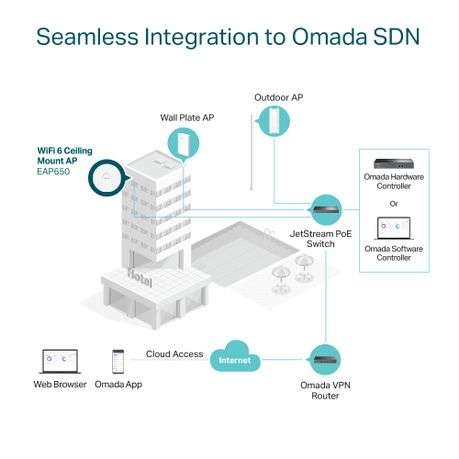

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

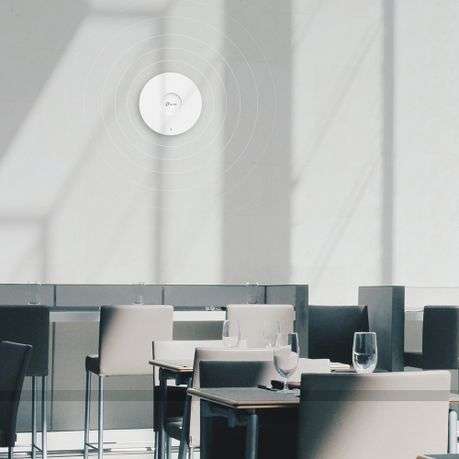

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.

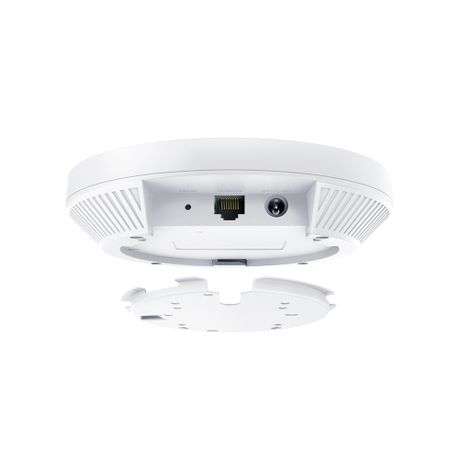

Easy to Mount with Refined Industrial Design
1 Push up
2 Rotate to lock
Ceiling / Wall / Junction Box Mounting (Kits included)
Boosted Network Security and Efficiency
Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
SPECIFICATIONS
HARDWARE FEATURES
Interface
1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12V DC (Power Adapter included)
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
Power Consumption
EU: 13.5 W
US: 14.7 W
Dimensions ( W x D x H )
6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type
Internal Omni
2.4 GHz: 2× 4 dBi
5 GHz: 2× 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming §
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Base...
