EAP653
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574Mbps on 2.4GHz and 2402Mbps on 5GHz totals 2976Mbps Wi-Fi speeds. (1)
- High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160. (2)
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations. (3)
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment. (3)
- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
- Ultra-Slim Design: Diameter 160 mm 33.6 mm elegant design brings more agility.
The New Slimline Business Wi-Fi 6

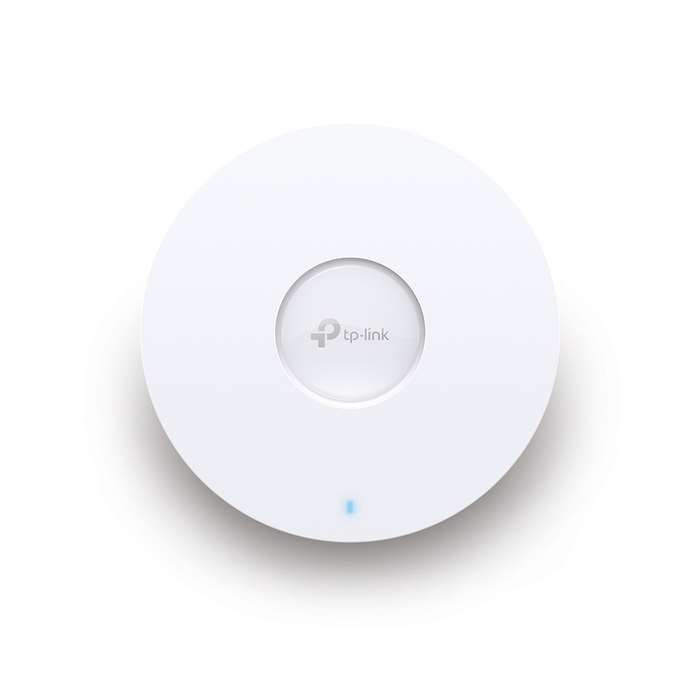

AX3000 Ceiling Mount Wi-Fi 6 Access Point
EAP653
Features:
Designed for Business Environments Requiring High-Performance Wi-Fi:
- Hospitality: High-quality and full coverage Guest Wi-Fi.
- Education: High-security Wi-Fi to connect more devices.
- Shopping Mall: Seamless marketing Wi-Fi coverage to boost business.
- Office: Stable, seamless, and high-security Wi-Fi coverage.
- Meeting Room: Faster streaming, downloading, video conferencing, and more.
Power up Your Business with New-Era Business Wi-Fi 6:
- Wi-Fi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Lightning-Fast AX3000 Wi-Fi 6 Speeds:
- New-era business Wi-Fi 6 with speeds up to 2976Mbps brings more than twice the speed of Wi-Fi 5. (1) Every application feels more fluid with drastically improved Wi-Fi speeds. (3)
a) 1024 QAM: 25% more data encoded at one time.
b) Long OFDM Symbol: 11% faster speed.
c) HE160: Double the data at peak transmission times on a single stream (3).
Higher Efficiency for More Devices:
- Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag. (2)
Seamless Integration into Omada SDN:
- The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance (4):
- Provides powerful wireless performance while significantly reducing Wi-Fi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh (3): Easy Pairing, Less Wiring.
- With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your Wi-Fi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance:
- Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming (3):
- Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility:
- Exceptional performance with compact design ensures simple Wi-Fi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or caf .
Easy to Mount with Refined Industrial Design:
1/ Push up
2/ Rotate to lock: Ceiling / Wall / Junction Box Mounting (Kits included)
Boosted Network Security and Efficiency:
1/ Security:
a) Secure Guest Network with Up to 16 SSIDs: Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
b) Boost Business with Facebook Wi-Fi and SMS Login: Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page. (3)
c) WPA3 for Worry-Free Open Public Networks: With advanced enterprise security, WPA3 provides more data security for previously unsecured and open Wi-Fi hotspots.
2/ Efficiency:
a) Band Steering: Automatically moves dual band devices onto the wider 5GHz band for faster connections.
b) Load Balance: Ensures large numbers of users have smooth network experiences in high-density business networks.
c) Airtime Fairness: Increases average network throughput in heavily congested environments.
Notes:
(1) Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
(2) Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general Wi-Fi 6 APs.
(3) Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
(4) Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
(5) DC adapter is not included in the package, and is sold separately.
Specifications:
HARDWARE FEATURES
- Interface: 1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Button: Reset
- Power Supply:
a) 802.3at PoE
b) 12V DC (EU Version: 12V/1.0A DC, US Version: 12V/1.5A DC).
Note: The DC adapter is not included in the package, and is sold separately.
c) 48V Passive PoE
- Power Consumption:
a) EU: 13.5W
b) US: 14.7W
- Antenna Type: Internal Omni
a) 2.4GHz: 2 x 4dBi
b) 5GHz: 2 x 5dBi
- Mounting:
a) Ceiling /Wall Mounting (Kits included)
b) Junction Box Mounting
WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate:
a) 5GHz: Up to 2402Mbps (1)
b) 2.4GHz: Up to 574Mbps (1)
- Wireless Functions:
a) 1024-QAM
b) 4 x Longer OFDM Symbol
