EX141
Features:
- 1.5Gbps Wi-Fi Speed: Enjoy faster browsing, streaming and downloading on both 2.4GHz and 5GHz bands. (1)
- Connect More Devices, Stay Speed: Powered by Wi-Fi 6 technology for faster speeds, greater capacity, and less network congestion. (2)
- Extensive Coverage: Beamforming and four antennas combine to provide focused reception to distant devices.
- EasyMesh Compatible: Provides whole-home Wi-Fi coverage with standard mesh technology. (3)
- Enhanced Security: Protect your network with firewalls and the latest WPA3 encryption. (2)
- Easy Configuration: configure individual parameters such as password, user and even your provider's logo with the powerful Aginet application.
- Remote Management: TR-069, TR-098, TR-181, TR-111 and TR-143 protocols are supported.
Notes:
1/ Maximum wireless signal rates are physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary due to network conditions, customer limitations, and environmental factors including building materials, obstacles, traffic volume and density, and customer location.
2/ Use of Wi-Fi 6 (802.11ax) and features including OFDMA, 1024-QAM and WPA3 requires customers to also support corresponding features.
3/ This product supports the standardized EasyMesh technology, but has not achieved EasyMesh Wi-Fi certification.
4/ Internet speeds of 1000Mbps require service plans and compatible equipment. Actual network speed may be limited by the product's WAN or LAN port rate, the rate supported by the network cable, ISP factors, and other environmental conditions.
Specifications:
HARDWARE FEATURES

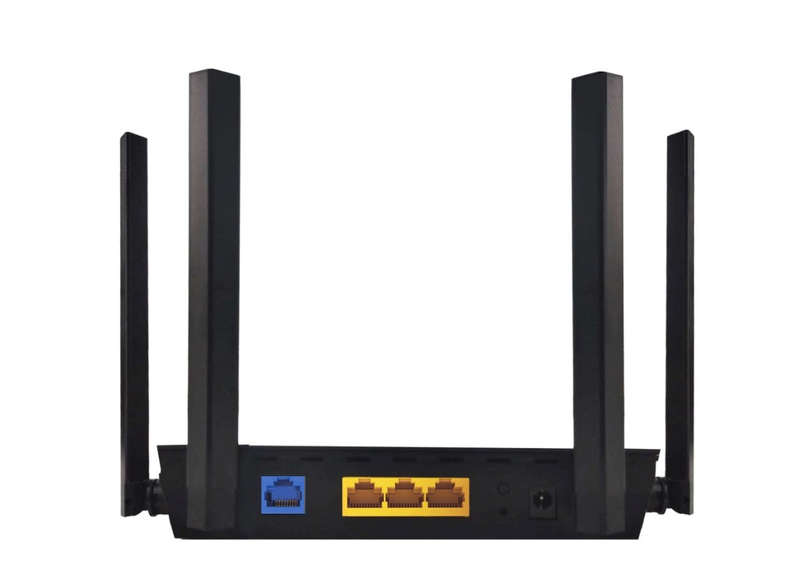

- Interface: 1 x RJ45 10/100/1000Mbps WAN port, 3 x RJ45 10/100/1000Mbps LAN ports
- Button: Reset Button, WPS/Wi-Fi Button
- External Power Supply: 12V/1A
- Antenna Type: Four external antennas
WIRELESS FEATURES
- Wireless Standards:
a) IEEE 802.11ax/ac/n/a 5GHz
b) IEEE 802.11n/g/b 2.4GHz
- Frequency: 2.4Ghz and 5Ghz
- Signal Rate: 1201Mbps at 5GHz, 300Mbps at 2.4GHz (1)
- Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics, Bandwidth Steering
- Wireless Security: WPA/WPA2/WPA3 encryption
- Transmission Power:
1/ CE: <20dBm (2.4GHz), <23dBm (5.17GHz - 5.71GHz)
2/ FCC: <30dBm (2.4GHz & 5.15GHz - 5.825GHz)
- Wireless Schedule: Supports 2.4GHz and 5GHz wireless scheduling
- Mesh technology: EasyMesh compatible, supports 802.11k/v/r
SOFTWARE FEATURES
- Operation Modes: Router, Access Point
- WAN type: Dynamic IP / Static IP / PPPoE / PPTP / L2TP (Multi-EWAN)
- Management:
1/ Local management: WebGUI interface management, Aginet application for management
2/ Remote management: Aginet ACS, TR-069, TR-098, TR-181, TR-111 and TR-143 for service providers
3/ Aginet application for end users (login required with TP-Link ID and link your device to it)
- DHCP: Server, DHCP Client List, Address Reservation
- Port forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP
- VPN Pass-Through: IPSec, PPTP, L2TP
- Access control: Parental Controls, Whitelist and Black List
- Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
- Protocols: IPv4, IPv6
- Advanced Features: Multi-SSID, Guest Network, QoS (Quality of Service), TX Beamforming, MU-MIMO, OFDMA, Airtime Fairness
- VPN Server: PPTP, OpenVPN, IPSec
OTHERS
- Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other browser with Java support
- Subscription to an internet service with a provider (to access the internet)
- Environment:
a) Operating Temperature: 0 Degree Celsius - 40 Degree Celsius
b) Storage Temperature: -40 Degree Celsius - 60 Degree Celsius
c) Operating Humidity: 10% to 90% non-condensing
d) Storage Humidity: 5% to 90% without condensation
