| HARDWARE FEATURES |
| External Power Supply | 12V/1.5A |
| Interface | 1× 10/100/1000Mbps RJ45 WAN Port |
| 4× 10/100/1000Mbps RJ45 LAN Ports |
| Button | Power On/Off Button, Reset Button, Wi-Fi/WPS Button |
| Dimensions ( W × D × H ) | 260.2 × 135.0 × 41.6mm |
| Antenna Type | Four high-performance external antennas |
| WIRELESS FEATURES |
| Frequency | 2.4GHz and 5.0GHz |
| Signal Rate | AX3000 |
| 5.0GHz: Up to 2402 Mbps |
| 2.4GHz: Up to 574 Mbps |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2/WPA3 encryptions |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5.0GHz |
| IEEE 802.11b/g/n/ax 2.4GHz |
| Transmission Power | CE:<20dBm (2.4GHz); <23dBm (5.15GHz5.35GHz); <30dBm (5.47GHz5.725GHz) |
| Multi-SSID | 2× 5.0GHz Multi-SSID |
| 2× 2.4GHz Multi-SSID |
| Wireless Schedule | Support 2.4GHz and 5.0GHz Wireless Schedule |
| Mesh Technology | EasyMesh compatible, and support 802.11k/v/r |
| SOFTWARE FEATURES |
| WAN Type | Dynamic IP / Static IP / PPPoE / PPTP / L2TP(Multi-EWAN) |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Quality of Service | Hardware QoS, Flow Classification |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | IPSec, PPTP, L2TP |
| Access Control | Parental Controls, White List, Black List |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Management | Local management: WebGUI, Aginet app (for end users) |
| Remote management: Aginet ACS, TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providers |
| Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it) |
| Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| Advanced Features | TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness |
| Protocols | IPv4, IPv6 |
| Operating Modes | Router, Access Point |
| VPN Server | PPTP, OpenVPN, IPSec |
| OTHERS |
| Certification | CE, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED EasyMesh |

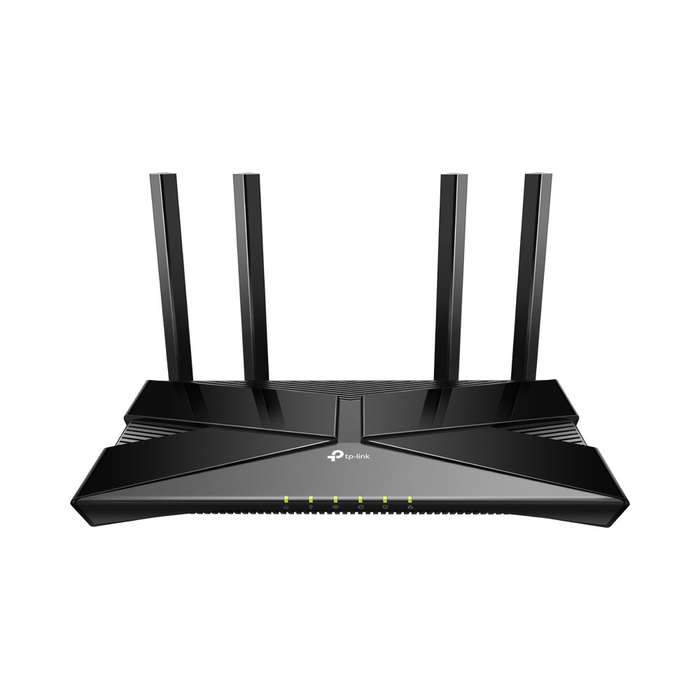

| Package Contents | WiFi 6 Router EX511 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Subscription with an internet service provider (for internet access) |
