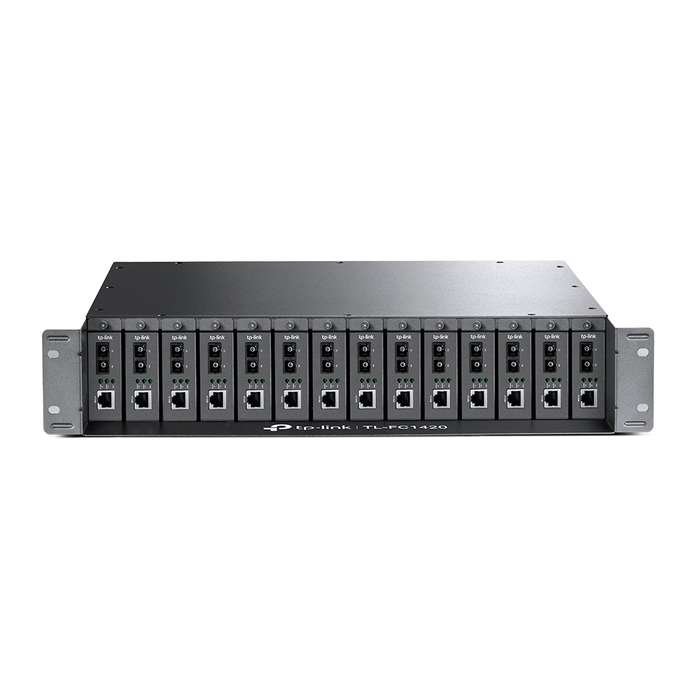

Tp-Link FC1420 14-Slot Rackmount Chassis

14 bays to house up to 14 media converters

Optional redundant power supply to ensure non-stop reliable operation

Hot-Swappable; easy & quick replacement of converter

Mounted two cooling fans for better ventilation

What This Product Does

The TL-FC1420 14-Slot Rackmount Chassis is specially designed to accommodate 14 TP-Link's Media Converters for central power supply, saving space and power cables.

Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis.

Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally.

Together with FC series Gigabit / Fast Ethernet media converters, TL-FC1420 is the ideal solution for your media conversion network.

SPECIFICATIONS

HARDWARE FEATURES

Fan Quantity
2

MEDIA CONVERTER & MODULE

AC Power Supply
100-240VAC, 50/60Hz

Power Output
14 5VDC/0.6A

Dimensions (WDH)
19.012.23.4in.(48230986)

Standard
19-Inch, 2U height

Environment
Operating Temperature: 0?~50? (32?~122?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity:5%~90% non-condensing

What's in the box
1 x TL-FC1420
