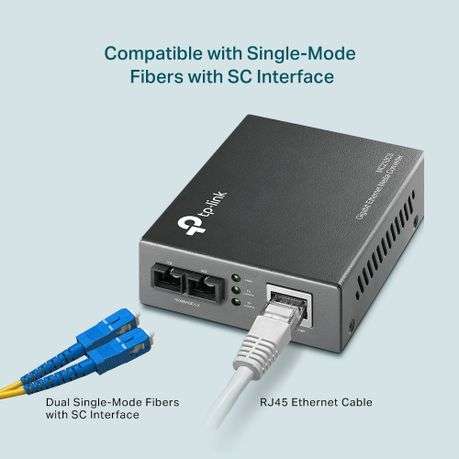

The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fibre cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fibre optic distances utilizing single-mode fiber up to 15 kilometers.
Overview:
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fibre distance up to 15km
Features:
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fibre distance up to 15km
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
Media Converter & Module:
- Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function:
- Full Duplex Flow Control (IEEE 802.3x)
- Extends fibre distance up to 15km
Ports:
1× 1000M SC/UPC port
1× 1000M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm
Network Media 1000BASE-FX: Single-mode Fibre
Network Media 1000BASE-T:
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ohms STP (maximum 100m)

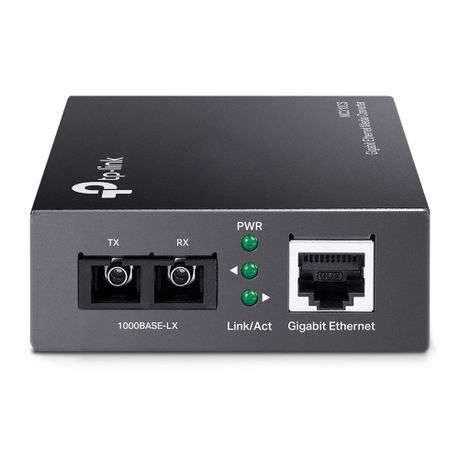

LED Indicators: PWR, LINK, RX
Dimensions (W × D × H): 94.5 × 73.0 × 27.0mm

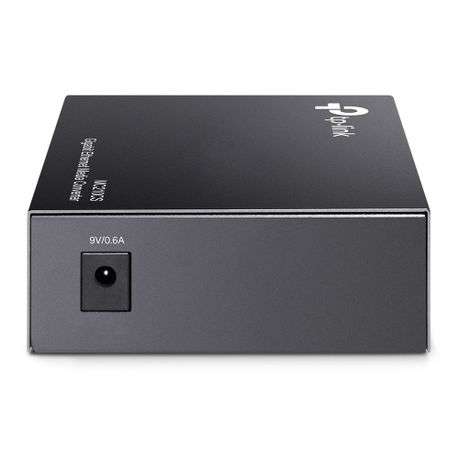

Power Supply: External Power Adapter
Max. Power Consumption: 5.5W
Safety & Emission: FCC, CE, RoHS
Environment:
- Operating Temperature: 0 degrees C to 40 degrees C
- Storage Temperature: -40 degrees C to 70 degrees C
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
What's in the box
1× TP-Link MC210CS Gigabit RJ45 To Single-Mode SC Fibre
1× Power Adapter
1× Installation Guide
