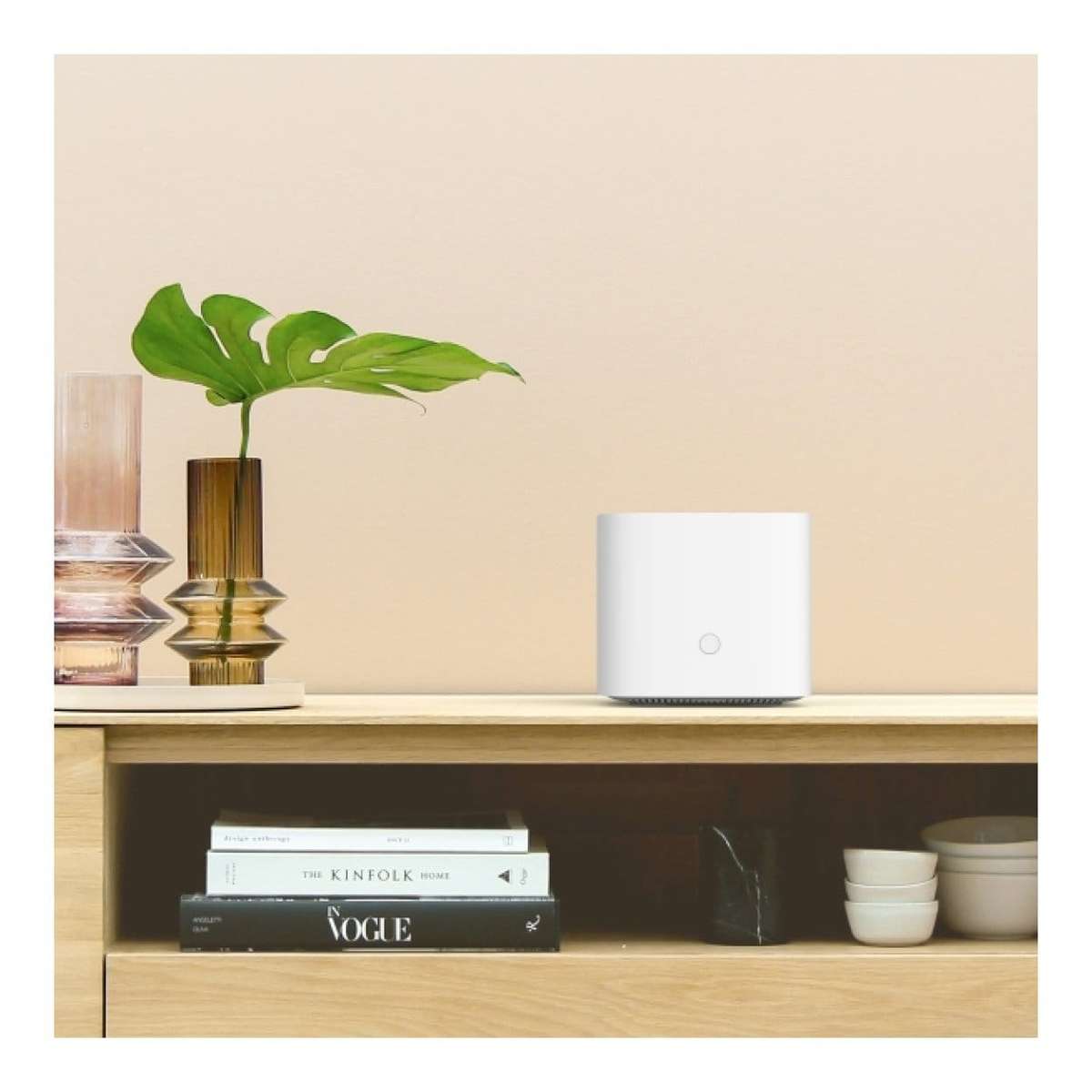

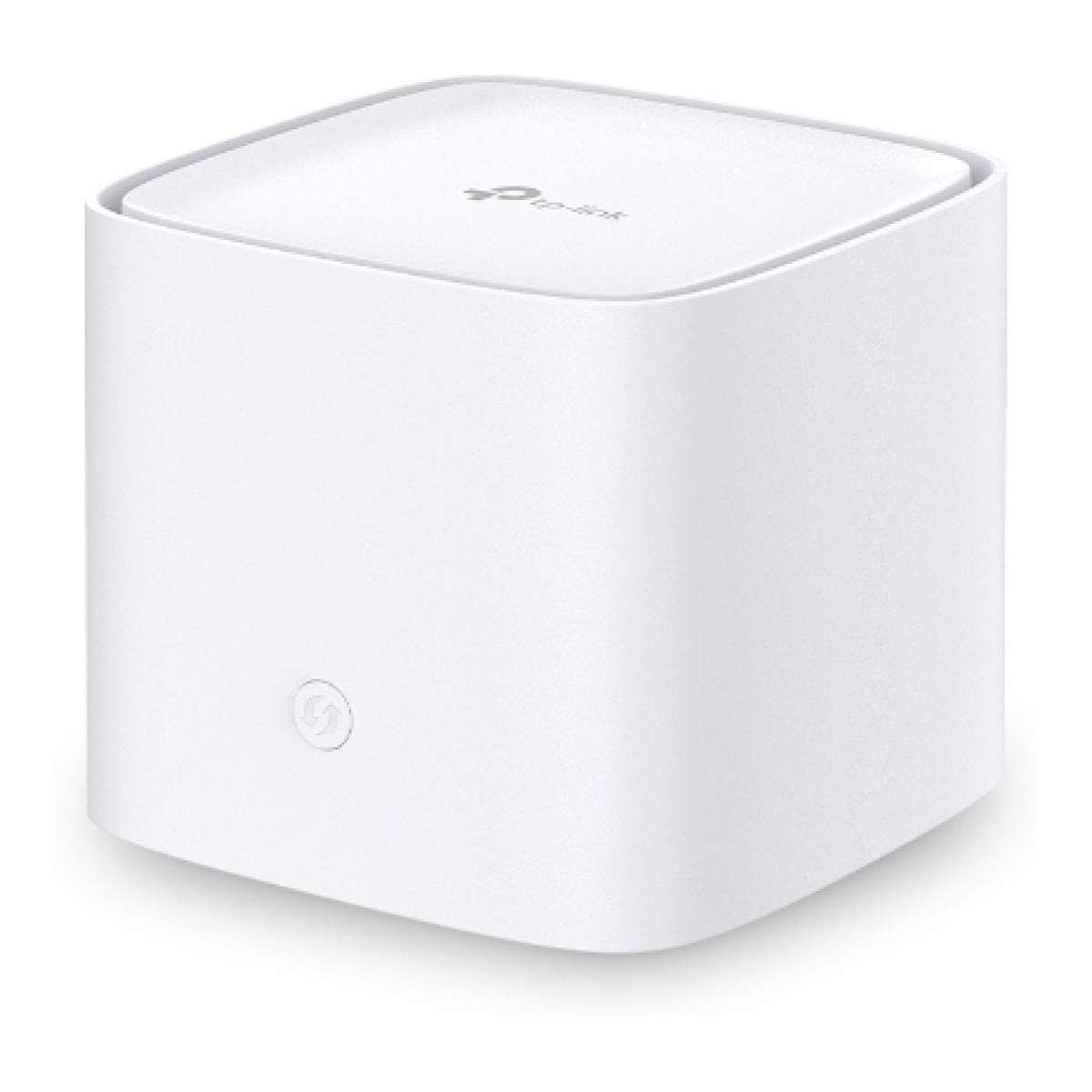

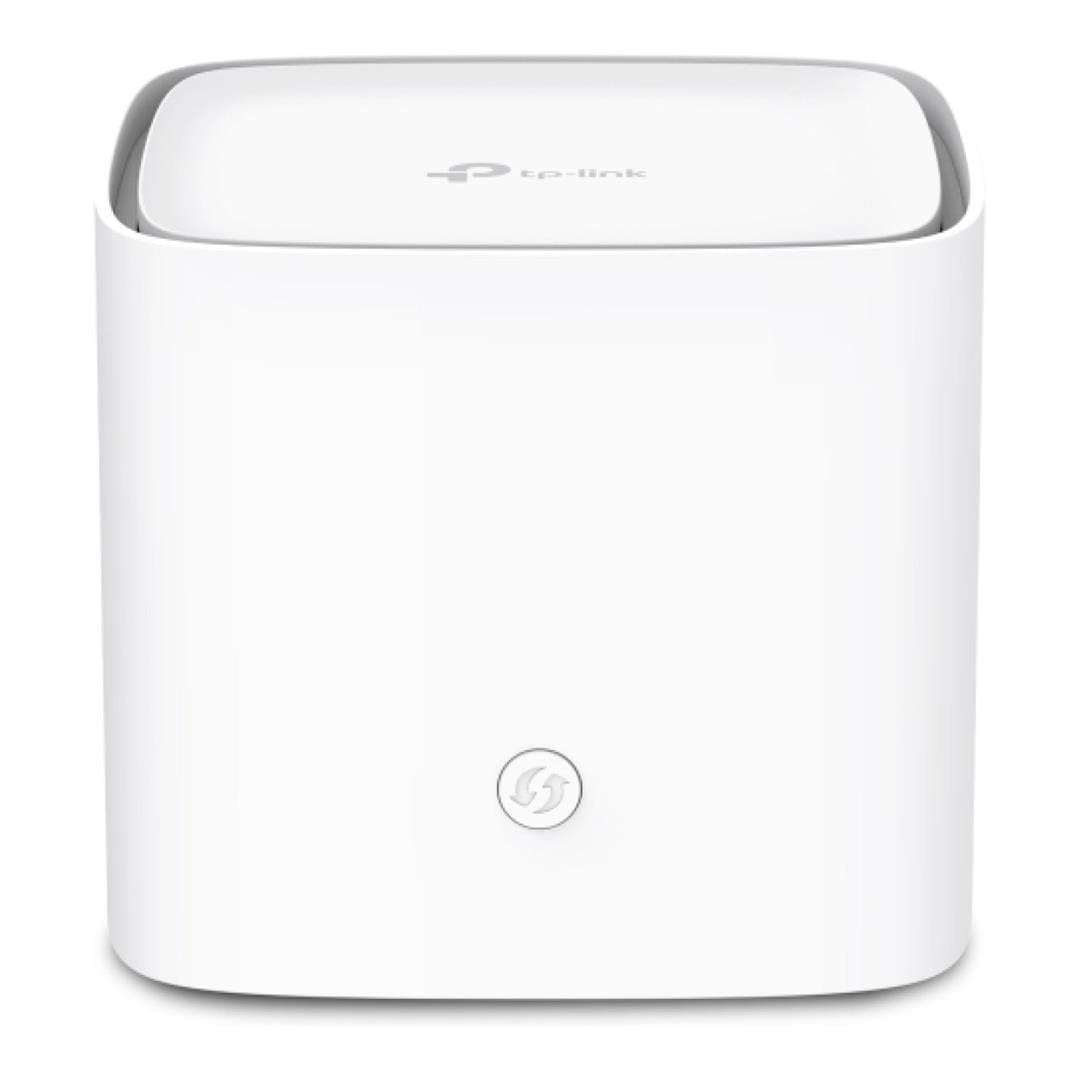

TP-Link HX141 AX1500 Whole Home Mesh Wi-Fi System

Fast. Stable. Everywhere.

AX1500 Whole Home Mesh WiFi System

Features:

• Dual Band WiFi: Speeds up to 1500 Mbps—1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
• Connect More, Stay Fast: Equipped with the WiFi 6 wireless technology for faster speeds, greater capacity, and reduced network congestion.
• Boosted Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi signals.
• EasyMesh Compatible: Create a unified smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
• One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
• Gigabit Wired Speeds: 1× Gigabit WAN/LAN port and 2× Gigabit LAN ports offer flexible and fast internet access.
• Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experience.
• Easy Setup and Use: Set up your mesh WiFi in minutes with powerful Aginet app.
• Remote Management: TR-069, TR-181, TR-111, and TR-143 are supported.

Upgraded WiFi 6 Mesh

Armed with WiFi 6 (802.11ax) technology, HX141 offers faster and more efficient WiFi up to 1.2 Gbps on the 5 GHz—perfect for HD streaming, online gaming, and fast downloading all at the same time.

Extensive WiFi Coverage

High-performance antennas and beamforming technology combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.

Whole Home Coverage

Empowered by EasyMesh technology, HX141 delivers strong WiFi signals to every corner of your home. Wireless backhaul and Ethernet backhaul work together to link each unit, providing faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX141 unit wherever you want.

Seamless Roaming with One WiFi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

More Connections, No More Buffering

Enhanced by WiFi 6, featuring with OFDMA and MU-MIMO, HX141 allows you to connect more devices simultaneously. Enjoy a more efficient network that loads faster without dragging down performance.

2-in-1 Router and Access Point

The versatile and multi-purpose HX141 features options to serve as either a router or access point. Select the mode that suits your requirements for adaptable wireless and wired networking.

Gigabit Wired Connections

Three Gigabit Ethernet ports, one WAN/LAN port, and two LAN ports on each unit enable fast and stable wired connectivity, whether for internet access or Ethernet backhaul for a more robust mesh network.

Easy to Set Up and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

Supports TR-069 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols. While the home user can enjoy more efficient service experiences.

Aginet Solution: An End-to-End Management Platform for ISPs

The Aginet Solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, remote firmware upgrading, and troubleshooting.

Technical Specifications:

Wireless Features
Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz); FCC: <30 dBm
Frequency: 2.4 GHz and 5 GHz
Signal Rate: AX1500 — 5 GHz: Up to 1201 Mbps (HE80), 2.4 GHz: Up to 300 Mbps
Wireless Security: WPA/WPA2/WPA3 Personal; WPA/WPA2 Enterprise
Wireless Standards: IEEE 802.11a/n/ac/ax (5 GHz), IEEE 802.11b/g/n (2.4 GHz)
Multi-SSID: 2× 5 GHz Multi-SSID, 2× 2.4 GHz Multi-SSID

Hardware Features
External Power Supply: 12 V âŽ" 1.0 A

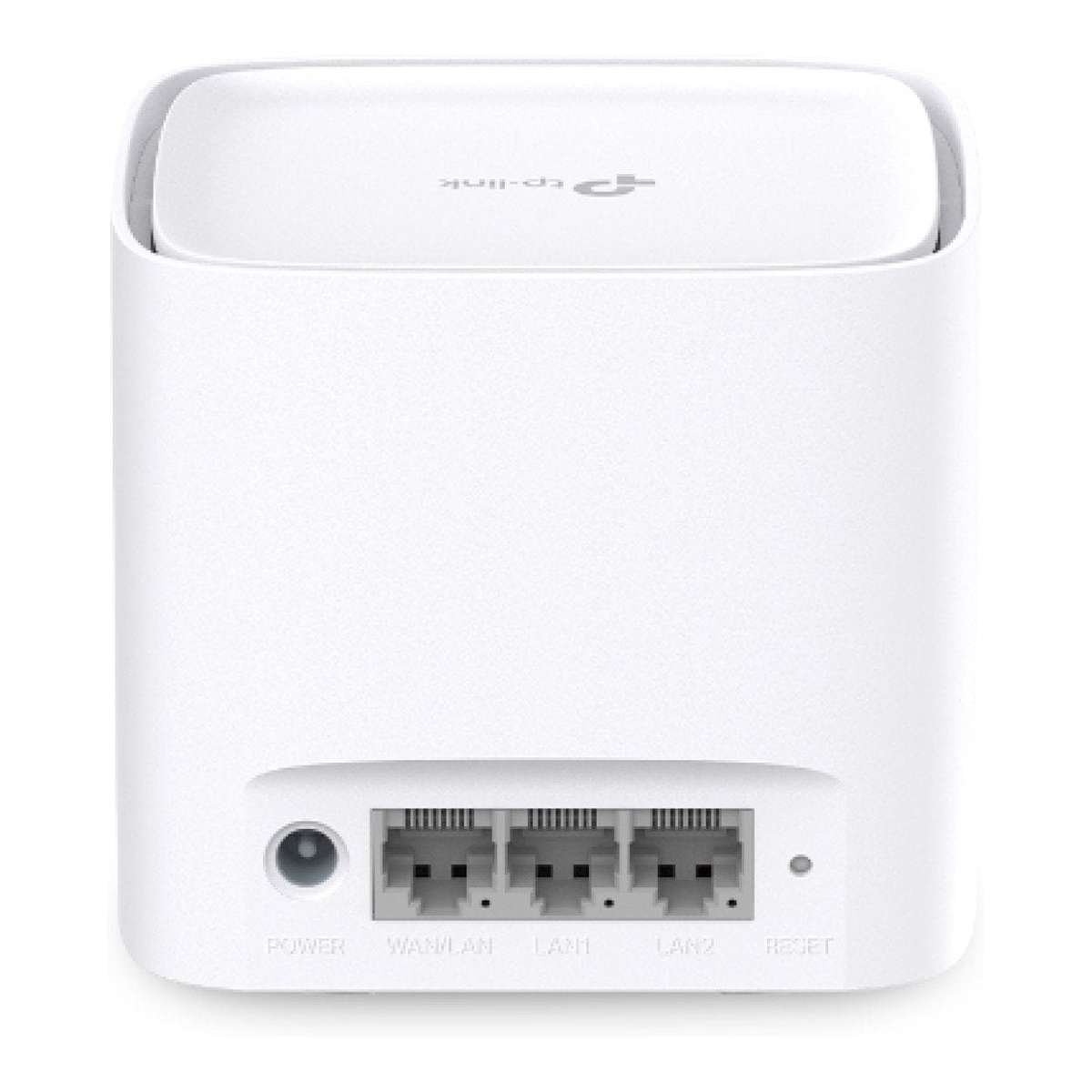

Interface: 3× Gigabit Ports (*1 port supports WAN/LAN auto-sensing)
Buttons: Reset Button, WPS Button
Dimensions: 100 × 100 × 89.5 mm (3.9 × 3.9 × 3.5 in)

Software Features
WAN Type: Dynamic IP, Static IP, PPPoE, L2TP, PPTP, Bridge (Multi-EWAN)
Quality of Service: WMM
Firewall Security: SPI Firewall, IP and MAC Address Binding
Management Features: Local management via WebGUI or Aginet app; Remote management via TR-069, TR-098, TR-181, TR-111, TR-143
Advanced Features: Parental Controls, QoS, Address Reservation, Port Forwarding, WiFi Schedule, Wireless Statistics, Guest Network, Beamforming, MU-MIMO, Band Steering, Airtime Fairness
Protocols: IPv4, IPv6
VPN: PPTP, OpenVPN, IPSec
Working Modes: Router Mode, Access Point Mode
Mesh Technology: EasyMesh compatible, supports 802.11k/v/r, Ethernet Backhaul

Environment
Operating Temperature: 0⃗40⃠(32â—104â)
Storage Temperature: -40⃗60⃠(-40â—140â)
Operating Humidity: 10%—90% non-condensing
Storage Humidity: 5%—90% non-condensing

What's in the Box:

HX141 (1-Pack):

• 1× HX141 Unit
• 1× Power Adapter
• 1× RJ45 Ethernet Cable
• 1× Quick Installation Guide
