5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer
Plastic casing, desktop or wall-mounting design
Plug and play, no configuration needed

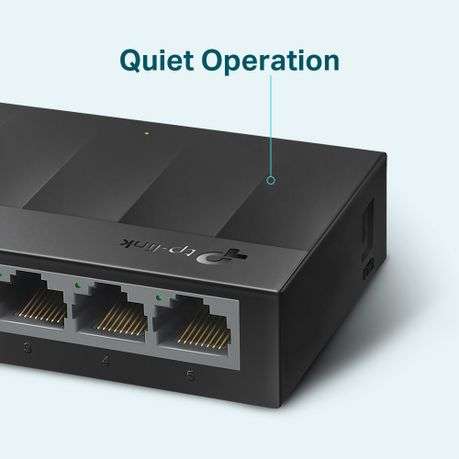

Fanless design ensures quiet operation0/1000Mbps Desktop Switch
Increase Your Network Speed and Save Energy

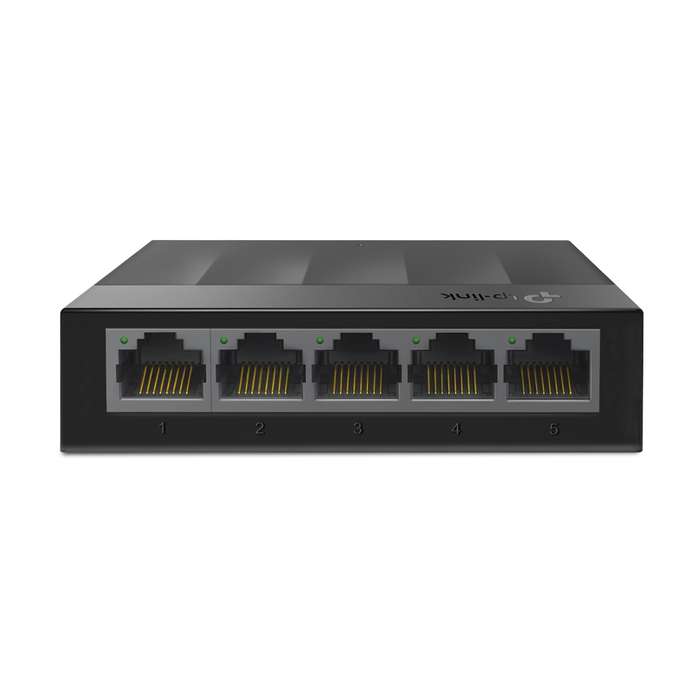

5-Port Gigabit Desktop Switch - LS1005G
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use.
Plug & Play
Gigabit Ethernet
Fanless
Green Tech

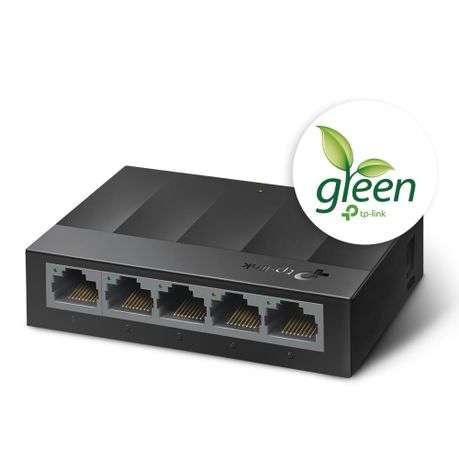

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills it's a win-win!

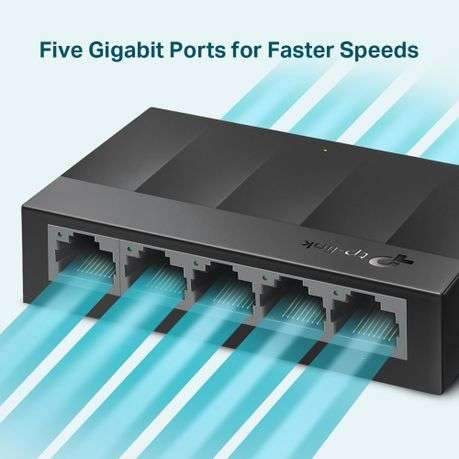

Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Specifications
Hardware Features
Standards and Protocols : IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface : 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity : Fanless
External Power Supply : External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H ) : 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
Max Power Consumption : 3.7W
Max Heat Dissipation : 12.617 BTU/h
Performance
Switching Capacity : 10 Gbps
Packet Forwarding Rate : 7.4 Mpps
MAC Address Table : 2K
Packet Buffer Memory : 1.5 Mb
Jumbo Frame : 16 KB
Software Features
Advanced Features :
Green Technology
802.3X Flow Control
Back Pressure
Transfer Method : Store and Forward
Others
Certification : CE, FCC, RoHS
Environment :
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the box
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
