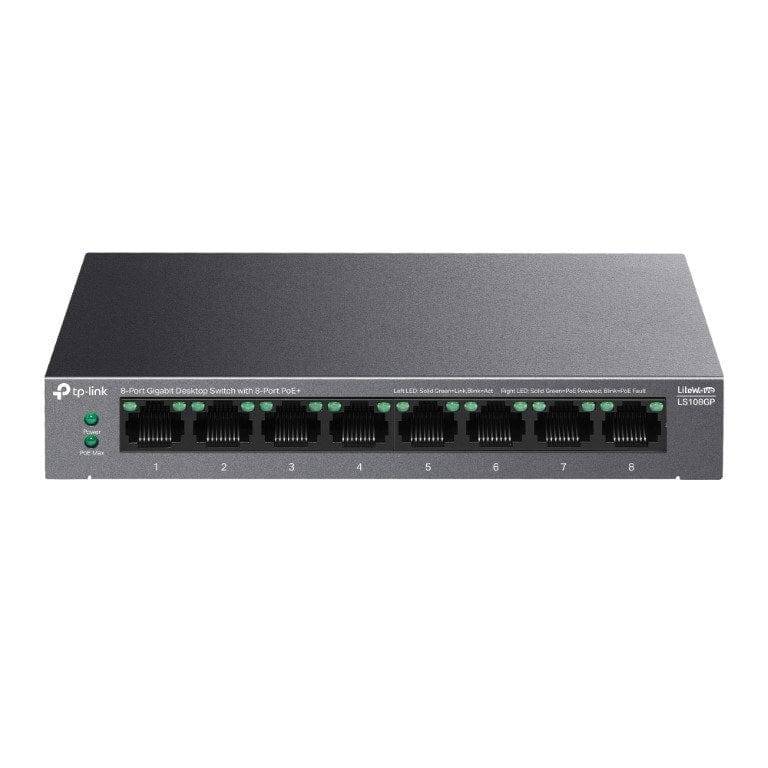

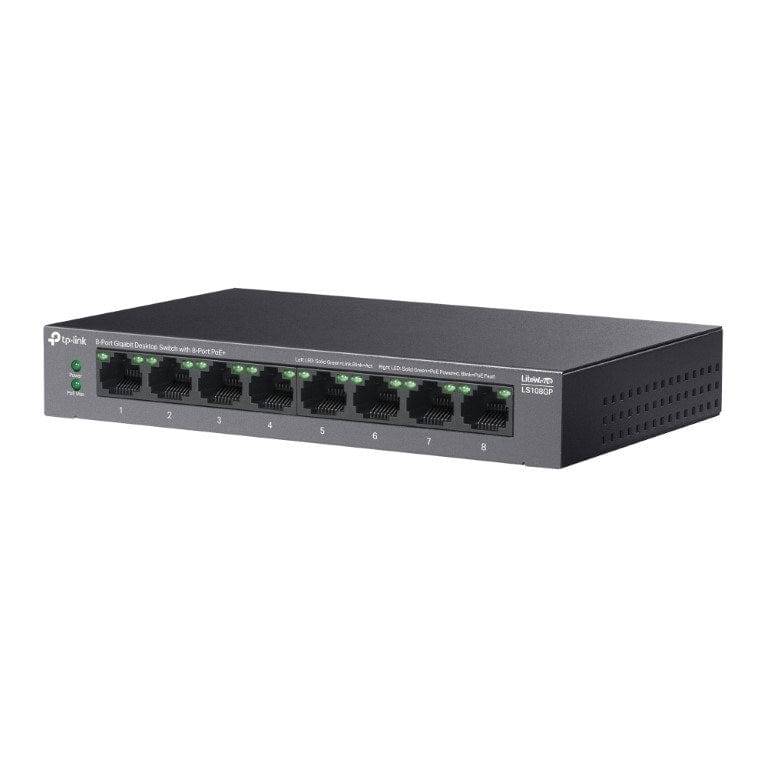

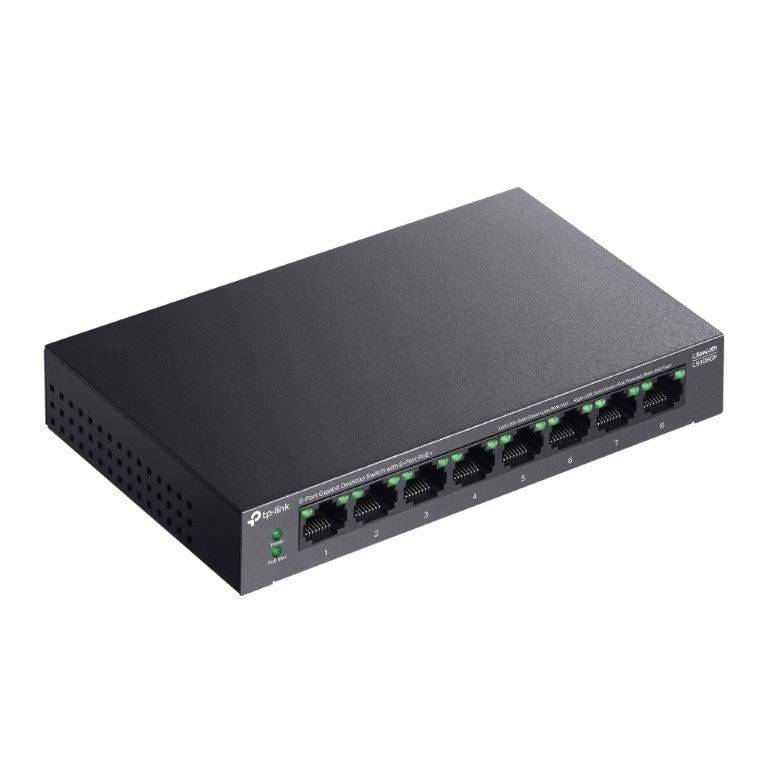

TP-Link LiteWave LS108GP 8-port PoE+ Gigabit Unmanaged Switch

TP-Link LiteWave LS108GP 8-port PoE+ Gigabit Unmanaged Switch

Features

Full Gigabit Ports

• Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.

62 W PoE Budget

• Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.

Up to 250 m PoE Transmission

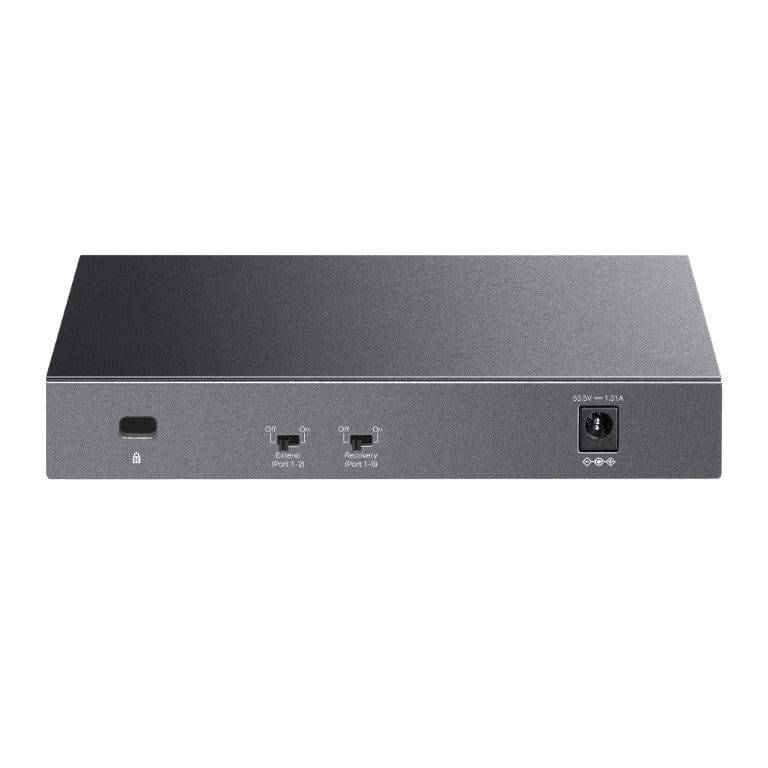

• With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.

PoE Auto Recovery

• Automatically reboots your dropped or unresponsive PoE-powered devices.

Plug and Play

• Simply plug and play for instant connectivity with no configuration required.

Silent Operation

• Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design

• Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Technical Specification

• 8x 10/100/1000Mbps RJ45 Ports (Ports 18 supports 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)

• Desktop
• Wall Mounting

• Standard: 802.3 af/at compliant
• PoE Ports: Ports 18, up to 30 W PoE output per port
• PoE Budget: 62 W

Package Contents

• LS108GP
• Power Adapter
• Installation Guide
