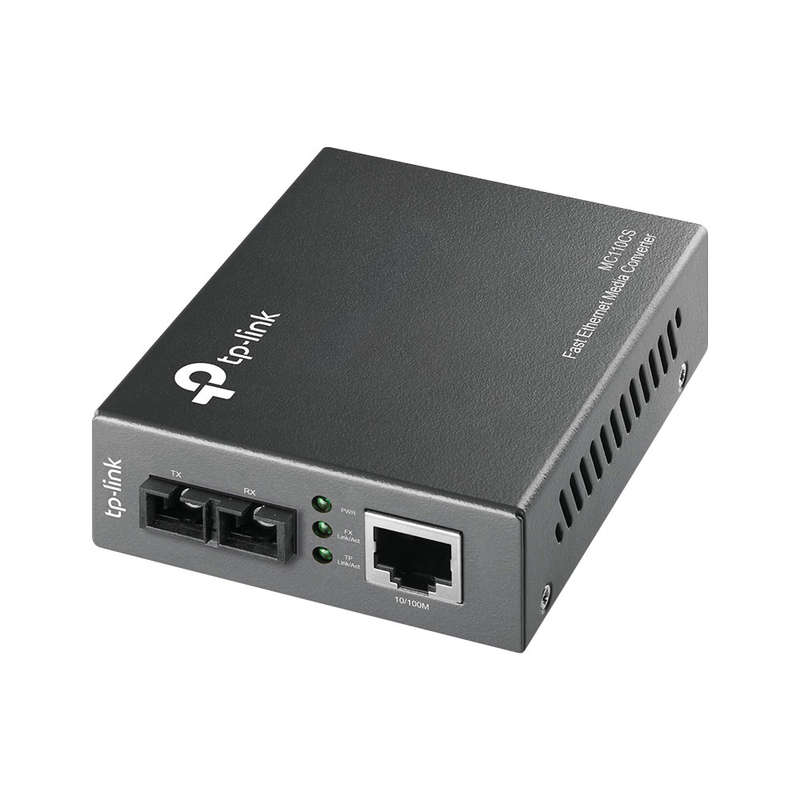

TP-Link MC110CS | 10/100Mbps Single-Mode SC Fibre Media Converter
The MC110CS is a media converter designed to convert 100BASE-FX fibre to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fibre cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fibre optic distances utilizing single-mode fiber up to 20km.
FEATURES:
SPECIFICATIONS:
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
Full Duplex Flow Control (IEEE 802.3x) | |
Half Duplex Flow Control (Backpressure) | |
Extends fibre distance up to 20km | |
Ports | 1× 100M SC/UPC port |
1× 10/100M RJ45 port (Auto MDI/MDIX) | |
Wave Length | 1310nm |
Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) |
EIA/TIA-568 100 STP (maximum 100m) | |
Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) |
EIA/TIA-568 100 STP (maximum 100m) | |
Network Media 100BASE-FX | Single-mode Fibre |
LED Indicators | Power, Link/Act |
Dimensions (W × D × H) | 94.5 × 73 × 27mm |
Power Supply | External power supply |
Max. Power Consumption | 2.4W |
Safety & Emission | FCC, CE, RoHS |
Package Contents | Media Converter MC110CS |
Power Adapter | |
Installation Guide | |
Environment | Operating Temperature: 0°C~40°C |
Storage Temperature: -40°C~70°C | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing |
