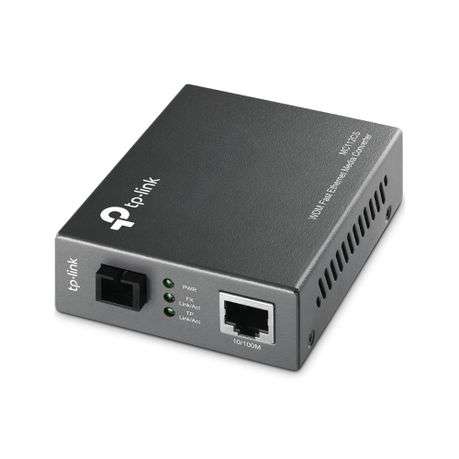

10/100Mbps WDM Media Converter
MC112CS
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km
What This Product Does:
The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Specifications:
- Media Converter & Module
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function:
- Adopts WDM technology
- Half/Full-Duplex transfer mode for FX port
- Extends fiber distance up to 20km
Ports:
- 1 x 100M SC/UPC port
- 1 x 100M RJ45 port (Auto MDI/MDIX)
- Wave Length: 1310nm Tx/1550nm Rx
- WDM TX: 1310nm
- WDM RX: 1550nm
Network Media 10BASE-T:
- UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
Network Media 100BASE-T:
- UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- Network Media 100BASE-FX: Single-mode Fiber
- LED Indicators: PWR, FDX/Col, Link/Act, SPD
- Dimensions (WDH): 3.72.91.1 in. (94.573.027.0 mm)
- Power Supply: External Power Adapter
- Max Power Consumption: 2.41W
- Safety & Emission: FCC, CE, RoHS
Environment:
- Operating Temperature: 0?-40? (32?-104?)
- Storage Temperature: -40?-70? (-40?-158?)
- Operating Humidity: 10%-90% non-condensing
- Storage Humidity: 5%-90% non-condensing
What's in the box
1 x MC112CS Media Converter
