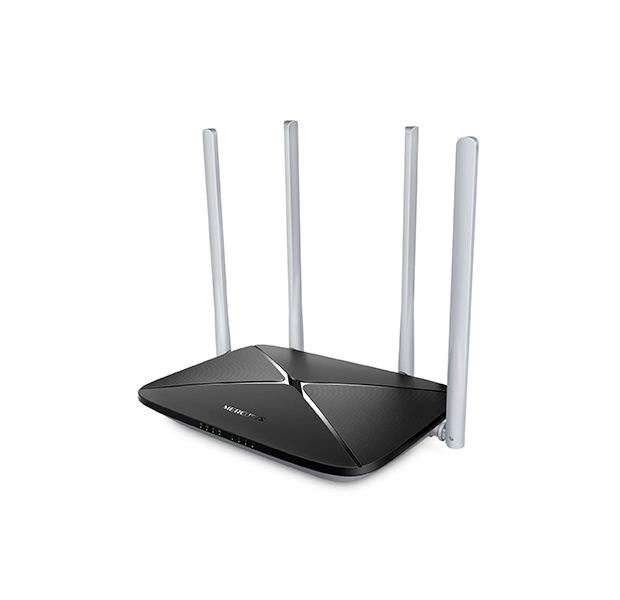

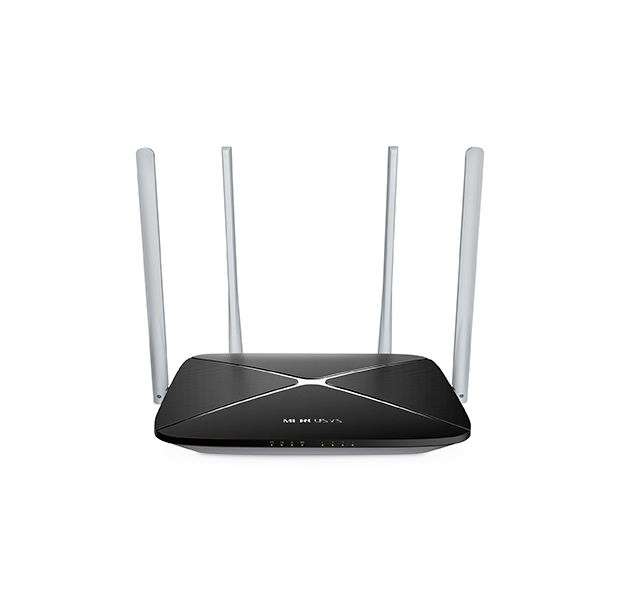

Mercusys AC12 is a dual band Wireless router which supports 802.11ac standard (the next generation of Wi-Fi). With it, you will enjoy smooth online gaming and video streaming with its dual band 1200Mbps Wi-Fi. It features 4 x external antennas which greatly expand wireless coverage. The Guest Network Access provides secure Wi-Fi access for your guests sharing your home or office network. Its installation is made easy via its intuitive webpage which will guide your through the setup process in minutes.
Features:
- Faster access to a more colourful life
- 1200Mbps Wi-Fi router for faster, smoother internet: this router creates a reliable, blazing-fast Wi-Fi network using the powerful 802.11ac Wi-Fi standard, 3 x faster than wireless N speeds.
- Concurrent Dual band connections: With the power of dual band Wi-Fi, be more active with more wireless devices. 300Mbps over the 2.4GHz band is great for surfing and emails, while 867Mbps over the 5GHz band covers bandwidth-intensive tasks like HD streaming and gaming. Both bands are transmitted at once, letting you perform these tasks at the same time.
- Strong signal, great coverage: 4 x 5dBi external antennas powered with advanced antenna technology provide users with larger wireless coverage and wireless signal intensity throughout your large home or office, making weak, dropped connections a thing of the past.
- Easy Parental control and access control:
1/ Supervise children and staff with responsible access, controlled by parents or administrators. You can easily set up a black or white list and limit the time of web access.
2/ Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.
- Three-Step installation: With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your AC12 in minutes.
- Advanced security: WPA/WPA2 encryption creates an active defence against security threats and intruders.
- 2 x 2 MIMO: Increase wireless transmission efficiency between multiple devices.
Specifications:
- External Power Supply: 9VDC/0.85A
- Antenna Type: 4 x 5dBi Omni-directional antennas
- Signal Rate: 11ac: Up to 867Mbps (Dynamic); 11n: Up to 300Mbps (Dynamic); 11g: Up to 54Mbps (Dynamic); 11b: Up to 11Mbps (Dynamic)
- Button: Reset button
- Wireless Standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
- Frequency: 2.390 ~ 2.4835GHz; 5.150 ~ 5.825GHz
- Reception Sensitivity: 11b CCK 1 -96; 11g OFDM 6 -93; 11n HT20 MCS7 -73; 11n HT40 MCS7 -70; 11a OFDM 6 -92; 11ac VHT20 MCS8 -68; 11ac VHT40 MCS9 -64; 11ac VHT80 MCS9 -60

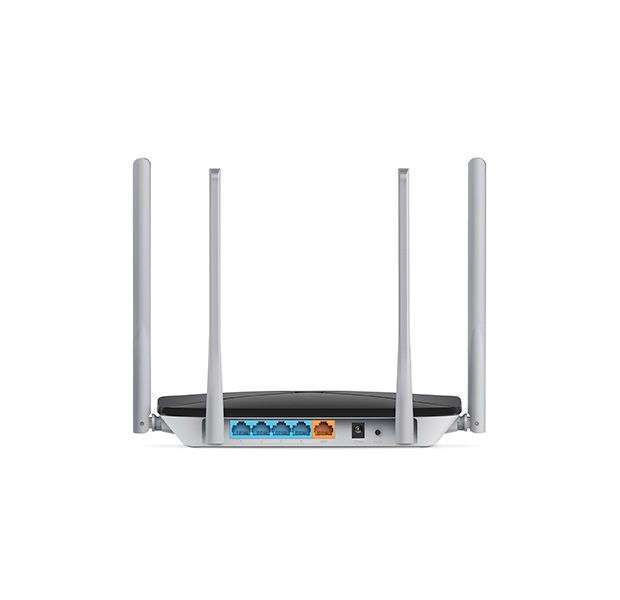

- Interfaces: 4 x 10/100Mbps LAN ports, 1 x 10/100Mbps WAN port
- Transmission Power: <20dBm
- Wireless Security: WPA-PSK / WPA2-PSK
- Wireless Functions: WDS Bridge
- WAN Type: Dynamic IP/Static IP/PPPoE
- Management: Access control, Local management, Remote management
- DHCP: Server
- Port Forwarding: Virtual server, UPnP, DMZ
- Dynamic DNS: Oray
- Firewall Security: IP and MAC address binding
- Protocols: IPv4
- Guest Network: 2.4GHz guest network
- Certifications: CE, ROHS
- Operating temperature: 0?C ~ 40?C
-Storage temperature: -40?C ~ 70?C
- Operating humidity: 10% ~ 90%, non-condensing
- Storage humidity: 5% ~ 90%, non-condensing
- Colour: Black
- Product code: MER-AC12

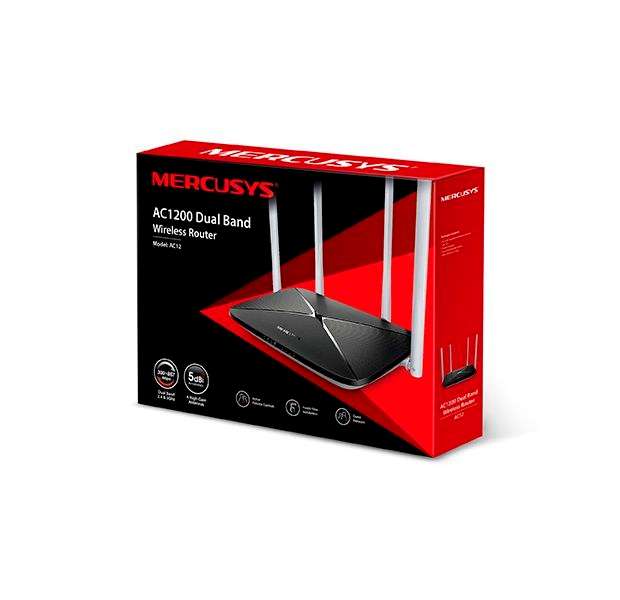

What's in the box
1 x MER-AC12, 1 x AC adapter, 1 x Ethernet cable, 1 x Quick installation guide
