ME50G
- Dual Band Speeds up to 1900Mbps: 1300Mbps on 5GHz and 600Mbps on 2.4 GHz. (1)
- Gigabit Wired Connection: Provides speedy wired connections for PCS, IPTVS, and game consoles.
- 3×3 MU-MIMO: Connect more devices simultaneously.
- Works with Any Routers: To Extend Wi-Fi to Where You Need It Most. (2)
- Easy One-Touch Setup: Press the WPS button to expand your Wi-Fi coverage in seconds.
- Built-In Access Point Mode: Works as RE mode and AP mode.
- Manage Your Network with App: Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
AC1900

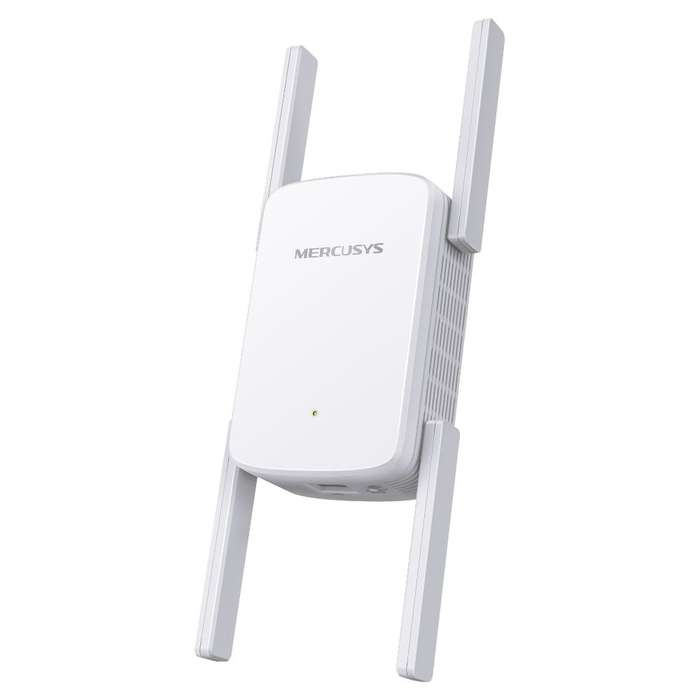

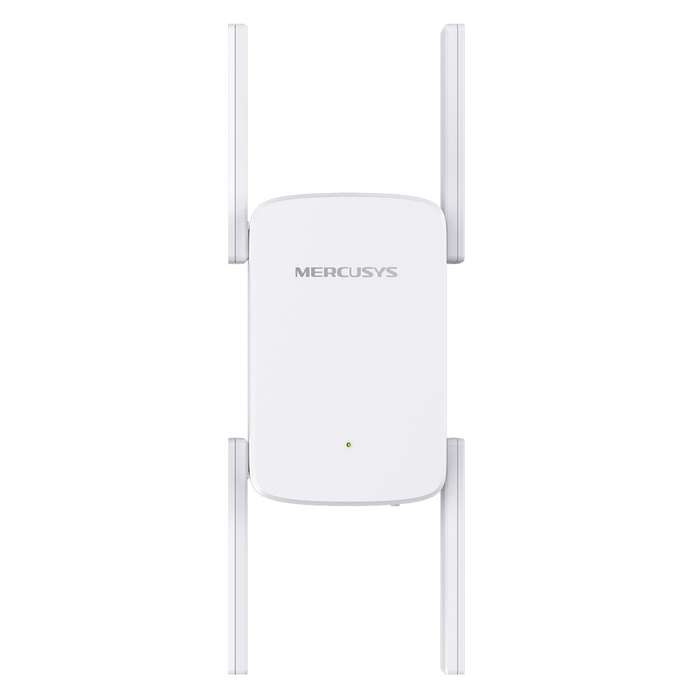

MERCUSYS Wi-Fi Range Extender
ME50G
Features:
Fast AC1900 Dual Band Wi-Fi:
- Enjoy fast extended Wi-Fi anywhere up to 1900Mbps (1300Mbps on 5GHz, 600Mbps on 2.4GHz), ideal for 4K streaming and online gaming.
Extend Wi-Fi to Where You Need It Most:
- Expand coverage of your Existing Router. The four adjustable high-gain antennas extend Wi-Fi signals to where your router's Wi-Fi cannot reach. This AC1900 Range Extender will work with all your existing internet-connected devices. (2)
Advanced Features Made for Speed:
- Adaptive Path Selection: Keeps your network running at top speed by automatically choosing the fastest connection path to the router.
- High-Speed Mode: Use both Wi-Fi bands to enjoy super-fast connections ideal for HD streaming and gaming.
Effortless One-Touch Setup:
- Press the WPS button on your router and extender to expand your Wi-Fi coverage in seconds.
Step 1: Press the WPS button on your router and the ME50G.
Step 2: Relocate the ME50G to the best place with a smart signal indicator.
(Note that the multicolor LED helps you find the right location for your range extender for the best Wi-Fi extension)
Built-In Access Point Mode:
- ME50G is more than just a Wi-Fi range extender. Connect your wired internet connection to the ME50G via an Ethernet cable to turn it into a dual-band Wi-Fi access point.
Control at Your Fingertips:
- Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
Notes:
(1) Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and the number of connected devices is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
(2) The product may not be compatible with routers or gateways with firmware that has been altered, is based on open-source programs, or is non-standard or outdated.
(3) Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors, and other environmental conditions.
Specifications:
Wireless
- Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
- Frequency: 2.4GHz, 5GHz
- Wi-Fi Speeds: 600Mbps at 2.4GHz, 1300Mbps at 5GHz
- Reception Sensitivity:
1/ 5GHz:
a) 11g 6Mbps: -95.5dBm
b) 11g 54Mbps: -77.5dBm
c) 11n VHT20 MCS8: -71.5dBm
d) 11n VHT40 MCS9: -67dBm
e) 11n VHT80 MCS9: -63dBm
2/ 2.4GHz:
a) 11g 6Mbps: -96dBm
b) 11g 54Mbps: -78dBm
c) 11n VHT20 MCS8: -72dBm
d) 11n VHT40 MCS9: -67.5dBm
- Transmission Power: < 20dBm
- Wireless Security: WPA, WPA2, WPA3-PSK
Hardware
- Interfaces: 1 x Gigabit Ethernet Port
- Button: WPS / Reset Button
- Antenna Type: 4× External Antennas
- Power Consumption: 12W
Others
- Certifications: RoHS
- Environment:
a) Operating Temperature: 0 Degree Celsius - 40 Degree Celsius
b) Operating Humidity: 10% - 90% Non-Condensing
What's in the box
1 x ME50G Wi-Fi Range Extender
1 x Quick Installation Guide
