Full Gigabit Ports:
8× 10/100/1000 Mbps RJ45 ports
Two Cables in One:
With 7 PoE+ ports, transfers data and power on one single cable
High Power PoE+:
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE portsx
Long-Range up to 250 m:
Increases PoE transmission distance to 250 m by Extend Modex
Isolation Mode:
One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices:
Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing:
Allows for efficient heat dissipation and long network life
Plug and Play:
Simple to use and saves time and effort
7 PoE+ Ports (65 W Budget) for Network Deployment:
All five ports of the MS105GP are gigabit ports, with four PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget for the 7× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
- Long-Range up to 250 m with Extend Mode:
Extend Mode increases PoE transmission distance to 250 m. MS108GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas. - Traffic Separation:
With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection. - Port Prioritization:
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains. - Plug and Play:
MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort. - Durable and Silent:
MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
PoE Ports:
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W
Interfaces:
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply:
External Power Adapter (Output: 53.5V/1.31A)
Standards and Protocols:
IEEE 802.3x Flow Control
Data Rates:
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Mac Address Table:
8K
Max Power Consumption:
5.07W 220 V / 50 Hz, no PD connected)
77.33W 220 V / 50 Hz, with 65W PD connected)
What's in the box

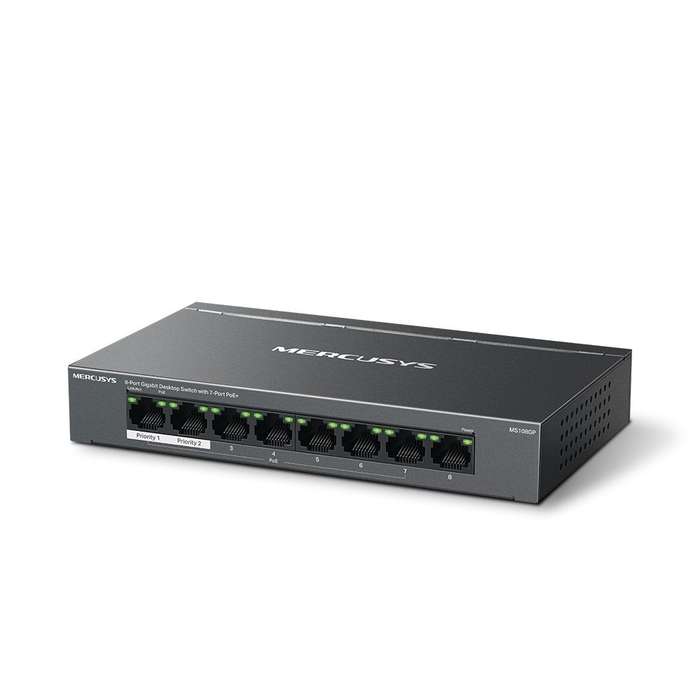

8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
Power Adapter
Quick Installation Guide
