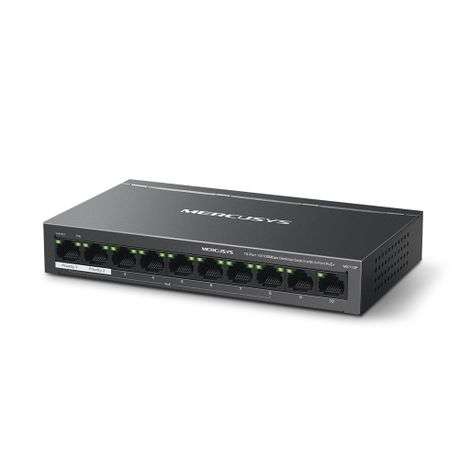

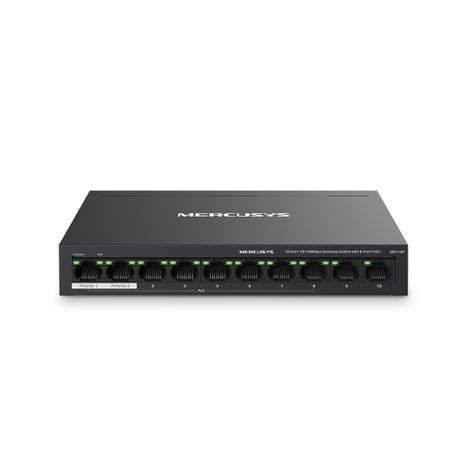

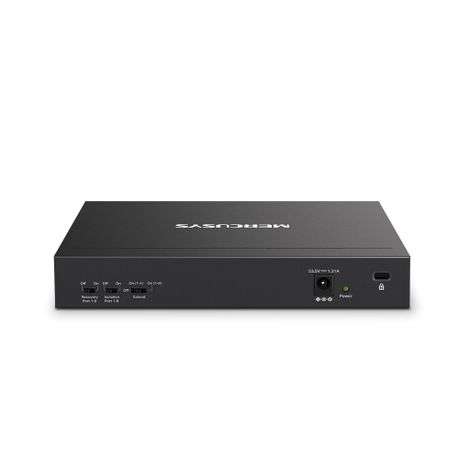

MS110P
10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE portsx
2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Modex

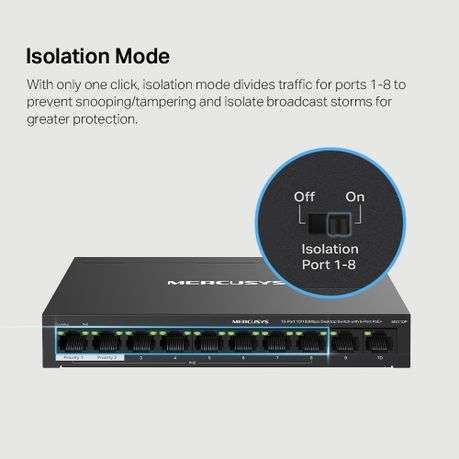

Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life

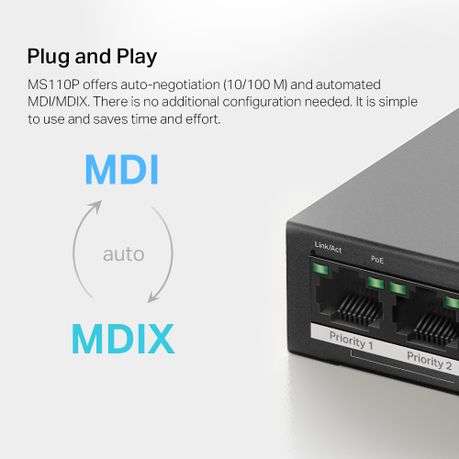

Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Features:

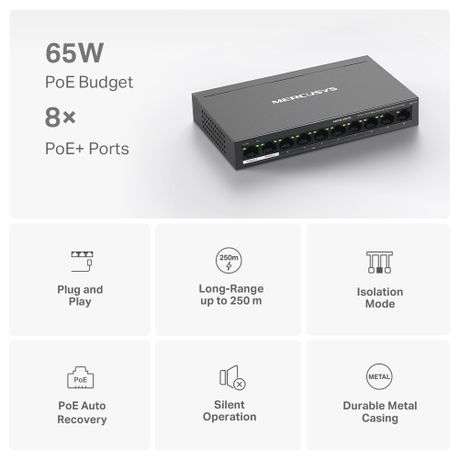

8 PoE+ Ports (65 W Budget) for Network Deployment:
Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budgetx for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
Power over Ethernet: Two Cables in One:
No Fuss - No need for electricians; simplify installation and deployment.
Cost-Efficiency- Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility- Deployment in complex situations is made possible by more placement possibilities.
Power Management- Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at- PoE ports compliant with the 802.3af/at Powered Devices.

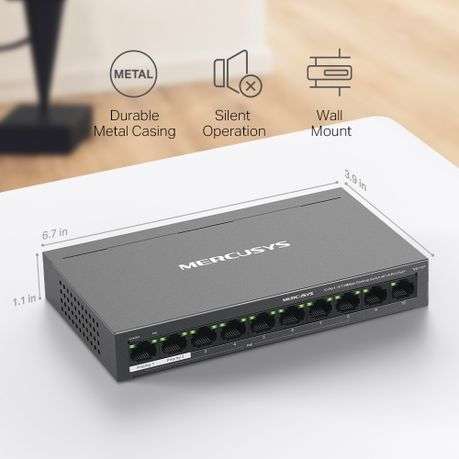

Durable and Silent:
MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

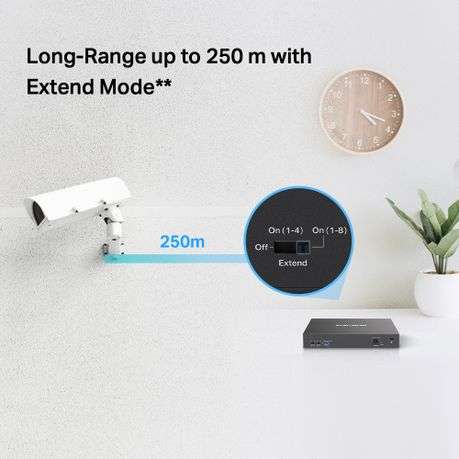

Long-Range up to 250 m with Extend Mode:
Extend Modexx increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Specifications
Hardware:
- PoE Ports : RJ45, PoE Ports: Port 1- Port 8, PoE Power Budget: 65 W
- Interfaces: 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply : External Power Adapter (Output: 53.5V/1.31A)
- Installation: Desktop, Wall Mount
- Standards and Protocols: IEEE 802.3x Flow Control
- Data Rates : 10/100 Mbps at Half Duplex, 20/200 Mbps at Full Duplex
- Jumbo Frame : 2 KB
- Mac Address Table: 2K
- Max Power Consumption: 10.064 BTH/h(no PD connected), 263.568 BTH/h(with 65W PD connected
Others:
Environment:
Operating Temperature: 0 ~40 (32 ~104 )
Storage Temperature: -40 ~70 (-40 ~158 )
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
What's in the box
1 X 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
1 X Power Adapter
1 X User Manual
