Brand New & Sealed with Manufacturer Warranty!
Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

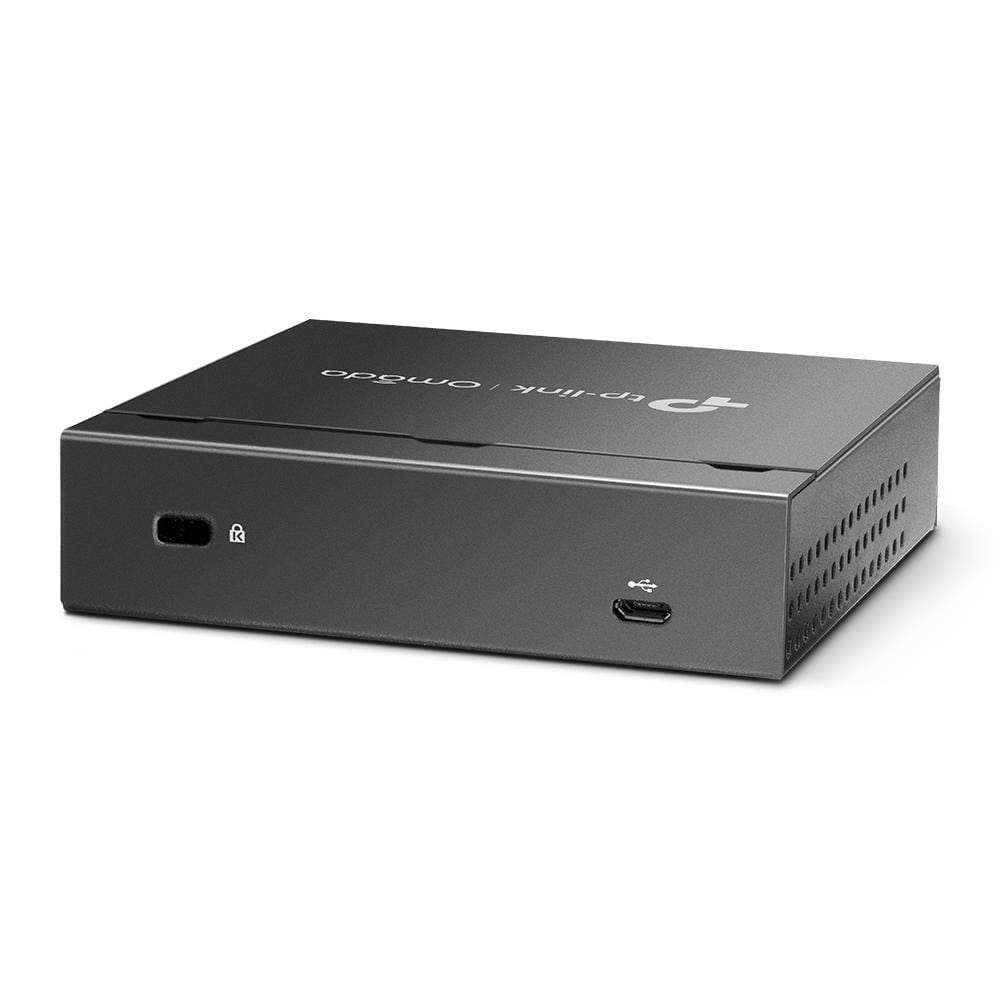

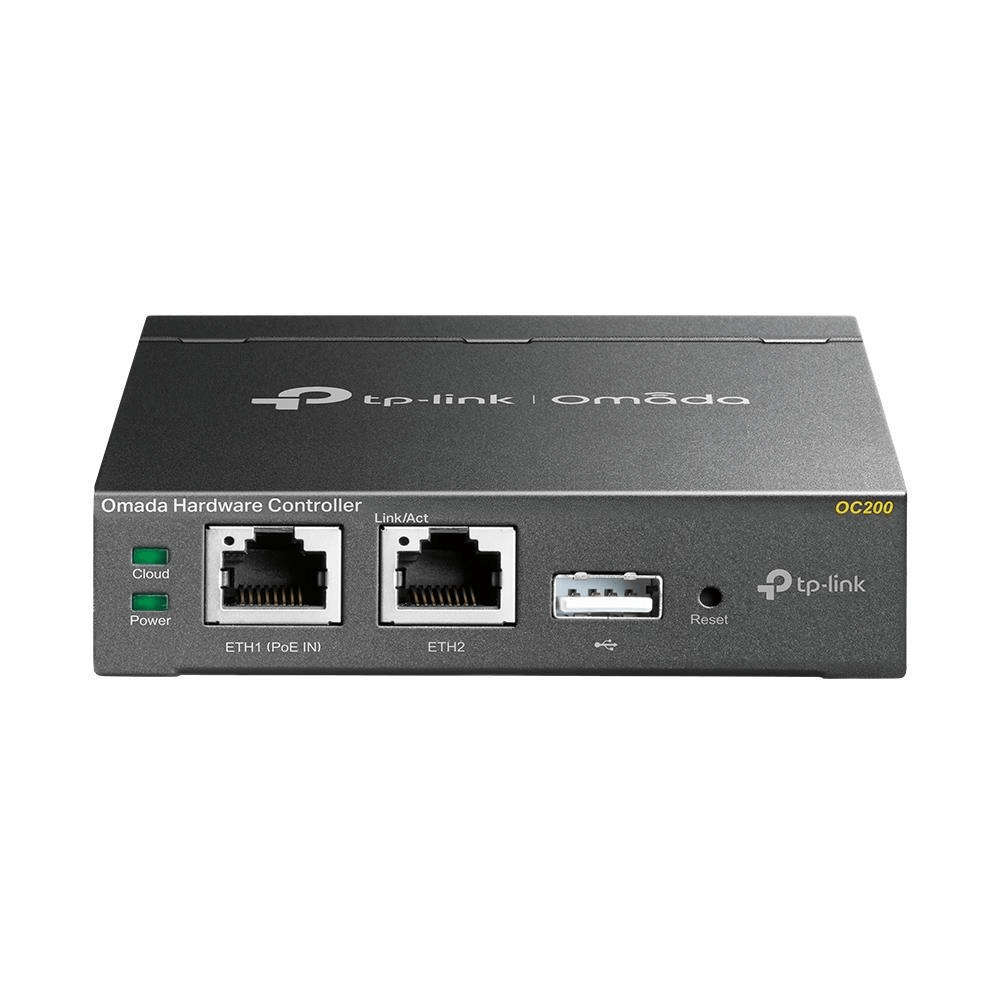

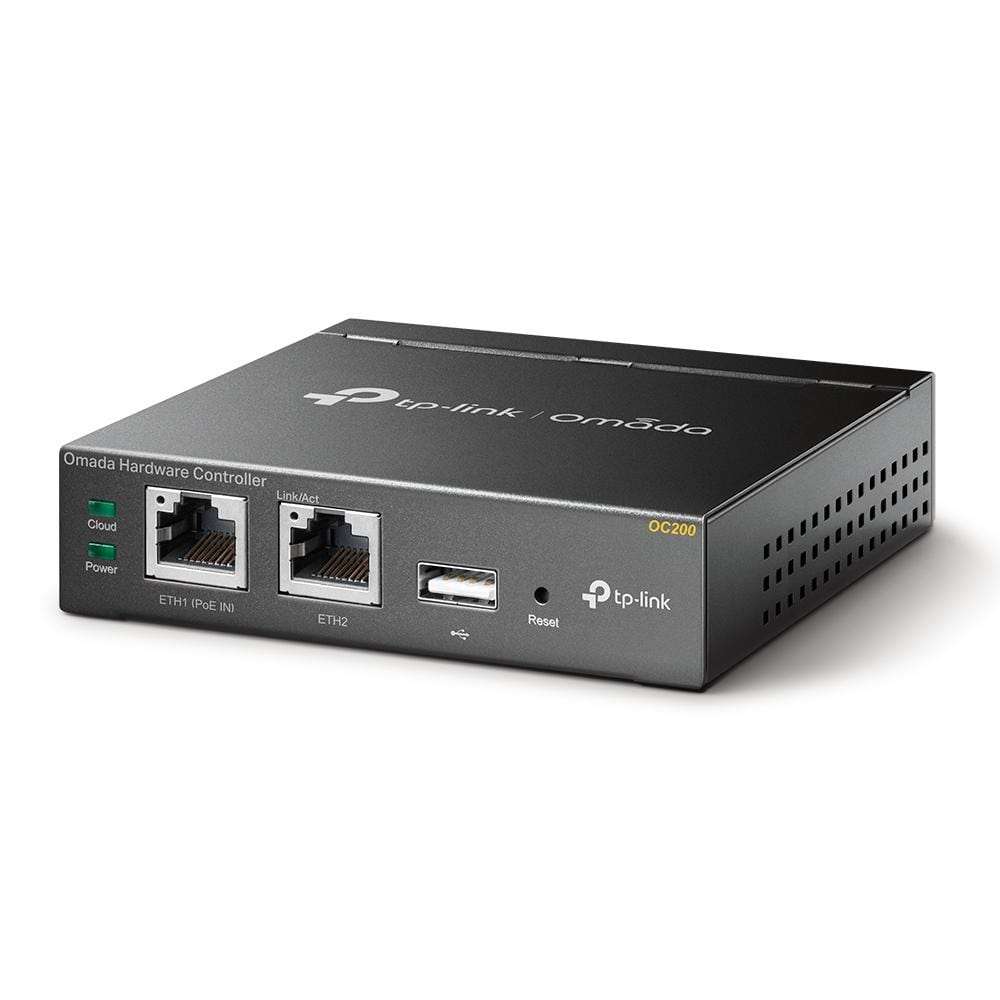

TP-Link OC200 Omada Cloud Controller Gateway/Controller 10/100 Mbits
Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
Features:
Free Cloud Management — Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
Technical Specifications:
Hardware Features
Interface
10/100Mbps Ethernet Port × 2
USB 2.0 Port × 1
Micro USB Port × 1
Power Supply
802.3af/at PoE or Micro USB (DC 5V, Minimum 1A)
Dimensions (W x D x H)
3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Features
Wireless Function
L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS
Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
AP Management
Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF
Authentication
Captive Portal
Management Features
Omada App
Yes
Centralized Management
Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
Up to 1,000 Clients
Cloud Access
Yes
L3 Management
Yes
Multi-site Management
Yes
Additional Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
Others
Certification
CE, FCC, RoHS
System Requirements
Microsoft Windows 10, 8, 7, Vista, XP, or MAC OS, NetWare, UNIX, or Linux
Environment
Operating Temperature: 0⃗40⃠(32â—104â)
Storage Temperature: -40⃗70⃠(-40â—158â)
Operating Humidity: 10%—90% non-condensing
Storage Humidity: 5%—90% non-condensing
What's in the Box:
