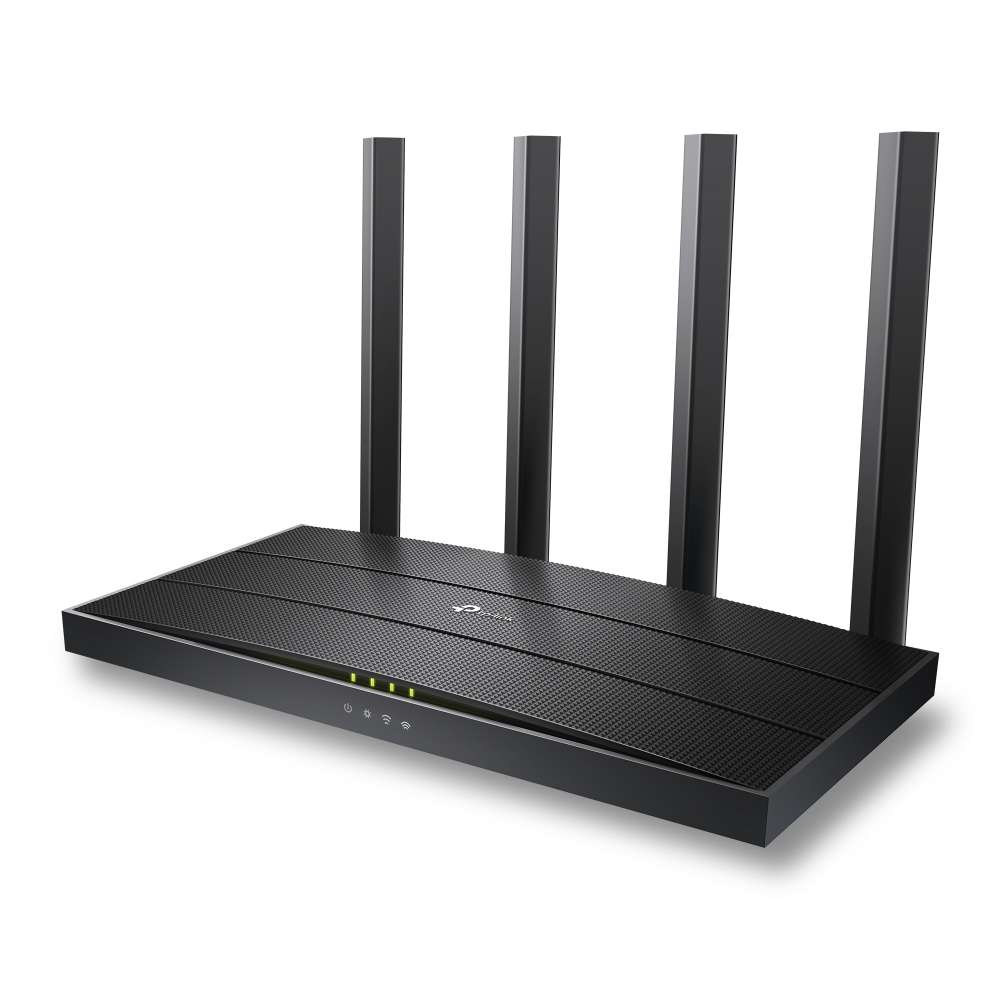

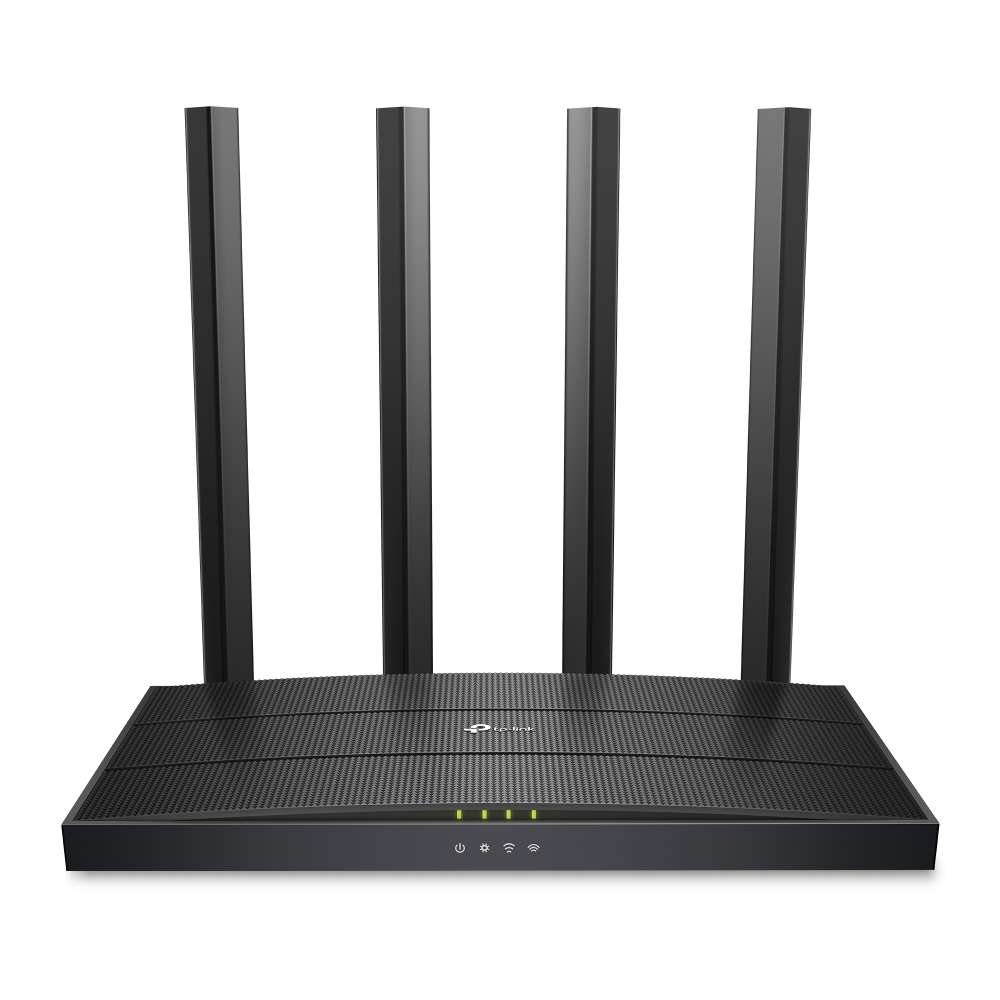

TP-Link Omada ER605W AC1200 Wi-Fi Gigabit Gateway
Reliable Business Router with Integrated Dual-Band Wi-Fi
The TP-Link Omada ER605W delivers stable and secure business networking with built-in dual-band Wi-Fi, making it ideal for small offices, retail environments and remote sites. Designed for seamless Omada SDN integration, it offers centralised cloud management, advanced security and flexible multi-WAN connectivity in a single solution. With reliable wireless performance, robust VPN support and intelligent traffic management, the ER605W ensures efficient and secure connectivity for both wired and wireless networks.
FEATURES
Dual-Band Wi-Fi 5 - Combined wireless speeds up to 1,167Mbps (300Mbps on 2.4GHz + 867Mbps on 5.0GHz)

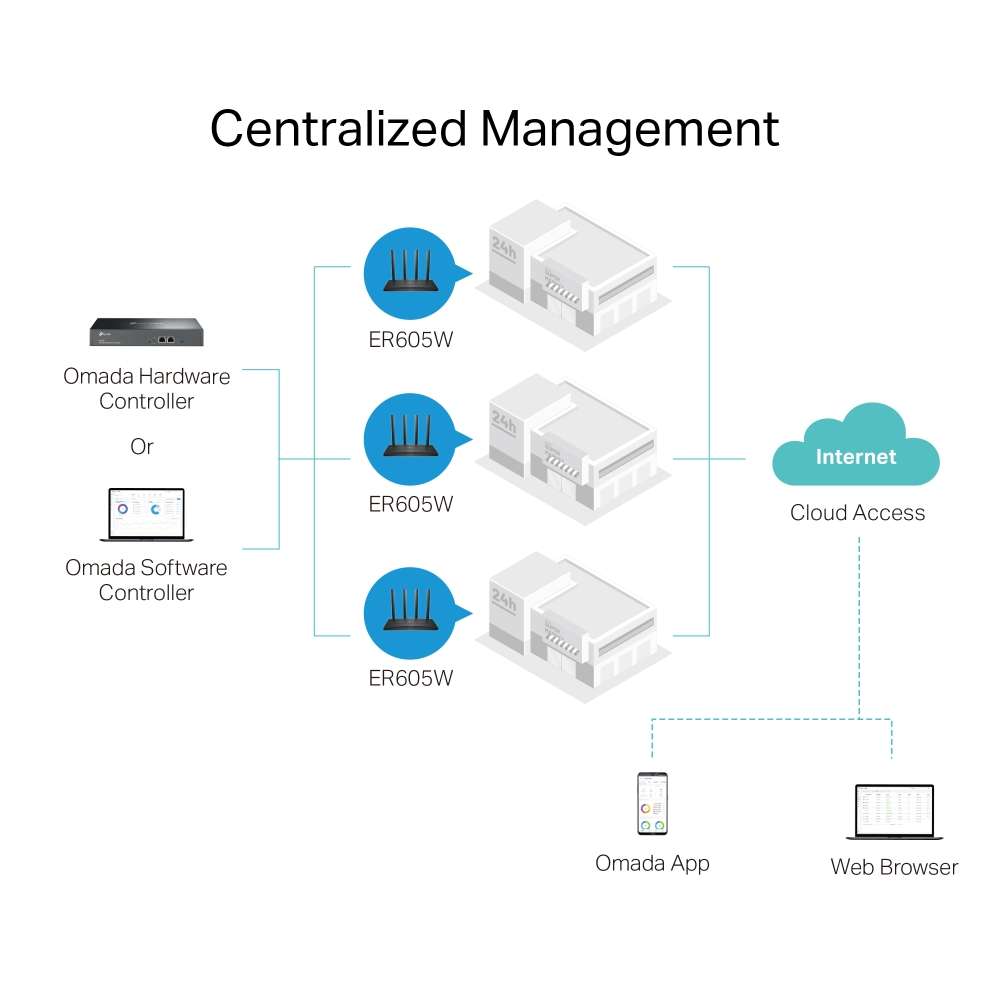

Omada SDN Integration - Centralised cloud management via Omada Controller, app or web interface
Multi-WAN Support - up to 3× WAN ports with load balancing for improved uptime and reliability

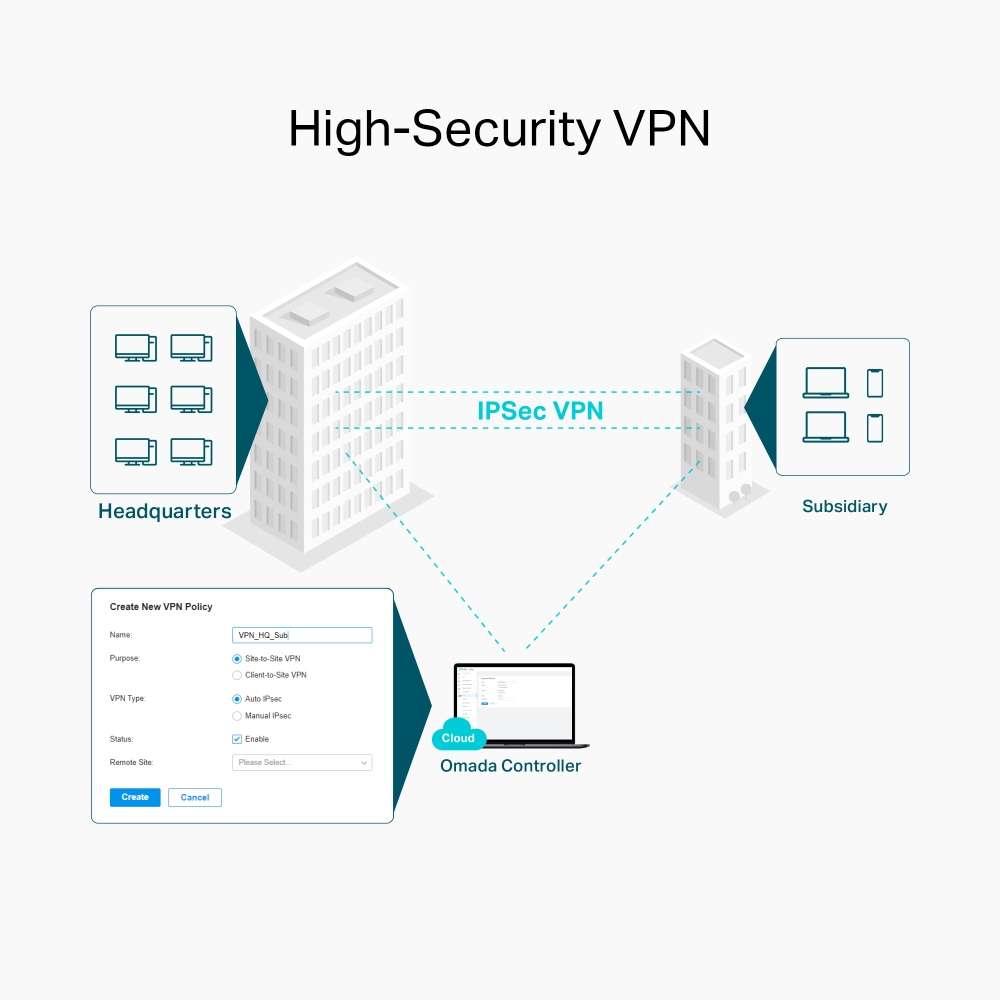

Advanced VPN - Supports IPsec, PPTP, L2TP and OpenVPN for secure remote access
Gigabit Connectivity - 5× Gigabit ports for high-speed wired networking
Enterprise Security - Firewall, VLAN, QoS and access control for secure and efficient network management
SPECIFICATIONS
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5.0GHz
Wi-Fi Speed: up to 300Mbps (2.4GHz) + 867Mbps (5.0GHz)

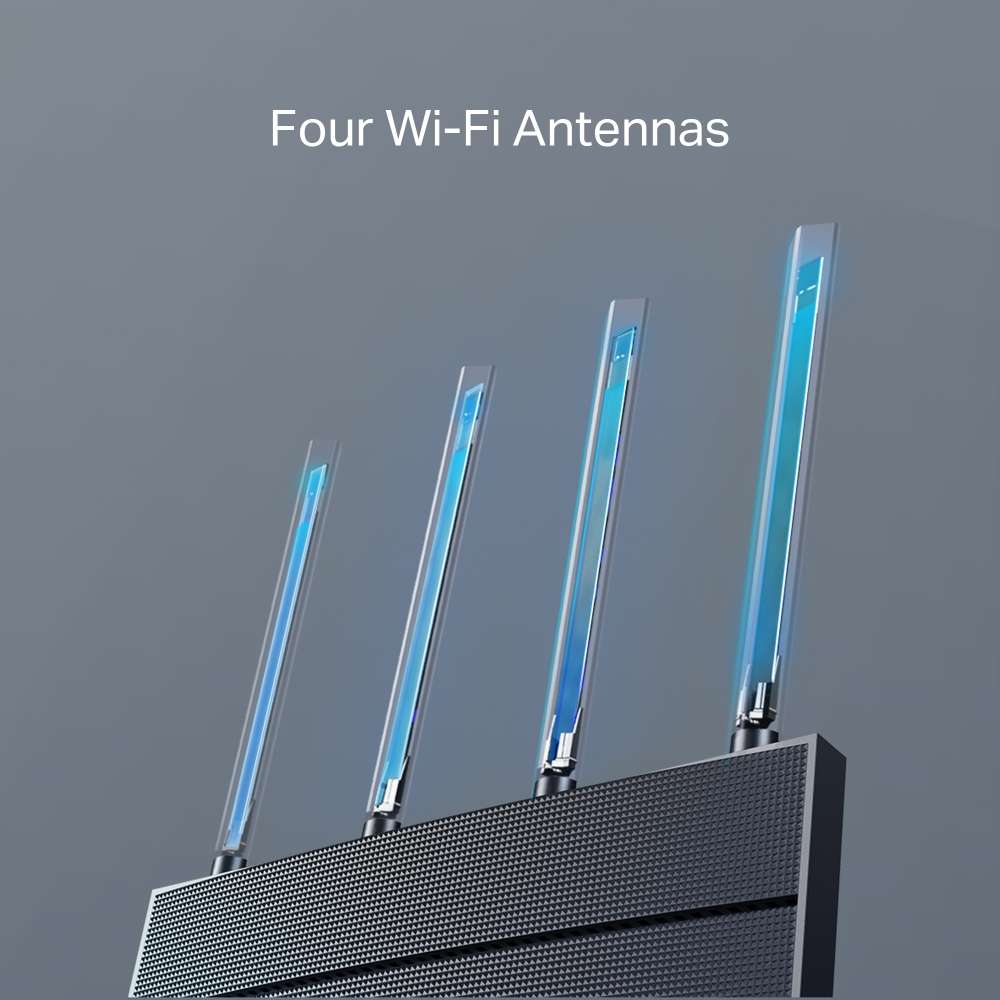

Antennas:
- 2.4GHz: 2× 5dBi Fixed Antennas
- 5.0GHz: 2× 5dBi Fixed Antennas
Max. SSIDs: 16× (8× per Band)
INTERFACES AND HARDWARE

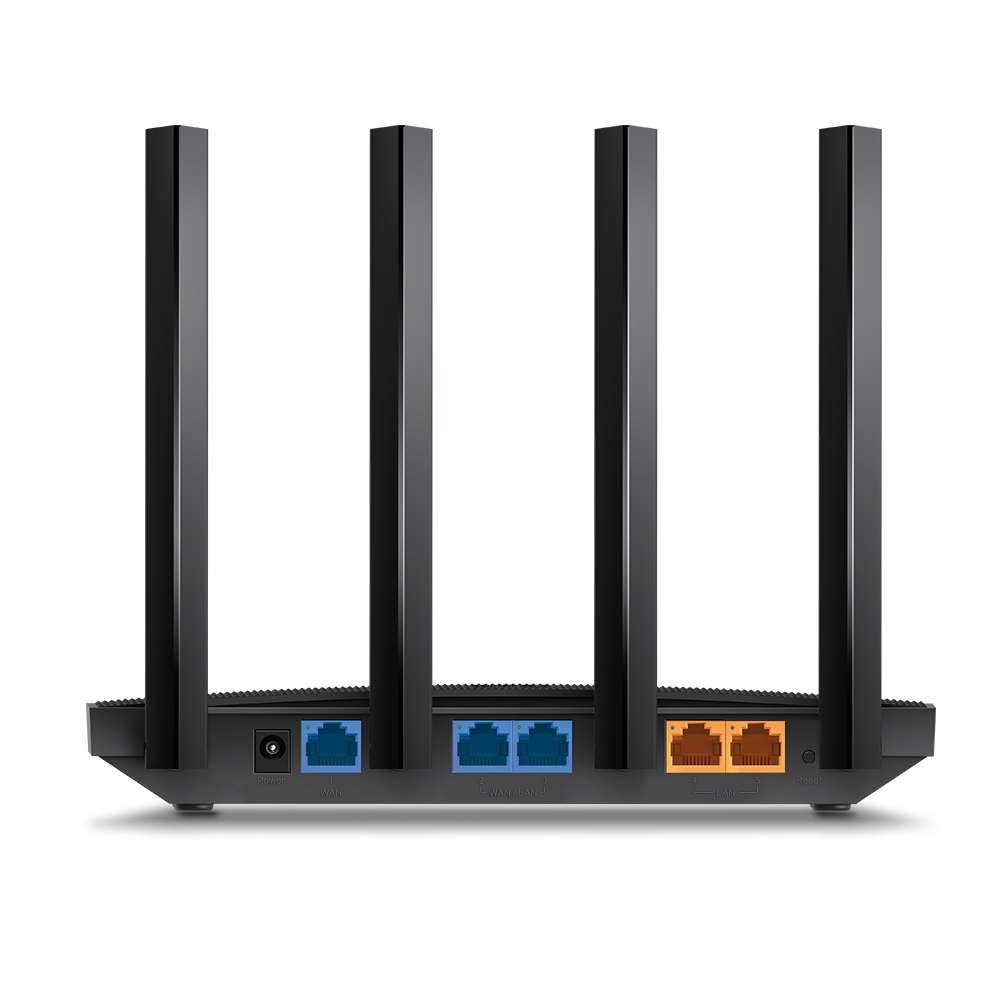

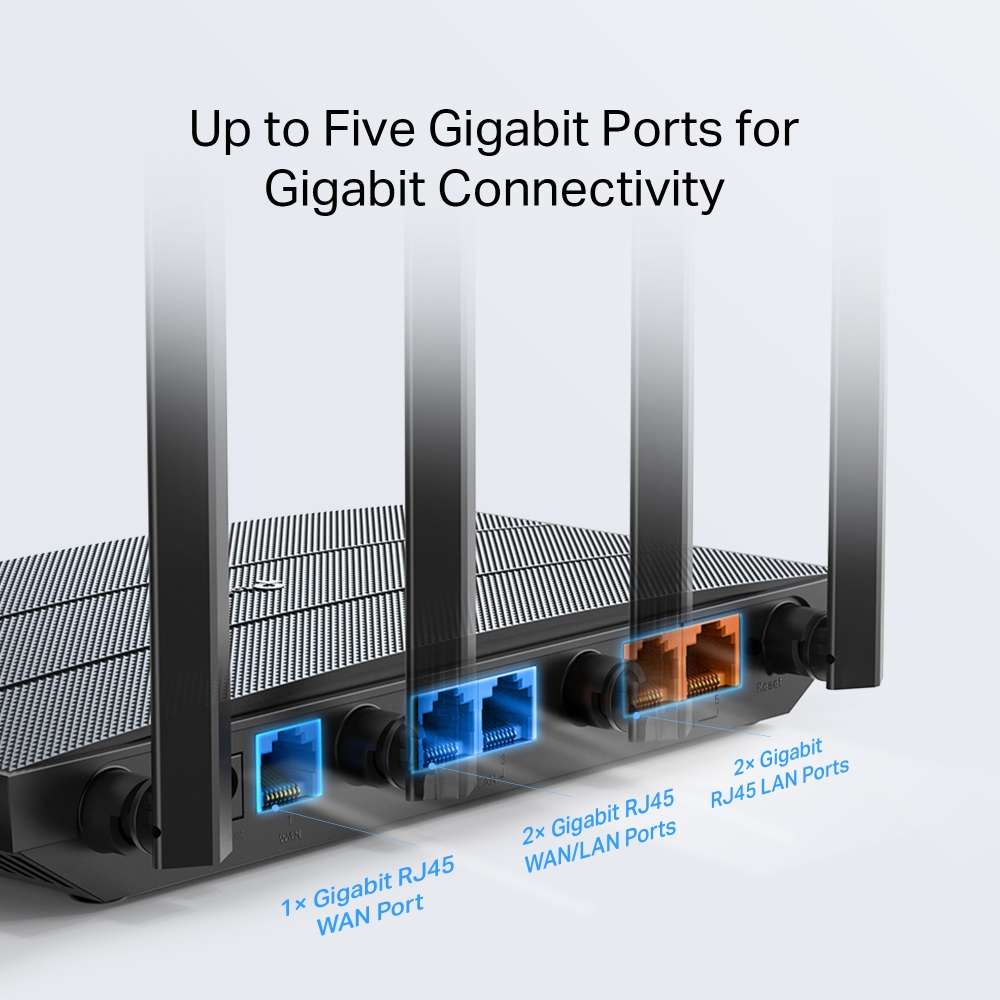

Ports:
- 1× Gigabit WAN
- 2× Gigabit WAN/LAN
- 2× Gigabit LAN
Button: Reset
Power Supply: 12VDC 1A
Flash: 128MB NAND
DRAM: 256MB DDR3
Max. Power Consumption: 9W
Mounting: Desktop / Wall Mount

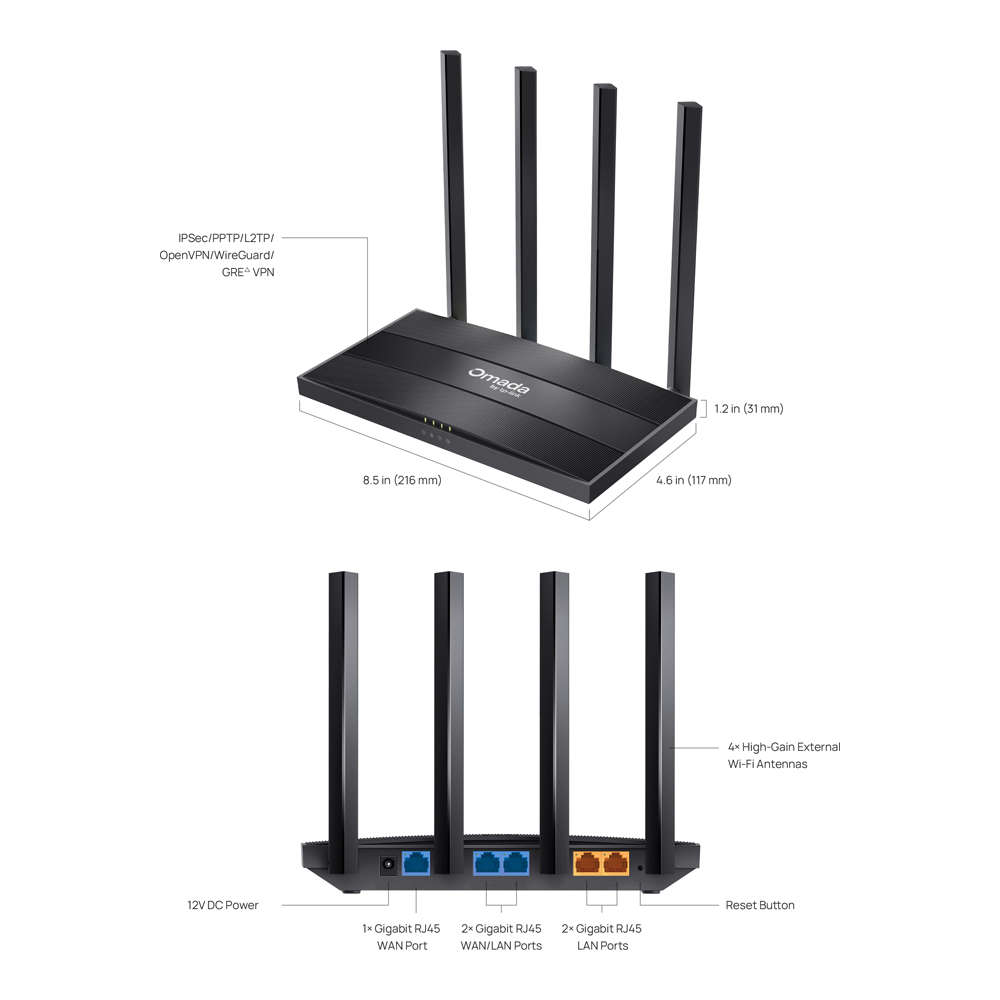

Dimensions (W × D × H): 215 × 117 × 31mm
PERFORMANCE
Concurrent Sessions: 50,000
New Sessions: 2,028/sec
NAT Throughput: up to 900Mbps+
IPsec VPN Throughput: up to 175.5Mbps
WireGuard VPN Throughput: 71.2Mbps
OpenVPN Throughput: 16.8Mbps
WIRELESS FEATURES
Multiple SSIDs: up to 16×
Wireless Features: Band Steering, Load Balance, Airtime Fairness
Transmit Power Control: Adjustable
Advanced Features: VLAN, QoS, Captive Portal, RADIUS
NETWORK AND ROUTING
WAN Types: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
DHCP: Server, DHCP Reservation, DHCP Options
VLAN: 802.1Q VLAN
Routing: Static Routing, Policy Routing, RIP, OSPF
NAT: One-to-One, Multi-Net, Virtual Server, Port Triggering
VPN
Protocols: IPsec, PPTP, L2TP, OpenVPN, WireGuard
IPsec: up to 6× Tunnels (IKEv1/v2, AES256, SHA)
OpenVPN: Server/Client (up to 18× Tunnels)
WireGuard: Supported
L2TP/PPTP: Server and Client support
SECURITY
Firewall: SPI Firewall
Protection: DoS, TCP/UDP/ICMP Flood Defence
Filtering: IP/MAC/URL Filtering
Security: ARP Inspection, IP-MAC Binding
DNS Security: DNSSEC, DoH, DoT
MANAGEMENT
Management: Omada Cloud, App, Web UI
Controllers: Hardware and Software Controller Support
Features: Centralised Management, Remote Monitoring, Alerts
Maintenance: Syslog, Diagnostics, Config Backup/Restore
ENVIRONMENT
Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Operating Humidity: 10~90% RH (Non-Condensing)
Storage Humidity: 5~90% RH (Non-Condensing)
