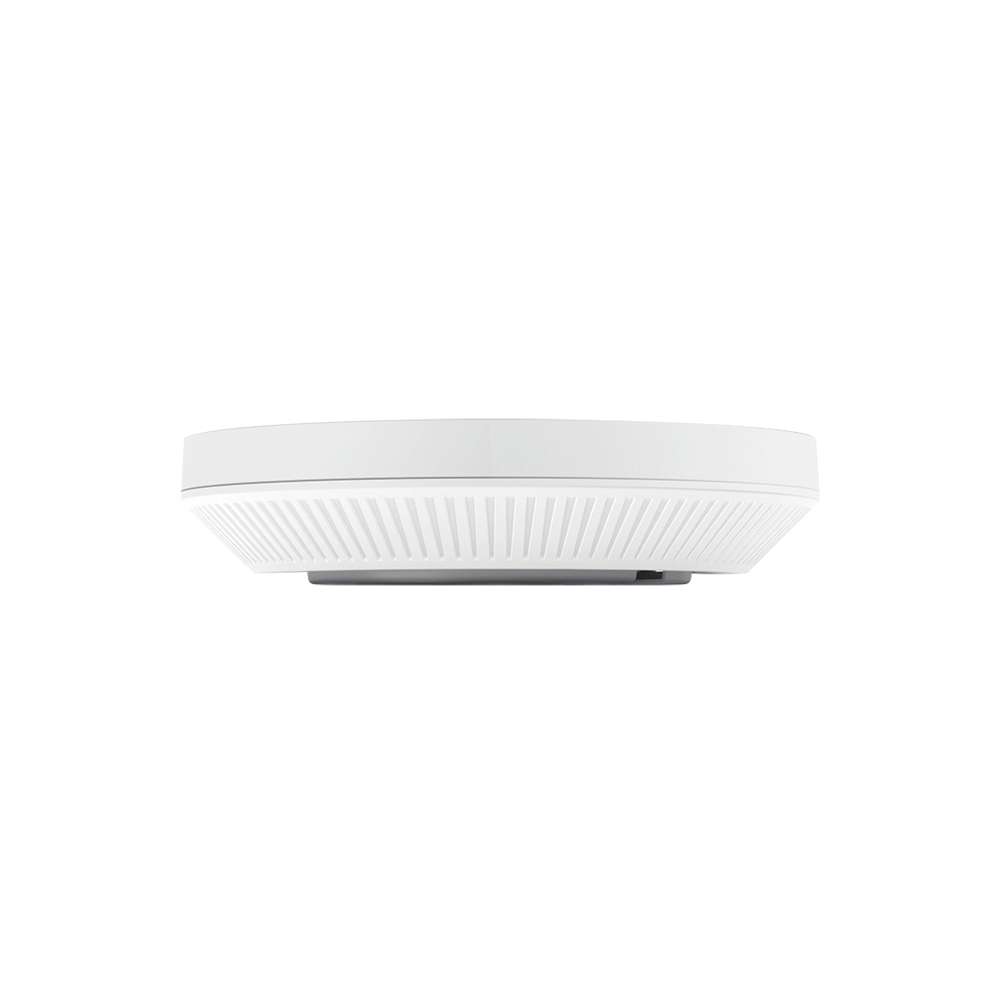

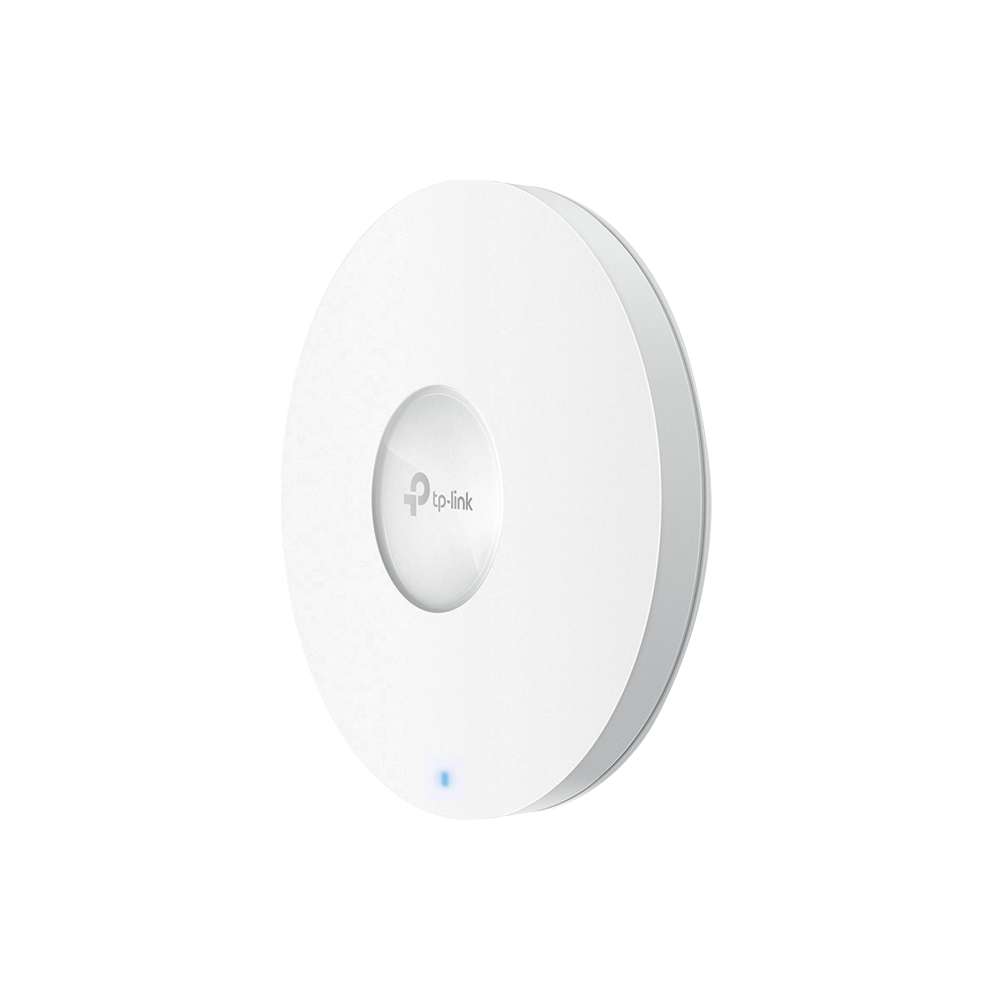

TP-Link Omada EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point
More antennas with high transmission power offer robust and extensive wireless coverage. Always have full coverage for your office.
FEATURES
Ultra-fast Wi-Fi 6 speeds: 2402Mbps on 5GHz t+ 574Mbps on 2.4GHz
Ultra-range wireless coverage by more antennas with higher transmit power
Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc
Advanced Features: Omada Mesh, Seamless Roaming, etc
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
Ultra-Slim Design: 6.3in × 1.3in elegant design brings more agility
Integrates with the Omada SDN platform for centralized management
SPECIFICATIONS
HARDWARE FEATURES
Interface: 1× Gigabit PoE+ Port
Button: Reset
Power Supply:
- 802.3at PoE
- 12V DC / 1.5 A (Power Adapter IS NOT included)
- 48V Passive PoE
Max. Power Consumption: 14.2W
Dimensions ( W x D x H ): 160 × 160 × 33.6mm
Antenna: Internal Omni
- 2.4GHz: 2× 5dBi
- 5GHz: 3× 5dBi

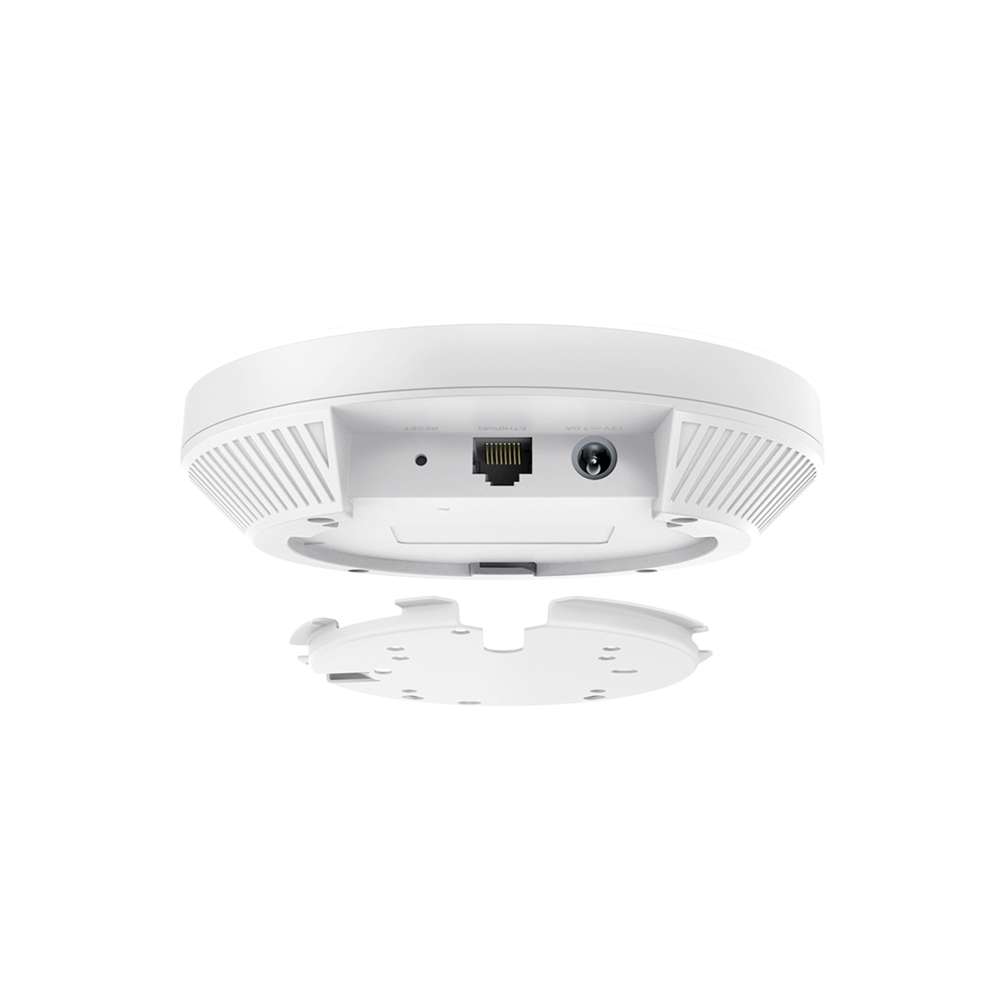

Mounting:
- Ceiling /Wall Mounting (Kits included)
- Junction Box Mounting
WIRELESS FEATURES
Coverage: 185m²
Concurrent Clients: 250+
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate:
- 5GHz: Up to 2402Mbps
- 2.4GHz: Up to 574Mbps
WIRELESS FUNCTIONS
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
HE160 (160 MHz Bandwidth)
Seamless Roaming(802.11k/v/r)§
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
WIRELESS SECURITY
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
TRANSMISSION POWER
CE:
- <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, Band1 & Band2, EIRP)
- <29 dBm(5 GHz, Band3, EIRP)
FCC:
- <26 dBm (2.4 GHz)
- <27 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
CentraliSed Management:
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access: Yes
Requiring the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes
Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification: CE, FCC, RoHS
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment:
- Operating Temperature: 040 °C (32104 )
- Storage Temperature: -4070 °C (-40158 )
- Operating Humidity: 1090% RH non-condensing
- Storage Humidity: 590% RH non-condensing
Note: DC adapter is not included in the package, and is sold separately.
