TP-Link Omada EAP683 UR Omada AX6000 Wi-Fi 6 AP Ultra
4 ﾗ 4 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.
FEATURES
Up to 5952Mbps Wi-Fi 6 Speeds: 1148Mbps on 2.4GHz + 4804Mbps on 5GHz
Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power
Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc
Integrates with the Omada SDN platform for centralized management
Advanced Features: Omada Mesh, Seamless Roaming, and more
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
SPECIFICATIONS
HARDWARE FEATURES

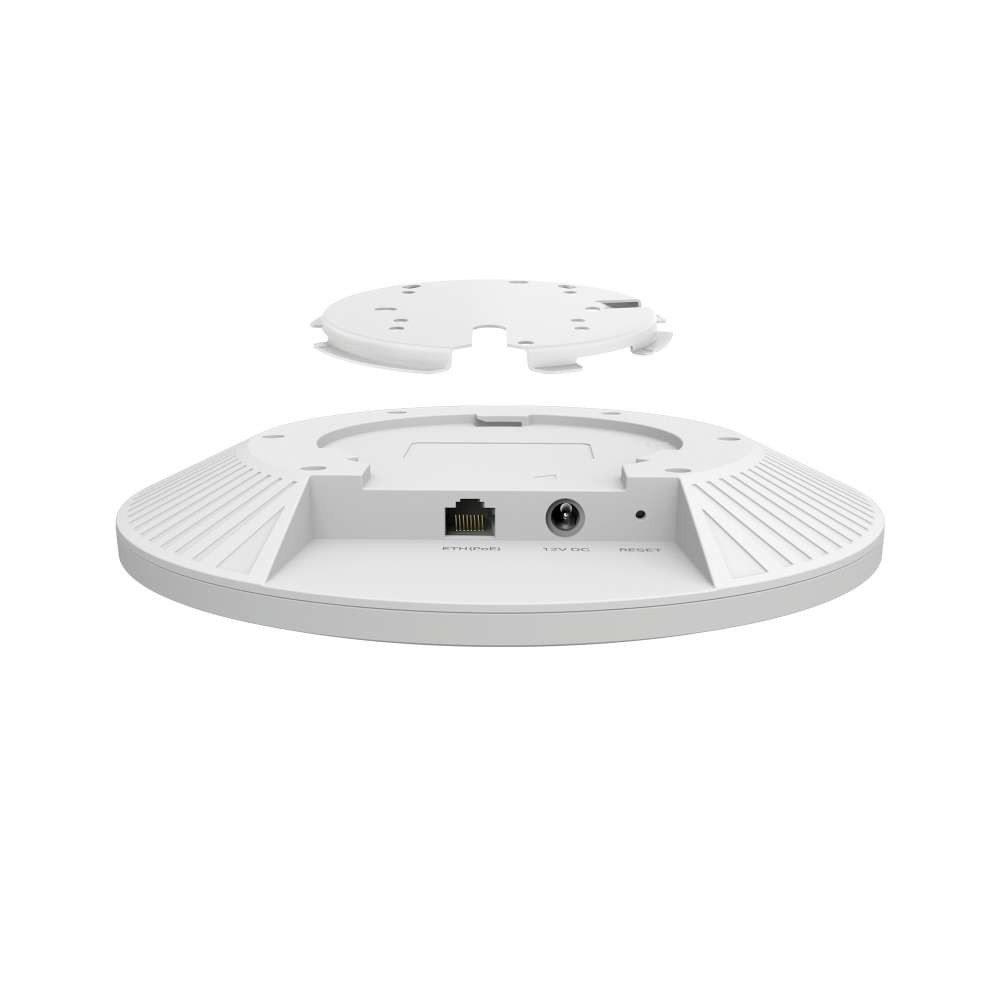

Interface: 1× 2.5 Gigabit PoE+ Port
Button: Reset
Power Supply:
- 802.3at PoE
- 12 V / 2 A DC
Note：Power adapter is not included
Max. Power Consumption: 20.43W

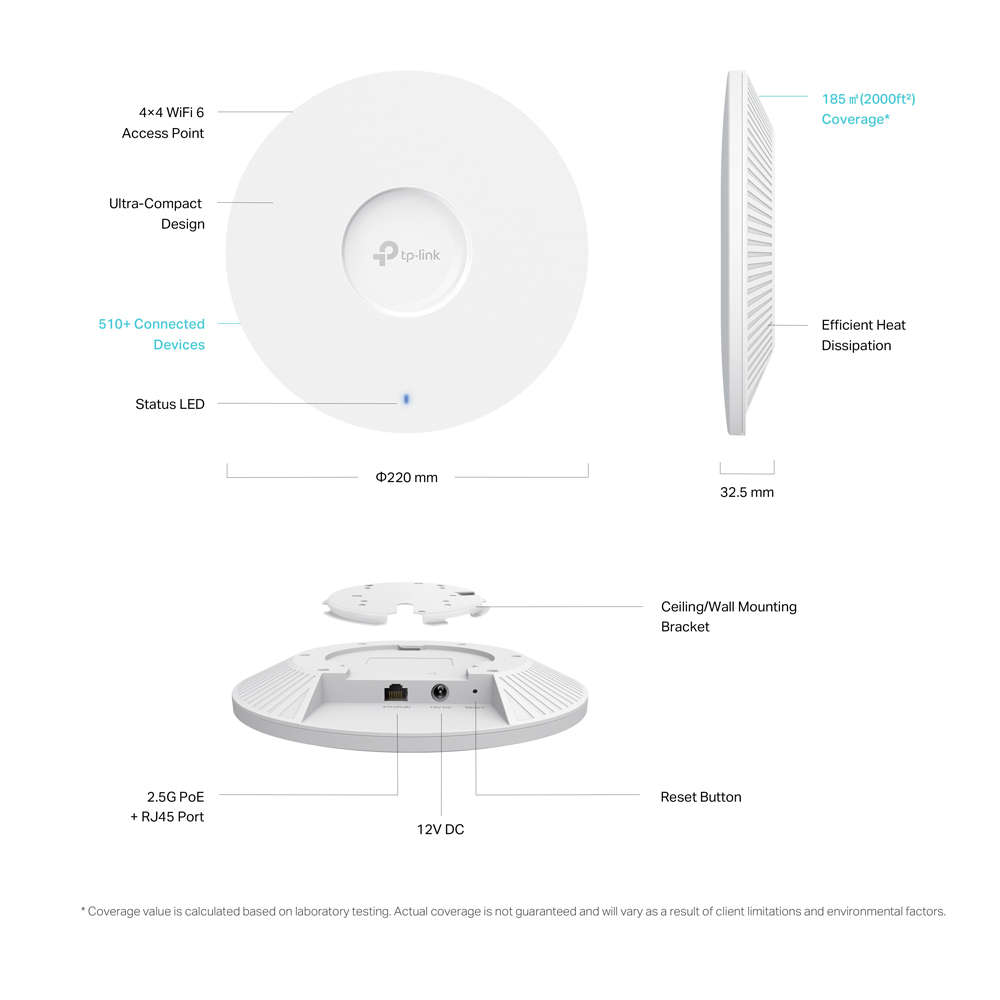

Dimensions ( W x D x H ): 220 × 220 × 32.5mm
Antenna: Internal Omni:
- 2.4GHz: 4× 4dBi
- 5GHz: 4× 5dBi
Bluetooth: Yes

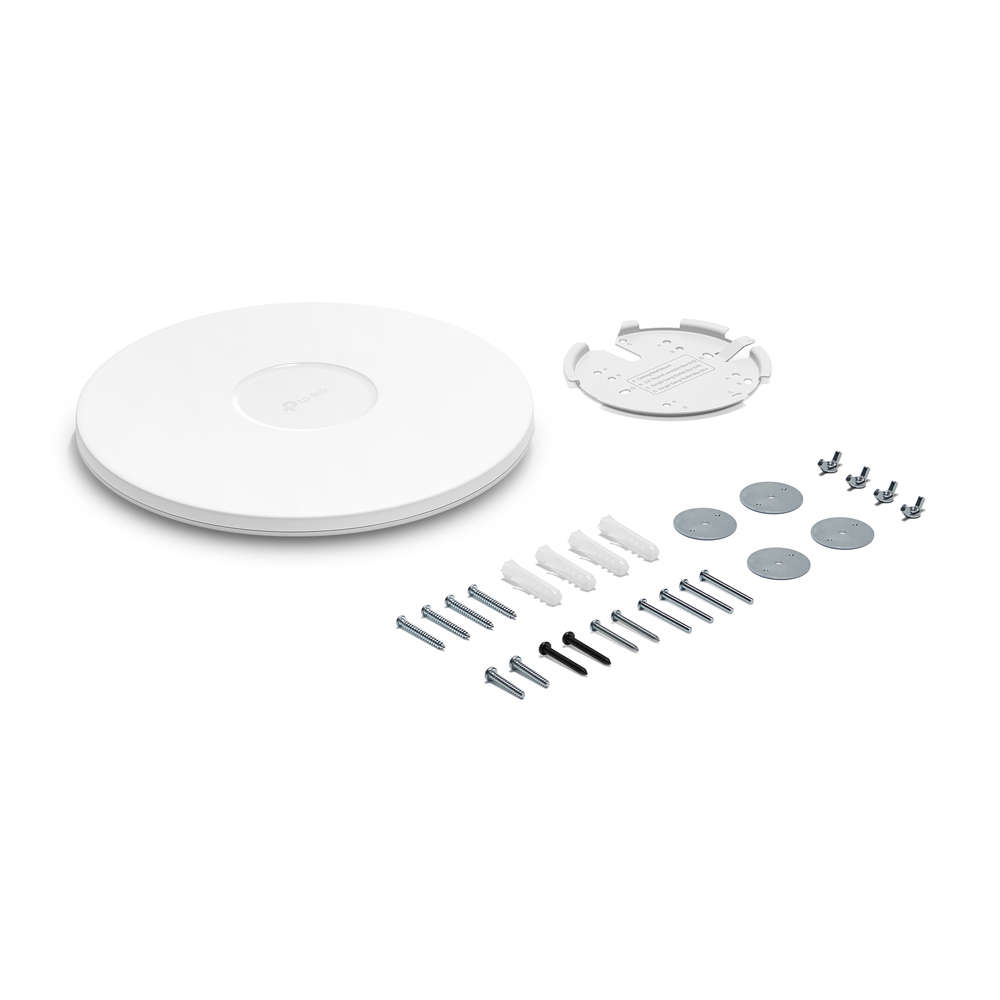

Mounting: Ceiling / Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage: 185m²
Concurrent Clients: 510+
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate:
- 5GHz: Up to 4804Mbps
- 2.4GHz: Up to 1148Mbps
WIRELESS FUNCTIONS
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
HE160 (160MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
WIRELESS SECURITY
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:
- CE: <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, band1 & band2, EIRP)
- <28 dBm(5 GHz, band3, EIRP)
- FCC: <26 dBm (2.4 GHz)
- <26 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
CentraliSed Management:
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access: Yes
Require the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller
OTHERS
Certification: CE,FCC,RoHS
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment:
- Operating Temperature: 040 °C
- Storage Temperature: -4070 °C
- Operating Humidity: 1090% RH non-condensing
- Storage Humidity: 590% RH non-condensing
