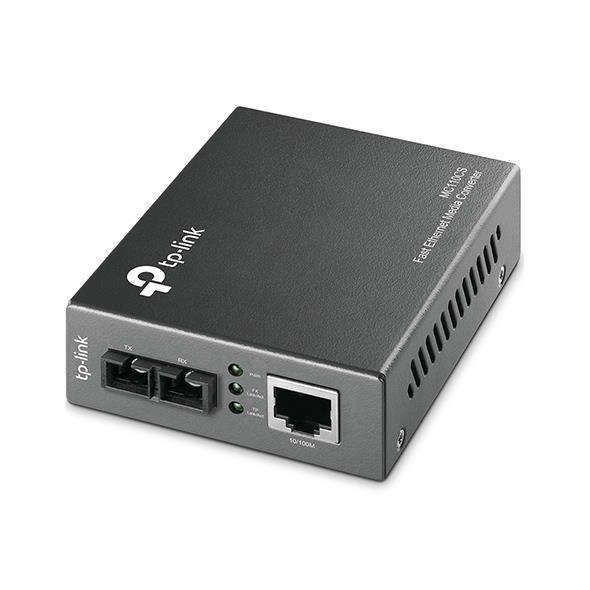

TP-Link Omada MC110CS Fast Ethernet Single-Mode Media Converter
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Features:
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Use the MC110CS 10/100 Mb/s Single-Mode Media Converter from TP-Link to connect 100BASE-FX fiber to 100BASE-TX copper lines together. This media converter supports 802.3, 802.3u, 802.3x IEEE network standards and extends single-mode fiber ranges up to 12.5 miles. The MC110CS supports full wire transfer rates of up to 100 Mb/s and works at the 1310nm wavelength transmitting and receiving data with Full-Duplex mode for the FX port. This device includes one 100M SC port, a single 10/100 Ethernet port, and an external power adapter.
Transmits and receives data with in Full-Duplex mode for the FX port
Supports auto MDI/MDIX for TX port
Extends single-mode fiber range up to 12.5 miles
1310nm wavelength on both transmitting and receiving data
Convenient, easy-to-view LED indicators for monitoring network activity
External power supply
Technical Specifications:
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 20km
Interface
1× 100M SC/UPC port
1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length
1310nm
Network Media 10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Network Media 100BASE-FX
Single-mode Fiber
Dimensions (W × D × H)
3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm)
Power Supply
External power supply
Max. Power Consumption
2.4W
LED
PWR, Link/Act
Safety & Emission
FCC, CE, RoHS
Environment
Operating Temperature: 0⃠~ 40⃠(32â ~ 104â)
Storage Temperature: -40⃠~ 70⃠(-40â ~ 158â)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
What's in the Box:
