TP-Link Omada OC220 2x GE Hardware Controller
A Mini yet Mighty
Omada Hardware Controller that Works Without a Running PC/Server
Features:
- Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
- Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.

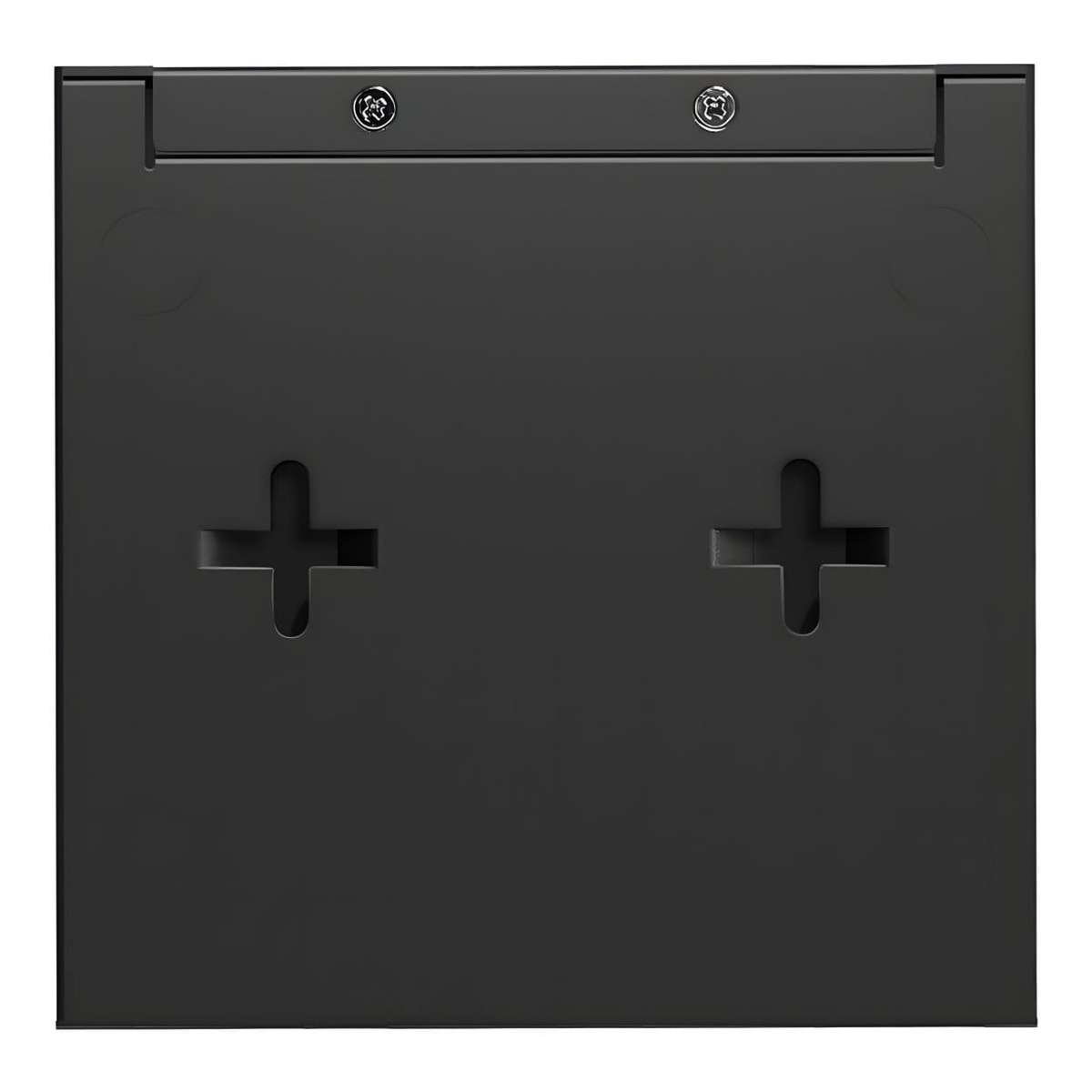

- Flexible Deployment: Powerd via 802.3af PoE or Micro USB (DC 5V/Minimum 1A) with a compact desktop or wall mount installation.
Hybrid Cloud Management for Maximum Convenience
Remotely or locally manage up to 100 Omada access points, 10 gateways, 20 switches, and two DeltaStream GPON OLTs via the Omada App or Web UI.
Technical Specifications:
Hardware Features

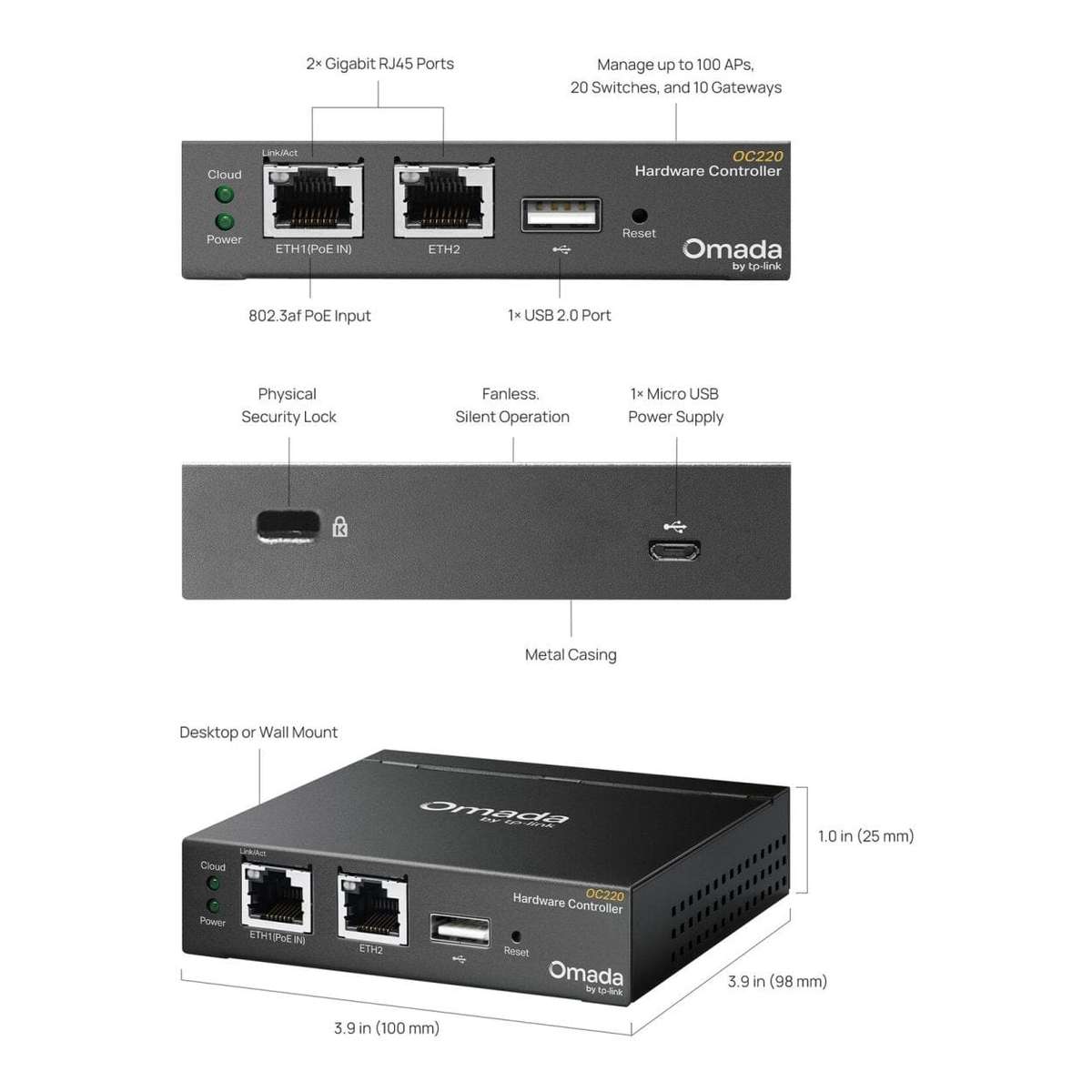

Interface: 2× Gigabit Ethernet ports, 1× USB 2.0 port, 1× Micro USB port
Power Supply: 802.3af PoE, Micro USB DC 5 V (minimum 1 A)
Dimensions (W × D × H): 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Management Features
Omada App: Yes
Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and up to two supported DeltaStream GPON OLTs
Cloud Access: Yes
L3 Management: Yes
Multi-site Management: Yes
Management Functions: Automatic device discovery, batch configuration, batch firmware upgrading, intelligent network monitoring, abnormal event warnings, unified configuration, reboot schedule, captive portal configuration
System Requirements
Supported Operating Systems: Windows 7, 8, 10, 11, Vista, XP, macOS, NetWare, UNIX, Linux
Environment
Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing
Certifications
CE, FCC, RoHS

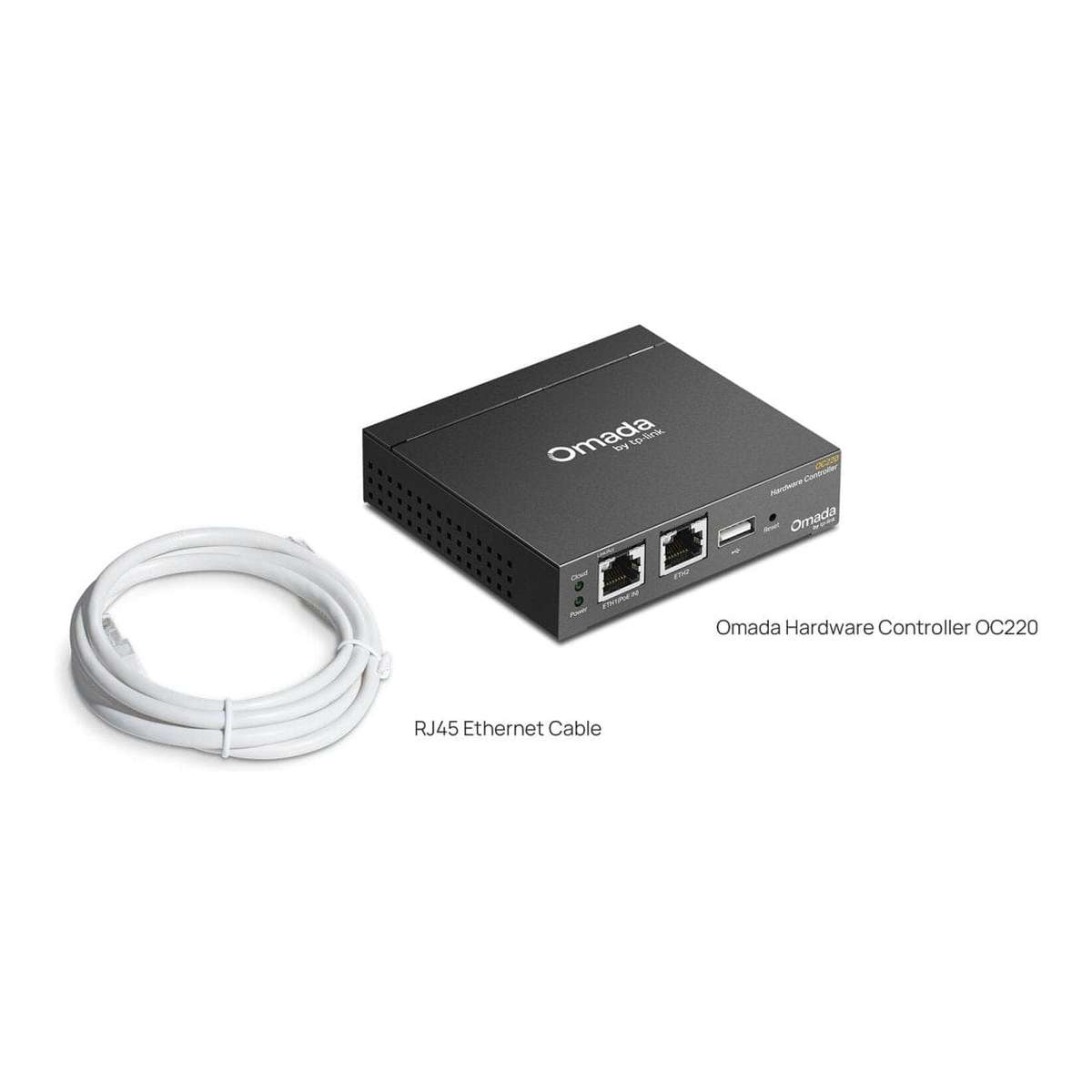

What's in the Box:
- Omada Hardware Controller OC220
- Quick Installation Guide
- RJ45 Ethernet Cable
