TP-Link Omada TL-POE160S Gigabit PoE+ Injector

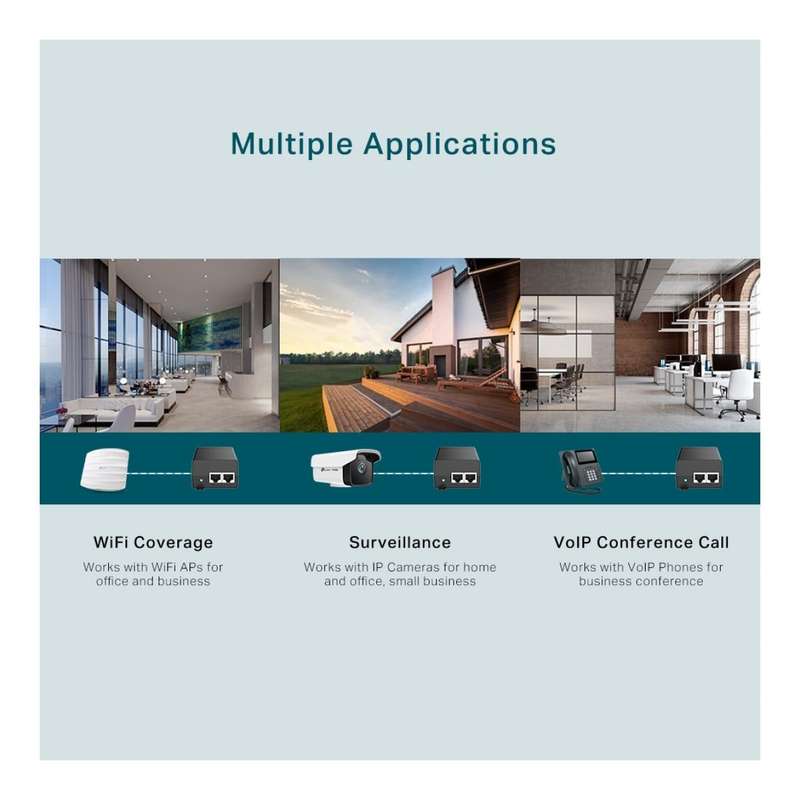

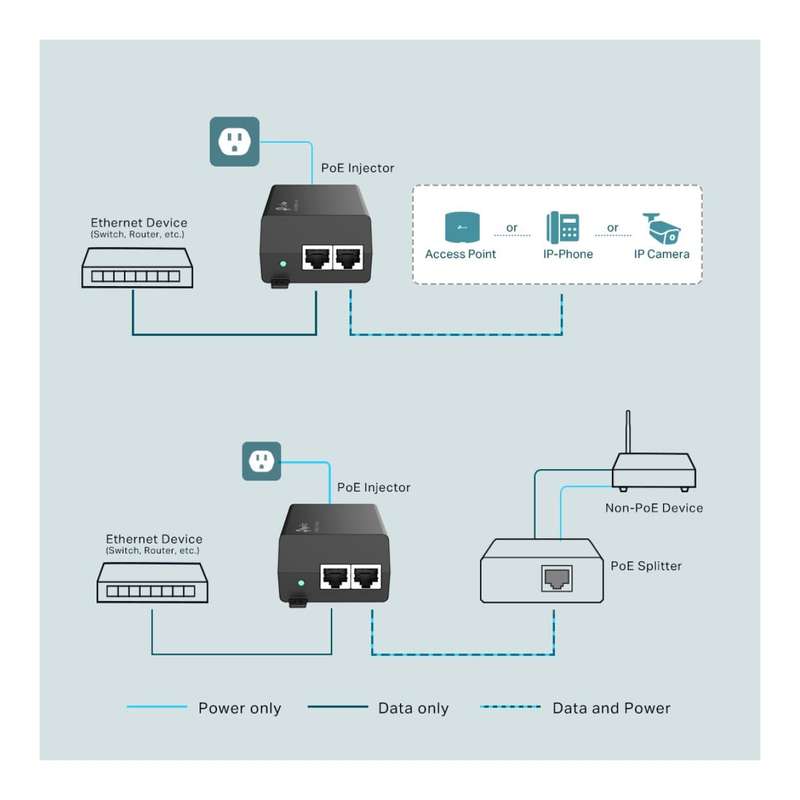

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Features:
Technical Specifications:
Network
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
Hardware Features
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)

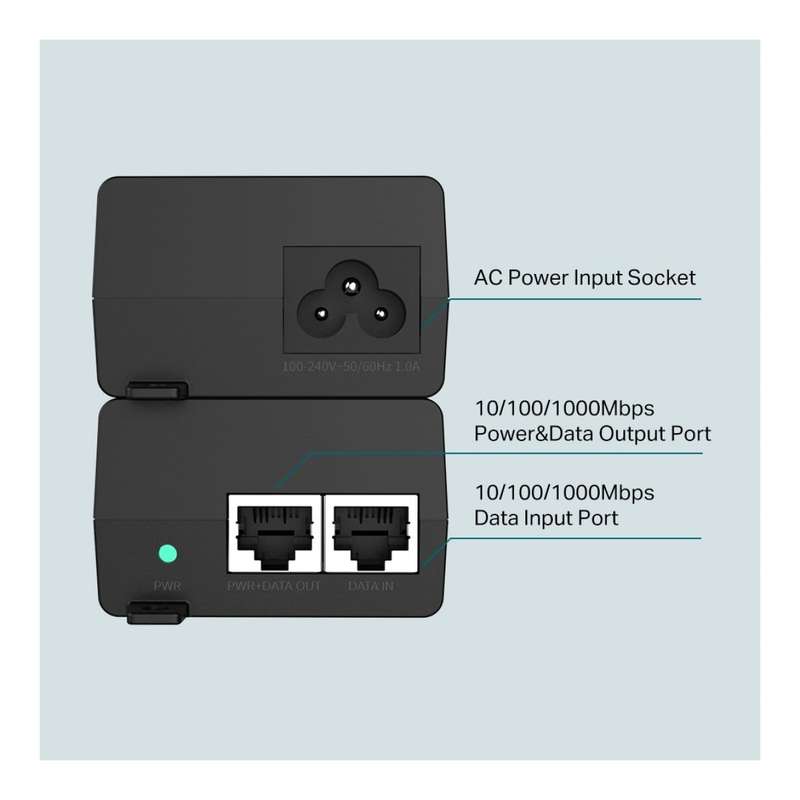

Ports
1× 10/100/1000 Mbps RJ45 data-in port
1× 10/100/1000 Mbps RJ45 power+data-out port
1× AC power port
Power Consumption
Input: 100—240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
LED Indicator
ON: Supplying power normally
OFF: No power supply
Dimensions (W × D × H)
4.9 × 2.3 × 1.4 in (125 × 59 × 37 mm)
General
Certification
FCC, CE, RoHS
Environment
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
What's in the Box:
