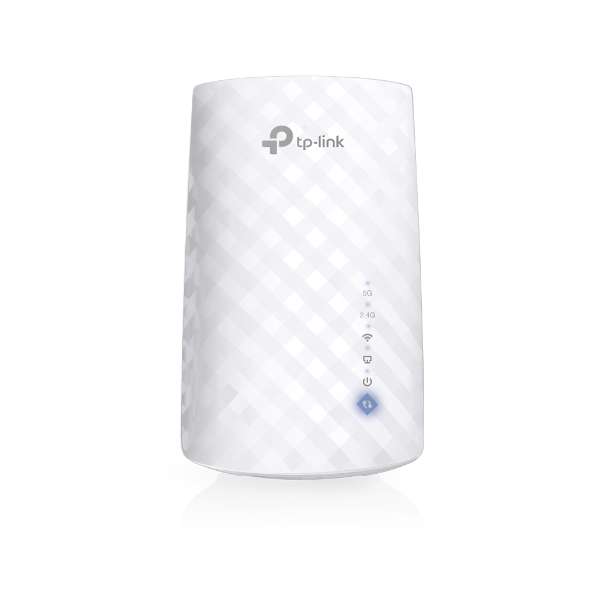

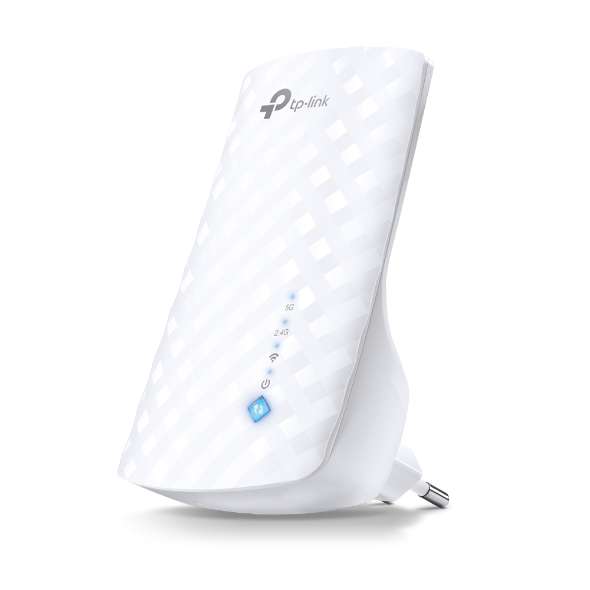

TP-Link RE190 AC750 Wi-Fi Range Extender

Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
Dual band speeds up to 750Mbps
Miniature size and wall-mounted design make it easy to deploy and move flexibly

HARDWARE FEATURES
Button WPS Button, RESET Button
Input Power 100-240V~50/60Hz
Power Consumption 7.0W
Dimensions 4.3×2.59×1.53 in. (110.0×65.8×38.8mm)
Antenna 3 Omni-directional Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE
802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 300Mbps at 2.4GHz, 433Mbps at 5GHz
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -78dBm
11ac HT20 MCS0: -94dBm, MCS8: -73dBm
11ac HT40 MCS0: -91dBm, MCS9: -65dBm
11ac HT80 MCS0: -88dBm, MCS9: -62dBm
2.4GHz:
11g 54Mbps: -78dBm, 11n HT20: -75dBm
11n HT40: -73dBm
Transmit Power CE: Wireless Functions WMM, Short GI, High Speed, WPS
Wireless Security WEP, WPA/WPA2-PSK encryptions
Transmission Power CE: OTHERS
Certification CE, RoHS

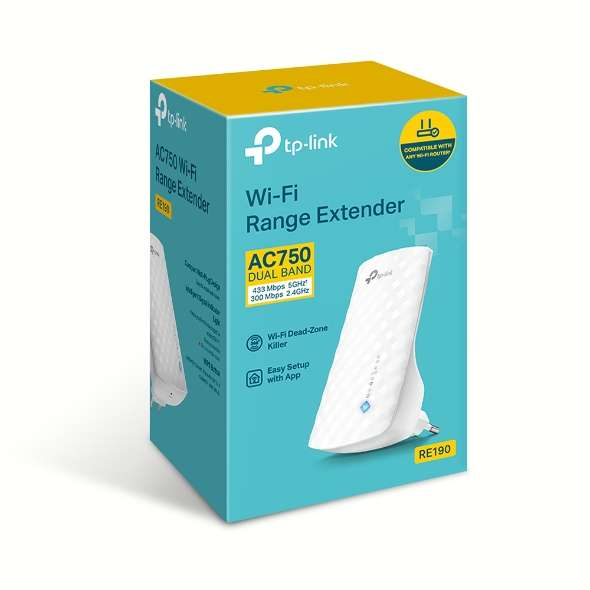

Package Contents Range Extender RE190
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari
4.0, or other Java-enabled browser
Environment Operating Temperature: 0°C ~ +40°C
Storage Temperature: -40°C ~ +70°C
Operating Humidity: 10% ~ 90%RH
Storage Humidity: 5% ~ 90%RH
