Tp-Link RE300 AC1200 Wireless Range Extender Mesh Wifi - One Mesh

Item is brand new and sealed

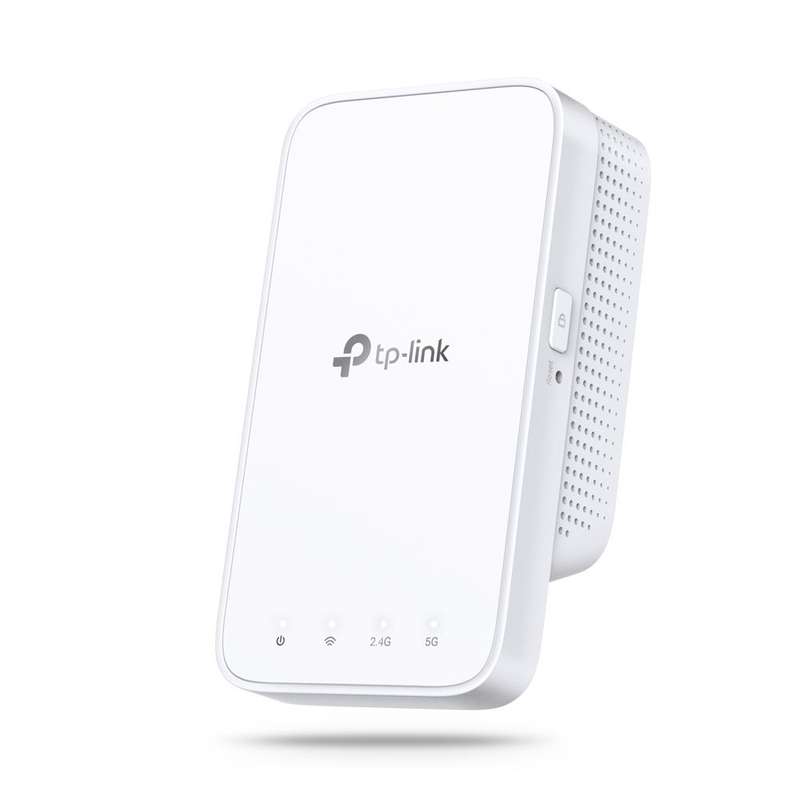

AC1200 Mesh Wi-Fi Range Extender

RE300

Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones.

Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.

Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps) for more stable wireless experience.

Smart signal indicator helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength.

Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI.

Works with any Wi-Fi router or wireless access point.

Specifications

Hardware Features

Plug Type: EU, UK, US, AU

Standards and Protocols : IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b

Button: WPS Button, Reset Button

Power Consumption: 7.3W?max power consumption?

Dimensions ( W x D x H ) : 4.9 x 2.7 x 2.0 in (124 x 69 x 52 mm)

Wireless Features

Frequency : 2.4GHz & 5GHz(11ac)

Signal Rate :

5 GHz: Up to 867 Mbps

2.4 GHz: Up to 300 Mbps

Reception Sensitivity :

5GHz?

11a 6Mbps:-91dBm@10% PER

11a 54Mbps: -74dBm@10% PER

11ac HT20 mcs8: -68dBm@10% PER

11ac HT40 mcs9: -63dBm@10% PER

11ac HT80 mcs9: -59dBm@10% PER

2.4GHz

11g 54M: -79dBm@10% PER

11n HT20 mcs7: -77dBm@10% PER

11n HT40 mcs7: -74dBm@10% PER

Wireless Functions:

Wireless Statistic

Concurrent Mode boost both 2.4G/5G Wi-Fi band

Access Control

LED Control

Domain Login Function

Wireless Security:

64/128-bit WEP

WPA-PSK / WPA2-PSK

Transmission Power:

Others

Certification : CE, FCC, RoHS

Enviroment :

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

What's in the box

AC1200 OneMesh Wi-Fi Range Extender RE300

Quick Installation Guide
