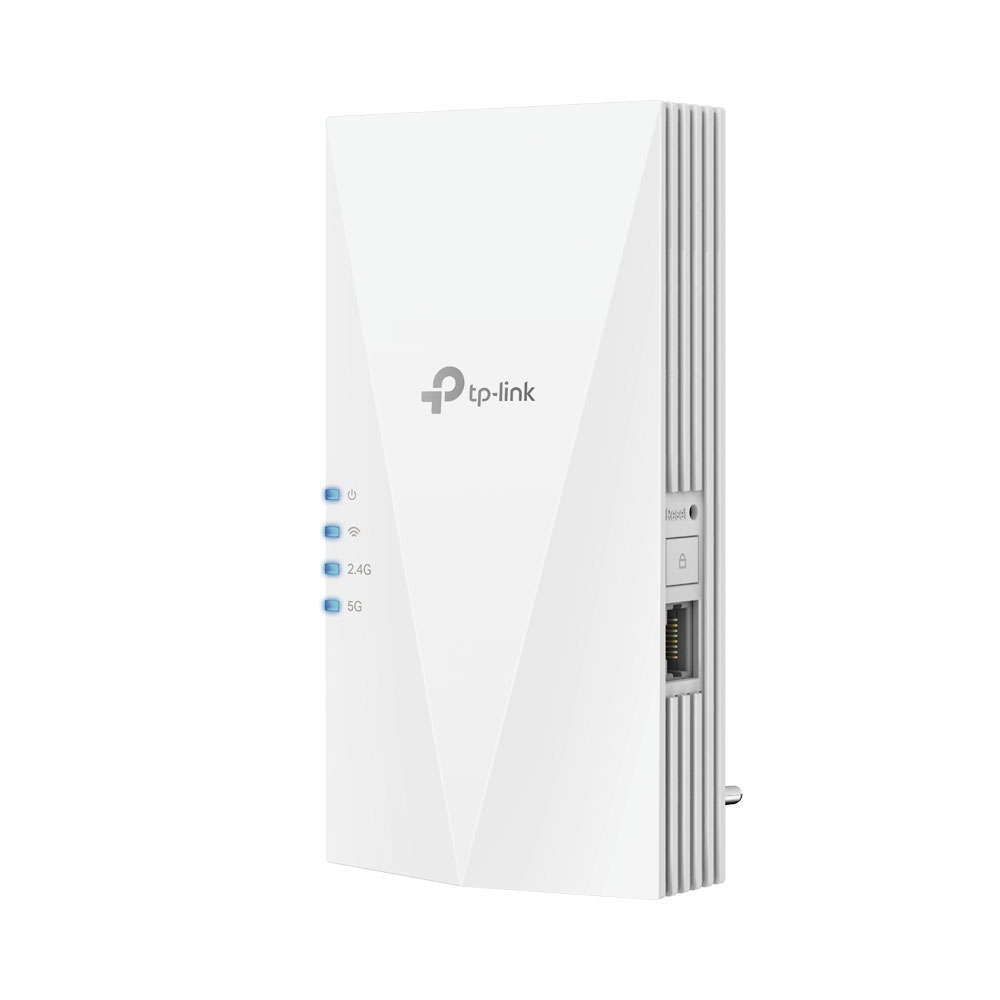

TP-Link RE500X | AX1500 Wi-Fi 6 Range Extender
Eliminate Dead Zones with Powerful Wi-Fi
FEATURES:
SPECIFICATIONS:
WIRELESS | |
Working Modes | Range Extender/Access Point |
HARDWARE FEATURES | |
Ports | 1× Gigabit Ethernet Port |
Button | WPS Button, Reset Button |
Input Power | 100-240V~50/60Hz |
Power Consumption | 10W |
Dimensions (W × D × H) | 78 × 36 × 149mm |
Antenna | 2× Internal Antennas |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11a/n/ac/ax 5.0GHz, IEEE 802.11b/g/n 2.4GHz |
Frequency | 2.4GHz and 5.0GHz |
Signal Rate | 300Mbps at 2.4GHz, 1200Mbps at 5.0GHz |
Working Modes | Range Extender/Access Point |
Reception Sensitivity | 5.0GHz: |
11a 6Mbps: -93dBm | |
11a 54Mbps: -75dBm | |
11ac HT20 MCS0: -92dBm | |
11ac HT20 MCS8: -70dBm | |
11ac HT40 MCS0: -90dBm | |
11ac HT40 MCS9: -66dBm | |
11ac HT80 MCS0: -87dBm | |
11ac HT80 MCS9: -62dBm | |
2.4GHz: | |
11g 54Mbps: -77dBm | |
11n HT20 MCS7: -75dBm | |
11n HT40 MCS7: -72dBm | |
Wireless Functions | Enable/Disable Wireless Radio |
DFS (the latest firmware and hardware version is required) | |
Access Control | |
LED Control | |
Power Schedule | |
Wi-Fi Coverage | |
Wireless Security | 64/128-bit WEP, WPA/WPA-PSK2 encryptions |
Transmission Power | CE: 2.4GHz 20dBm, 5.0GHz 30dBm |
OTHERS | |
Certification | FCC, RoHS |
Package Contents | Wi-Fi Range Extender RE500X |
Quick Installation Guide | |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser | |
Environment | Operating Temperature: 0°C~40°C |
Storage Temperature: -40°C~70°C | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing |
