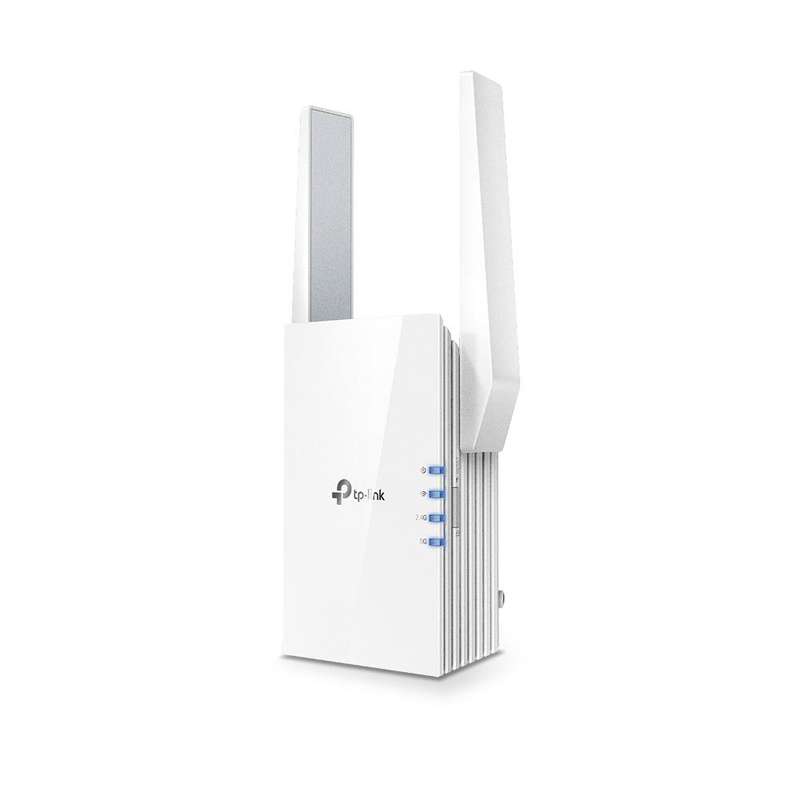

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender

AX1500 Wi-Fi Range Extender - Wi-Fi 6
RE505X
Works with any Wi-Fi router to eliminate Wi-Fi dead zones, and blanket your home with stable, super-fast, seamless Wi-Fi via OneMesh

Key Features
RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
Gigabit Ethernet Port - Provide faster-wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode - create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App - Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point

Expand Coverage of the Fastest Next-Gen Wi-Fi
AX1500 Range Extender
RE505X

Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.

Fill Every Inch of Your Home with Wi-Fi 6
The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.

Dual Band, More Benefits
Adaptive Path Selection
Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.

High Speed Mode
Use both Wi-Fi bands to enjoy super-fast connections -ideal for HD streaming and gaming.

Built-In Access Point Mode
RE505X is more than just a wireless range extender.
Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.

TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.

Ease of Use
Intuitive Web UI- Ensures quick and simple installation without hassle
Fast Encryption - One-touch WPA wireless security encryption with the WPS button
Hassle-free Management with Tether App - The network management is easy with the TP-Link Tether App, available on any Android or iOS device
Online Upgrade - Keeps you informed of the latest firmware and allows online updating on the web UI

Speed
Ultimate Wireless Speed - Combined wireless speeds of up to 300 Mbps (over 2.4 GHz) and 1200 Mbps (over 5 GHz)
Support Wi-Fi 6 - Turbocharge your devices with wireless speeds of up to 1.5 Gbps
Adaptive Path Selection - Keep your network running at top-speed by automatically choosing the fastest connection path to the router

Reliability
Simultaneous Dual Band - Separate Wi-Fi bands enable more devices to connect to your network without a drop in performance
Reliable Connection - Internal antennas for optimal Wi-Fi coverage and reliable wireless connections
Ultra-Low Latency - Take advantage of ultra-low latency to enjoy smoother online experience

Specification
Hardware Features
Ports : 1 Gigabit Ethernet Port
Button : WPS Button, Reset Button
Power Consumption : 10W
Dimensions ( W x D x H ) : 2.9 1.8 4.9 in. (74.0 46 124.8 mm)
Antenna : 2 External Antennas

Wireless Features
Wireless Standards : IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency : 2.4GHz and 5GHz
Signal Rate : 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz

Reception Sensitivity
5GHz:

11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm

Transmit Power : CE: 2.4GHz ?20dBm, 5GHz ?30dBm
Wireless Functions : Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security : 64/128-bit WEP, WPA/WPA-PSK2 encryptions

Others
System Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications : FCC, RoHS

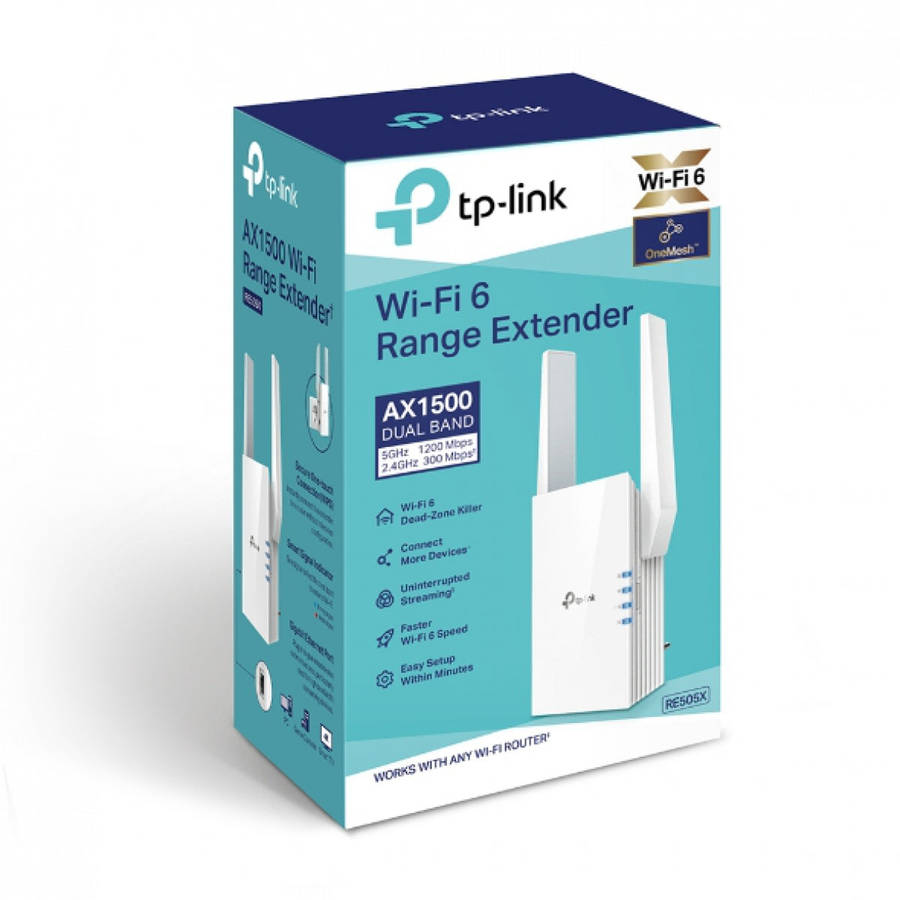

What's in the box
Wi-Fi Range Extender RE505X
Quick Installation Guide
