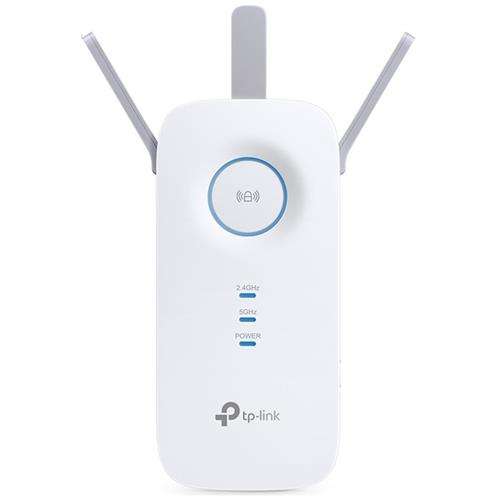

The TP-Link RE550 AC1900 Wi-Fi Range Extender expands your Wi-Fi coverage by up to 1,115 m² (12,000 sq. ft.) with dual-band speeds of 600 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz. Its EasyMesh compatibility allows for seamless integration into a whole-home mesh network, while three adjustable antennas ensure optimal signal strength and coverage. With a Gigabit Ethernet port for wired connections and the TP-Link Tether app for easy management, it enhances your existing Wi-Fi network effortlessly.
r
r
Product Overview
r
A single router has limited Wi-Fi coverage and always causes Wi-Fi dead zones. RE550 wirelessly connects to your existing router and expands its Wi-Fi signal into areas it can't reach on its own. Enjoy your stable network experience wherever you are at home.
r
r
Specifications
r
Product Code: RE550
Description: TP-Link RE550 AC1900 WiFi Range Extender
r
Hardware Features
Plug Type: EU
Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface : 1 x 10/100/1000M Ethernet Port (RJ45)
Button: WPS Button, Reset Button, LED Button, Power Button
Power Consumption: 10W (max power consumption)
Antenna: 3 x external
r
Wireless Features
Frequency: 2.4GHz & 5GHz (11ac)
Signal Rate:
5GHz: Up to 1300Mbps
2.4GHz: Up to 600Mpbs
Reception Sensitivity:
5GHz:
11a 6Mbps:-93dBm@10% PER
11a 54Mbps: -76dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -64dBm@10% PER
11ac HT80 mcs9: -61dBm@10% PER
2.4GHz:
11g 54M: -77dBm@10% PER
11n HT20 mcs7: -73dBm@10% PER
c 11n HT40 mcs7: -70dBm@10% PER
Wireless Modes: Range Extender/Access Point
Wireless Functions: Wireless Statistic
Concurrent Mode Boost Both 2.4G/5G Wi-Fi Band
Access Control
LED Control
Domain Login Function
Wi-Fi Coverage
Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK
Transmission Power: <20dBm (2.4GHz); <23dBm (5GHz)
r
Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux
Environment:
Operating Temperature: 0 degree Celsius ~ 30 degree Celsius
Storage Temperature: -40 degree Celsius ~ 70 degree Celsius
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
